Recursive InterNetwork Architecture An Assessment of the IRATI - PowerPoint PPT Presentation

Feb 11, 2024 •416 likes •656 views

Recursive InterNetwork Architecture An Assessment of the IRATI Implementation Jeroen van Leur Jeroen Klomp University of Amsterdam System and Network Engineering February 1, 2016 Introduction Implementations Scenario 1 Scenario 2

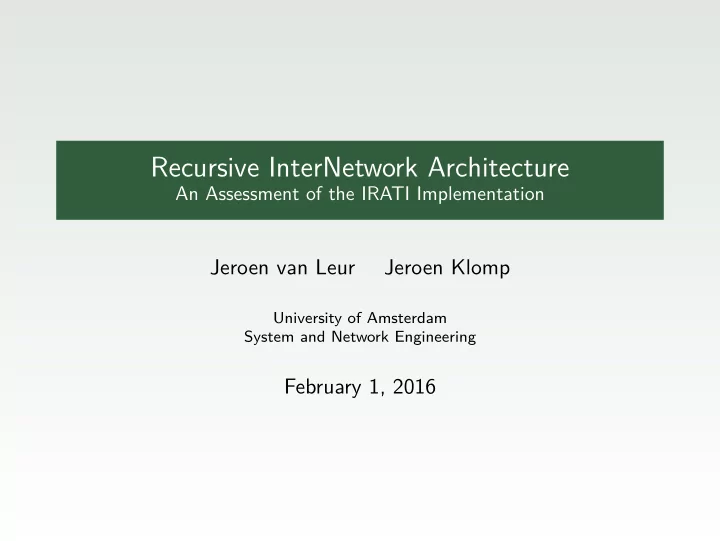

  1. Recursive InterNetwork Architecture An Assessment of the IRATI Implementation Jeroen van Leur Jeroen Klomp University of Amsterdam System and Network Engineering February 1, 2016

  2. Introduction Implementations Scenario 1 Scenario 2 Conclusion Research goals Research question What is the current state of the IRATI RINA implementation? • Find out which Recursive InterNetwork Architecture (RINA) implementations exist • Find out their differences • Find out how an experimental network needs to be set up • Find out how resilient the routing in a small network is Jeroen van Leur, Jeroen Klomp 1/20 RINA

  3. Introduction Implementations Scenario 1 Scenario 2 Conclusion Problems with TCP/IP • Mobility not straightforward • Multihoming does not scale • Multicast does not scale • Quality of Service does not scale • Many security issues Jeroen van Leur, Jeroen Klomp 2/20 RINA

  4. Introduction Implementations Scenario 1 Scenario 2 Conclusion What causes these problems? • TCP/IP has an incomplete addressing scheme • Applications are not named • IP addresses name the interface, not the node • Point of attachment (link-layer) addresses are in concept the same as IP addresses • No integrated security Jeroen van Leur, Jeroen Klomp 3/20 RINA

  5. Introduction Implementations Scenario 1 Scenario 2 Conclusion What is wrong with the layers? • Layers not properly defined and inflexible Figure: TCP/IP model?! 1 1 (Veselý, Marek, Hykel, & Ryšavý, 2015) Jeroen van Leur, Jeroen Klomp 4/20 RINA

  6. Introduction Implementations Scenario 1 Scenario 2 Conclusion Layers in RINA "The Internet is an unfinished demo" — John Day (2008) Figure: RINA’s recursive layered approach 2 2 (Veselý et al., 2015) Jeroen van Leur, Jeroen Klomp 5/20 RINA

  7. Introduction Implementations Scenario 1 Scenario 2 Conclusion RINA concepts Figure: RINA layers and components 3 3 Based on (Grasa et al., 2011) Jeroen van Leur, Jeroen Klomp 6/20 RINA

  8. Introduction Implementations Scenario 1 Scenario 2 Conclusion Communication in RINA Figure: RINA directory, routes and paths 4 4 based on (Grasa et al., 2011) Jeroen van Leur, Jeroen Klomp 7/20 RINA

  9. Introduction Implementations Scenario 1 Scenario 2 Conclusion RINA protocols • Only two protocols • Error and Flow Control Protocol • Provides both unreliable (DTP) 5 and reliable (DTCP) 6 flows • No need for handshakes • Flows distinguished by Connection-ID • Common Distributed Application Protocol • Object-based communication • Only six primitive operations: Create/Delete, Read/Write, Start/Stop 5 Data Transfer Protocol 6 Data Transfer Control Protocol Jeroen van Leur, Jeroen Klomp 8/20 RINA

  10. Introduction Implementations Scenario 1 Scenario 2 Conclusion Implementations Figure: PSOC overviewed RINA implementations 7 7 Adapted from (Grasa, 2015) Jeroen van Leur, Jeroen Klomp 9/20 RINA

  11. Introduction Implementations Scenario 1 Scenario 2 Conclusion IRATI • Multiple shim Distributed IPC Facilities (DIFs) • UDP/IP • Ethernet via 802.1Q • Hypervisor to guest • Dummy shim for debugging • Routing • Intermediate System-to-Intermediate System (IS-IS) • IP Fast Reroute (IPFRR) • Optional multipath routing with equal-cost multipath routing (ECMP) plugin Jeroen van Leur, Jeroen Klomp 10/20 RINA

  12. Introduction Implementations Scenario 1 Scenario 2 Conclusion Design Figure: Physical network design Figure: Logical network design Jeroen van Leur, Jeroen Klomp 11/20 RINA

  13. Introduction Implementations Scenario 1 Scenario 2 Conclusion Basic tests • IRATI stack • Initialisation • Enrolling to DIF • Connectivity test • Behaviour of flow • Monitoring the connectivity • Performance test Jeroen van Leur, Jeroen Klomp 12/20 RINA

  14. Introduction Implementations Scenario 1 Scenario 2 Conclusion Results • Susceptible to configuration errors • Debugging options: high I/O and impact CPU • Tooling results: • Echo tool shows response round-trip time (RTT) less than 1 ms. • Wireshark showed src/dst address correctly after patching • Performance tests results from 400 Mbit/sec to 15 Gbit/sec Figure: Wrong address Figure: Correct address Jeroen van Leur, Jeroen Klomp 13/20 RINA

  15. Introduction Implementations Scenario 1 Scenario 2 Conclusion Physical design Jeroen van Leur, Jeroen Klomp 14/20 RINA

  16. Introduction Implementations Scenario 1 Scenario 2 Conclusion Logical design Jeroen van Leur, Jeroen Klomp 15/20 RINA

  17. Introduction Implementations Scenario 1 Scenario 2 Conclusion Routing tests • Configuration • Enrolling to the DIFs • Changes in the tools • Resilience tests • Disconnecting links • Connectivity test • Multipath plugin • Performance test Jeroen van Leur, Jeroen Klomp 16/20 RINA

  18. Introduction Implementations Scenario 1 Scenario 2 Conclusion Results • Manual configuration of all systems • Routing information in resource information base (RIB) • Next Hops • Underlying DIF • All neighbours • Network updates are propagated Next hops Name: /resalloc/nhopt/key=16-0; Class: NextHopTableEntry; Instance: 47 Value: Destination address: 16; QoS-id: 0; Cost: 1; Next hop addresses: 17 / Name: /resalloc/nhopt/key=17-0; Class: NextHopTableEntry; Instance: 48 Value: Destination address: 17; QoS-id: 0; Cost: 1; Next hop addresses: 17 / Name: /resalloc/nhopt/key=18-0; Class: NextHopTableEntry; Instance: 49 Value: Destination address: 18; QoS-id: 0; Cost: 1; Next hop addresses: 18 / Jeroen van Leur, Jeroen Klomp 17/20 RINA

  19. Introduction Implementations Scenario 1 Scenario 2 Conclusion Routing Resiliency • System 1 - System 2 disconnected • No re-routing possible for existing and new flows • Multipath plugin • Multiple paths in Wireshark • Next hops change in RIB • Lacks link failure resiliency Multipath next hops Name: /resalloc/nhopt/key=16-0; Class: NextHopTableEntry; Instance: 47 Value: Destination address: 16; QoS-id: 0; Cost: 1; Next hop addresses: 17/ Name: /resalloc/nhopt/key=17-0; Class: NextHopTableEntry; Instance: 48 Value: Destination address: 17; QoS-id: 0; Cost: 1; Next hop addresses: 18/ Name: /resalloc/nhopt/key=18-0; Class: NextHopTableEntry; Instance: 49 Value: Destination address: 18; QoS-id: 0; Cost: 1; Next hop addresses: 17/ 18 Jeroen van Leur, Jeroen Klomp 18/20 RINA

  20. Introduction Implementations Scenario 1 Scenario 2 Conclusion Conclusion • IRATI is still in an experimental phase • Routing was not resilient • Using IRATI requires Unix background and programming skills to debug issues • Ongoing progress: • Future projects will enhance IRATI • New ProtoRINA release this year • Active improvement of the RINA reference model Jeroen van Leur, Jeroen Klomp 19/20 RINA

  21. Introduction Implementations Scenario 1 Scenario 2 Conclusion Any questions? Jeroen van Leur, Jeroen Klomp 20/20 RINA

  22. References References Grasa, E. (2015, October). Rina essentials. NEXTWORKS, PRISTINE, and University of Pisa. Retrieved January 27, 2016, from http://ict-pristine.eu/wp- content/uploads/2015/11/IF2015-SDN-NFV-RINA- 04_RINA-essentials.pdf Grasa, E., Trouva, E., Phelan, P., de Leon, M. P., Day, J., Matta, I., . . . Bunch, S. (2011). Design principles of the recursive internetwork architecture (RINA). Retrieved January 29, 2016, from http://www.future- internet.eu/fileadmin/documents/fiarch23may2011/06- Grasa_ DesignPrinciplesOTheRecursiveInterNetworkArchitecture. pdf Jeroen van Leur, Jeroen Klomp 20/20 RINA

  23. References References Veselý, V., Marek, M., Hykel, T., & Ryšavý, O. (2015). Rinasim: your recursive internetwork architecture simulator. September 3, 2015 (7). Omnet++ community summit 2015. Zurich. Retrieved January 6, 2016, from https://summit.omnetpp.org/archive/2015/#keynotes Jeroen van Leur, Jeroen Klomp 20/20 RINA
