Rapid Hybrid Tooling based on CNC- and EDM-Milling to fabricate - PowerPoint PPT Presentation

Department of Microsystems Engineering Rapid Hybrid Tooling based on CNC- and EDM-Milling to fabricate Lab-on-a-Chip Systems T. Hsel 1 , R. Jurischka 1 , A. Schoth 1 , C. Baggi 2 , R. Gallera 2 , C. Mller 1 , H. Reinecke 1 1 Department of

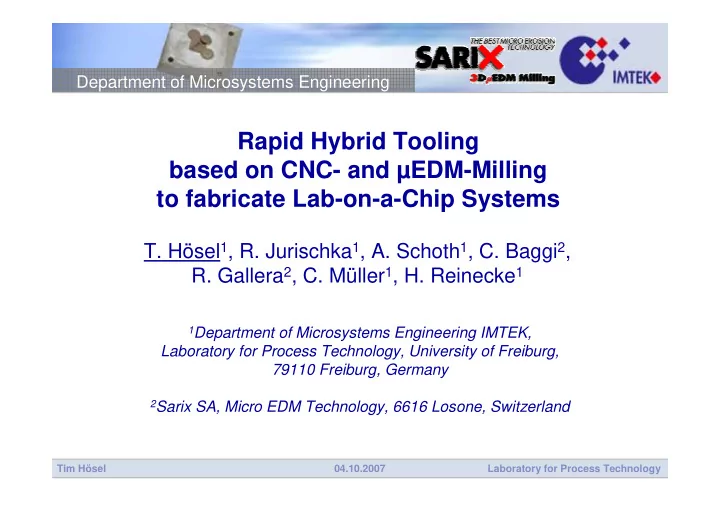

  1. Department of Microsystems Engineering Rapid Hybrid Tooling based on CNC- and µEDM-Milling to fabricate Lab-on-a-Chip Systems T. Hösel 1 , R. Jurischka 1 , A. Schoth 1 , C. Baggi 2 , R. Gallera 2 , C. Müller 1 , H. Reinecke 1 1 Department of Microsystems Engineering IMTEK, Laboratory for Process Technology, University of Freiburg, 79110 Freiburg, Germany 2 Sarix SA, Micro EDM Technology, 6616 Losone, Switzerland Tim Hösel 04.10.2007 Laboratory for Process Technology

  2. Outline � Motivation � Requirements for Tools and Tooling Technologies � Tooling Technologies � Hybrid Tooling � Summary Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  3. Motivation � Requirements � Micro fluidic devices combined with macroscopic reservoirs � Polymer based � High accuracy � Fabrication � Fast development of prototypes and small series fabrication � Low cost products and disposables � Cost effective and fast Tooling Technology for polymer replication Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  4. Requirements � Requirements for Tools � Made of hard metals, e.g. tool steel � Chemical resistance � High durability � Low wear � High strength Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  5. Requirements � Requirements for Tooling Technologies � Fabrication of macro structures • CNC-Milling: fast, precise, direct 3D-structuring • EDM-Sinking: fast, batch, electrode wear above 3% � Fabrication of micro structures • ECM: precise, complex process technology • µEDM-Milling: high accuracy, direct 3D-structuring Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  6. µEDM-Milling Machining � Cooperation with Sarix SA, Switzerland � Work table size: 750 x 300 mm 2 � Travel Z axis: 200 mm � Precision of positioning: ± 2 µm � Resolution: 0.1 µm � Micro fine pulse shape generator � Integrated wire electric discharge grinding unit to grind electrodes SARIX SX200 µEDM milling machine down to a diameter of 5 µm Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  7. µEDM-Milling Machining � Wire Electric Discharge Grinding Unit C axis � Integrated laser measuring system � Electrode measurement accuracy: ± 0.15 µm Z axis � Automatic electrode G u i Wire d e Winding profile control Guide � µEDM electrodes shaping with C axis Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  8. Tooling Technologies � CNC-Milling � µEDM-Milling � 3D machining � 3D machining � One step structuring of steel � One step structuring of steel � Aspect ratio: 10 - 100 � No process forces � High removal rate � Min. structures down to 15 µm � Surface roughness � � Min. structures above 100 µm Aspect ratio: up to 10 � � Burrs Low removal rate � No single Tooling Technology for mould inserts with macro AND micro structures Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  9. Hybrid Tooling � Combination of Tooling Technologies � Tooling Technology for mould inserts with micro and macro structures � Reduction of process time � High achievable quality � High accuracy � High reproducibility Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  10. Hybrid Tooling - Process flow � Step 1: CNC-Milling � Step 2: µEDM-Milling � Macro structures � Micro structures � Surface finishing Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  11. Hybrid Tooling - Typical values height 800 µm Macro taper angle 5 ° structures roughness Ra 70 nm height 100 µm taper angle 0.8 ° Micro structures roughness Ra 70 nm Detail of mould insert (SEM) min. width 18 µm CNC-milling 3 h Process µEDM-milling 17 h times total 20 h � No burrs � High accuracy � Smooth sidewalls Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  12. Hybrid Tooling - Replication � Moulding in COC � Microstructures with high aspect ratio ~ 6 � Tested up to 8000 cycles � Typical process time for IM = 35 s Detail of moulding (SEM) Cross section of micro channels Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  13. Summary � Hybrid Tooling for Prototyping and Mass Fabrication � Rapid and direct structuring of tool steel � Mould inserts with micro and macro structures without burrs and with high surface quality � Prototype and final product with same properties � Rapid design cycles leads to reduction of development time Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology

  14. Thank you Thank you for your attention! Tim Hösel 04.10.2007 IMTEK – Laboratory for Process Technology
