RadiusPlus Ltd Minimuss Large Diameter Branch Saddle Connections For - PowerPoint PPT Presentation

Jun 07, 2023 •42 likes •232 views

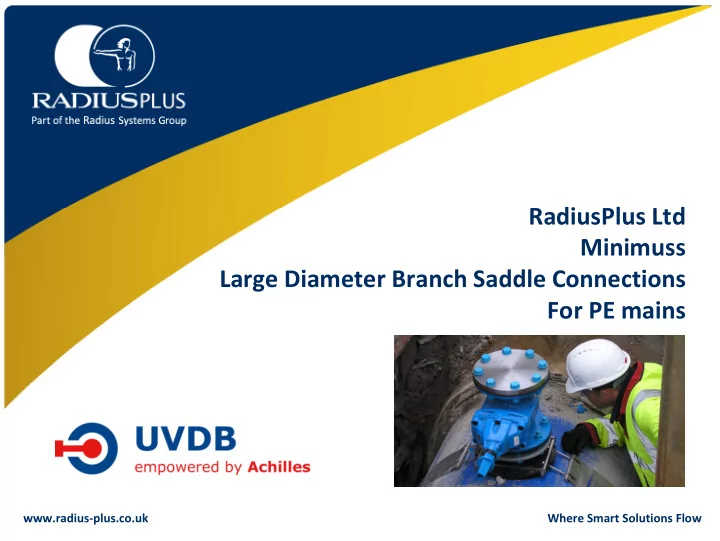

RadiusPlus Ltd Minimuss Large Diameter Branch Saddle Connections For PE mains www.radius plus.co.uk Where Smart Solutions Flow Under Pressure Connections Up to 1200mm OD Up to 300mm NP16 www.radius plus.co.uk 2 Where Smart Solutions Flow

  1. RadiusPlus Ltd Minimuss Large Diameter Branch Saddle Connections For PE mains www.radius ‐ plus.co.uk Where Smart Solutions Flow

  2. Under Pressure Connections Up to 1200mm OD Up to 300mm NP16 www.radius ‐ plus.co.uk 2 Where Smart Solutions Flow

  3. Service throughout the UK Site teams and engineers based in • Livingston, West Lothian • Newton Aycliffe, County Durham • Hilcote, Derbyshire (HQ) • Bexleyheath, Kent • Lurgan, County Antrim www.radius ‐ plus.co.uk 3 Where Smart Solutions Flow

  4. Butt Weld Jointing of Long Lengths www.radius ‐ plus.co.uk 4 Where Smart Solutions Flow

  5. Cut in connection on 1000mm PE Water Main? www.radius ‐ plus.co.uk 5 Where Smart Solutions Flow

  6. Typical Costs Associated with Cut Out 2 x Viking Johnson Couplers • 1 x Ductile or Steel Tee • 2 x 1000mm Nuts Bolts washers and • Gasket sets 2 x Taper Reducers complete with Nuts • Bolts Washers and Gaskets 3 x People for 2 days installation • 1 x Crane and other plant to install pipe • work NOT TO MENTION DRAINDOWN!! Total cost around £25,000.00 • www.radius ‐ plus.co.uk 6 Where Smart Solutions Flow

  7. Advantages of a PE System • Why do we connect air valves using 80mm NP16 connections? • The option of retrofitting branch saddles using an approved procedure means that the use of flange joints can be minimised as an all flanged tee and flange assemblies are not required at the air valve and wash out positions • All connections are fully pressure tested before been drilled and come with a full report www.radius ‐ plus.co.uk 7 Where Smart Solutions Flow

  8. A reminder of the 1000mm connection www.radius ‐ plus.co.uk 8 Where Smart Solutions Flow

  9. The Same 1000mm x 150mm Connection www.radius ‐ plus.co.uk 9 Where Smart Solutions Flow

  10. 800mm PE Main x 150mm NP16 for Air Valve PRESSURE GAUGE www.radius ‐ plus.co.uk 10 Where Smart Solutions Flow

  11. 300mm NP16 Outlet – Flowstop larger mains www.radius ‐ plus.co.uk 11 Where Smart Solutions Flow

  12. Bespoke Branch Saddles for Large Diameter and Non Standard Pipe 355mm to 1200mm OD Solid piece construction Outlets 150mm NP16 250mm NP16 300mm NP16 www.radius ‐ plus.co.uk 12 Where Smart Solutions Flow

  13. The latest manufacturing equipment www.radius ‐ plus.co.uk 13 Where Smart Solutions Flow

  14. Exact Pipe Profile www.radius ‐ plus.co.uk 14 Where Smart Solutions Flow

  15. Vyrnwy Aqueduct Scheme The Water scheme has Twin 39” mains will be renovated with new polyethylene pipes Water Specified replacements are 1030 SDR 51 PE100 • Wall thickness 20.2mm • Water industry pressure rating 3.2 bar www.radius ‐ plus.co.uk 15 Where Smart Solutions Flow

  16. Innovative outputs Meeting the original brief of welding in a confined space www.radius ‐ plus.co.uk 16 Where Smart Solutions Flow

  17. Size range available www.radius ‐ plus.co.uk 17 Where Smart Solutions Flow

  18. Certification & Site Records All Branch Saddle joints are done using A Fusion Q Box with Red Box technology To capture all the critical data GPS Location Saddle Size Pipe Type and information Valve ID number Clamp Pressure Pressure Test EF Joint Record Jointmanager captures this data for Immediate verification www.radius ‐ plus.co.uk 18 Where Smart Solutions Flow

  19. Please visit our stand to find out more details Thank You Dave Macdonald 07584 212178 www.radius ‐ plus.co.uk 19 Where Smart Solutions Flow
