Presented By: Tim McLaughlin, Director of Business Development - Engnuity and Richard Theron, Product Manager FieldServer Agenda: Introduction Who is Engenuity? Who is FieldServer? Identifying protocol integration

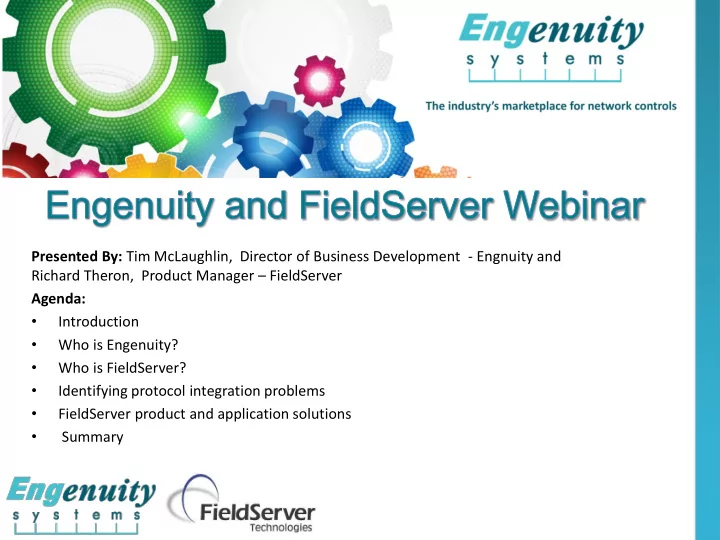

  1. Presented By: Tim McLaughlin, Director of Business Development - Engnuity and Richard Theron, Product Manager – FieldServer Agenda: • Introduction • Who is Engenuity? • Who is FieldServer? • Identifying protocol integration problems • FieldServer product and application solutions • Summary

  2. Engenuity Systems Inc. For 20 years Engenuity Systems Inc. has been dedicated to helping customers reach business and technology goals by partnering with them to provide the right solutions, resources, and technology for the controls automation industry. We have partnered with FieldServer Technologies to help you meet your network integration needs.

  3. Distribution: Dataloggers, analytical software, gateways, lighting controls, HVAC controls, repeaters & routers, sensors, enclosures, weather stations and more! Custom Design & Integration: 7 certified LonMark professionals on staff collaboration on standards for design & UL standards , testing & configuration service - database support, creation and loading.

  4. Value Adding Services: ✓ Product enhancements and upgrades ✓ UL Certification, packaging and testing ✓ Programming services for standard ✓ Visual inspection and electrical testing ✓ Rapid prototype shop and warehouse products ✓ Pre-loading and imaging of devices capabilities ✓ Panelization services using standard components and off-the-shelf products

  5. FieldServer designs and markets a broad line of devices that enhance communication between various instruments, systems, machines and other devices that utilize non-compatible data protocols. The extensive driver library makes the perfect package to achieve interoperability. The primary purpose of FieldServer products is to allow communications Certifications: over Ethernet (IP) with delivery to client devices in a format which is immediately useful to the client device. Ethernet drivers include Modbus TCP, BACnet Ethernet, EtherNet/IP, BACnet IP, Allen Bradley CSP, and more

  6. Problems: Devices cannot communicate due different protocols. Hardware commonly has unique methods of translation. Older infrastructure may only have one protocol language. Solution: Combining Interoperability technology that provides network integration, numerous protocol options, and up to 10,000 points. Results: Efficient building and plant operation, while conserving resources, maximizing returns on assets, and saving energy.

  7. • Provides interoperability from devices to enterprise networks • Highly specialized software optimized for communication • Enables integration of protocols and standards • Delivered on a scalable hardware platform • Strong adoption for building and energy applications • Interfaces with automation and process control systems

  8. FieldServer “speaks” more than 100 protocols unlocking information from valuable devices and assets!

  9. • Chiller and Air Handling • Boiler Controls • Lighting • Data Center • Generator/UPS • Battery Room • Security • Fire Panels • Life Safety • Process Controls

  10. • Cost affective solution • Ability to interface up to 500 points of protocols • Multi-configuration capability; specific configurations selectable via DIP switches or software • Flat panel mount standard, DIN rail mount option • DIP switches to select baud rate or node ID on the fly • KNX and M-Bus versions available • LonMark Certified and BTL Marked

  11. • Ability to interface up to 10,000 points of protocols • Multiple ports including two 100 BaseT Ethernet, two RS-485 and two RS-232 serial ports, LonWorks port and optional ports for PROFIBUS, DeviceNet, ControlNet and more • DIN rail or surface mount • Memory utilization monitoring and improved performance under high-load operation • USB Port • LonMark Certified, BTL Marked

  12. BACnet Router - Application Highlights • BTL pending • Lowest cost per node • Single page configuration The FieldServer BACnet Router can have With BBMD the FieldServer BACnet Router can move data from the RS-485 trunk up to 32 devices per RS-485 port, with two RS-485 ports 64 devices can be connected through Firewalls and different subnets to the BACnet Client without the use of a line driver

  13. BACnet Router - Features Multiple BACnet Routing Connections ➢ BACnet/IP & BACnet MS/TP ➢ BACnet MS/TP & BACnet Ethernet ➢ BACnet MS/TP & BACnet MS/TP ➢ BACnet/IP & BACnet/IP ➢ BACnet/IP & BACnet Ethernet Ease of Use ➢ Web Based configuration – one simplistic page ➢ NAT support with secondary BACnet/IP connection for routing between public and private IP networks ➢ Foreign Device Registration (FDR) ➢ BACnet Broadcast Management Device (BBMD) for a connection between different subnets Ease of Installation ➢ MDIX to use any Ethernet cable for commissioning & installation ➢ DHCP to automatically obtain IP setting from the network ➢ ToolBox to find and diagnose Routers on your network ➢ Wide range of input power requirements AC or DC

  14. Connecting the following from FiledServer to the Cloud

  15. • Ease of use • Installation time minimized • Predefined points list • Virtual nodes ➢ BACnet/IP ➢ BACnet MS/TP ➢ Modbus RTU ➢ Modbus TCP/IP ➢ Metasys N2

  16. • DCC, protocol, kernel versions • Web Interface • Profiles • Diagnostics • Device testing • Connection status • Error log • Passwords

  17. • Diagnostic Capture • Set IP for Local network • Download files • Set Time • Find you FieldServer

  18. • 1 st Priority is to measure • Analysis • New Policies & responsibilities • Variables ➢ Domestic Water ➢ Chilled Water ➢ Electricity ➢ Steam

  19. • Tertiary monitoring • Get the data into a common front end – Alarm – Trouble – Status • Regulatory – UL 864

  20. • Generators • UPS • HVAC • Battery Monitoring • Temperature & Humidity

  21. • Penetration Testing – Open ports – Password protection • SSL & TLS • Military – FIPS 140-2 • Federal Information Processing Standard

  22. Visit our eStore to shop for 20,000+ products! You may also need: Power Supplies, Enclosures, Terminators, Controllers, Terminal Blocks

  23. • Q & A’s? • FREE SHIPPING on gateways until January 31 st , 2015 • Click here to redeem your this offer A sales representative will ensure the hardware comes with the drivers you need • Order Online or call 800.375.3363 • * Offers apply to webinar attendees only
