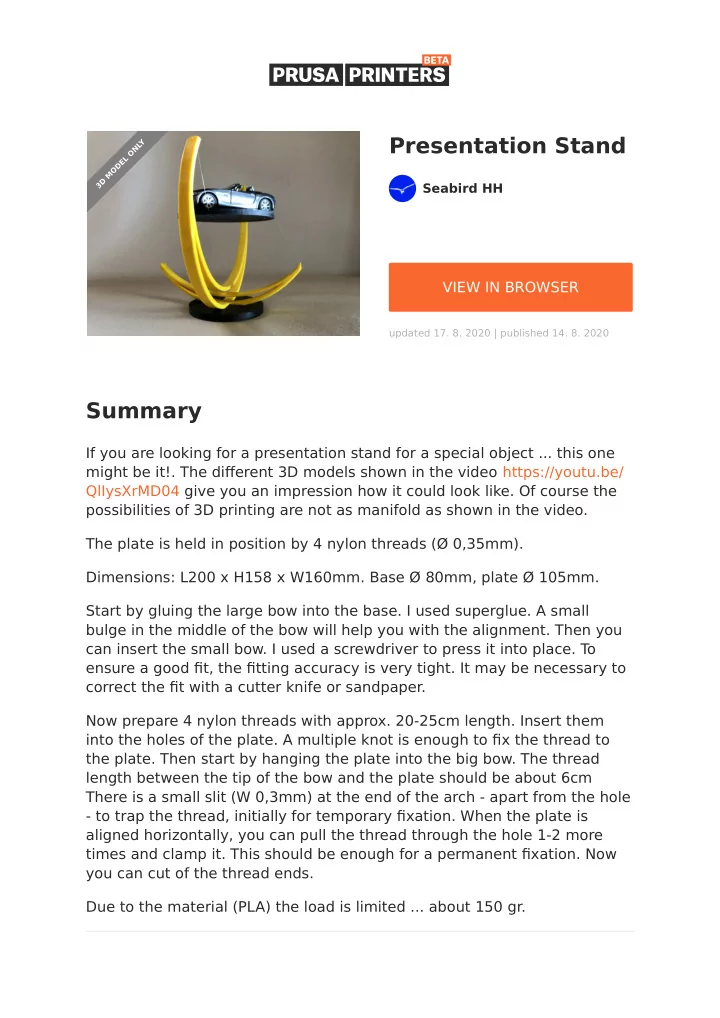

Presentation Stand Y L N O L E D O M D 3 Seabird HH VIEW IN BROWSER updated 17. 8. 2020 | published 14. 8. 2020 Summary If you are looking for a presentation stand for a special object ... this one might be it!. The di ff erent 3D models shown in the video https://youtu.be/ QlIysXrMD04 give you an impression how it could look like. Of course the possibilities of 3D printing are not as manifold as shown in the video. The plate is held in position by 4 nylon threads (Ø 0,35mm). Dimensions: L200 x H158 x W160mm. Base Ø 80mm, plate Ø 105mm. Start by gluing the large bow into the base. I used superglue. A small bulge in the middle of the bow will help you with the alignment. Then you can insert the small bow. I used a screwdriver to press it into place. T o ensure a good fi t, the fi tting accuracy is very tight. It may be necessary to correct the fi t with a cutter knife or sandpaper. Now prepare 4 nylon threads with approx. 20-25cm length. Insert them into the holes of the plate. A multiple knot is enough to fi x the thread to the plate. Then start by hanging the plate into the big bow. The thread length between the tip of the bow and the plate should be about 6cm There is a small slit (W 0,3mm) at the end of the arch - apart from the hole - to trap the thread, initially for temporary fi xation. When the plate is aligned horizontally, you can pull the thread through the hole 1-2 more times and clamp it. This should be enough for a permanent fi xation. Now you can cut of the thread ends. Due to the material (PLA) the load is limited ... about 150 gr.

Art & Design > Other Art & Designs presentationstand Printer brand: Prusa Printer: I3 MK3S Rafts: Doesn't Matter Supports: No Resolution: 0,2 In fi ll: 15% Filament_brand: Prusa; ICE Filament_color: Galaxy Black; Young Yellow Filament_material: PLA Model Files (.stl, .3mf, .obj, .amf)  DOWNLOAD ALL FILES base.stl 195.5 KB  updated 14. 8. 2020 arc_big.stl 240.3 KB  updated 14. 8. 2020 arc_small.stl 196.1 KB  updated 14. 8. 2020 plate.stl 287.1 KB  updated 14. 8. 2020

 The Author has not uploaded any print fi les. Try to search in User print fi les section or generate and upload your own. License  This work is licensed under a Creative Commons (4.0 International License) Attribution—Noncommercial—Share Alike ✖ | Sharing without ATTRIBUTION ✔ | Remix Culture allowed ✖ | Commercial Use ✖ | Free Cultural Works ✖ | Meets Open De fi nition
