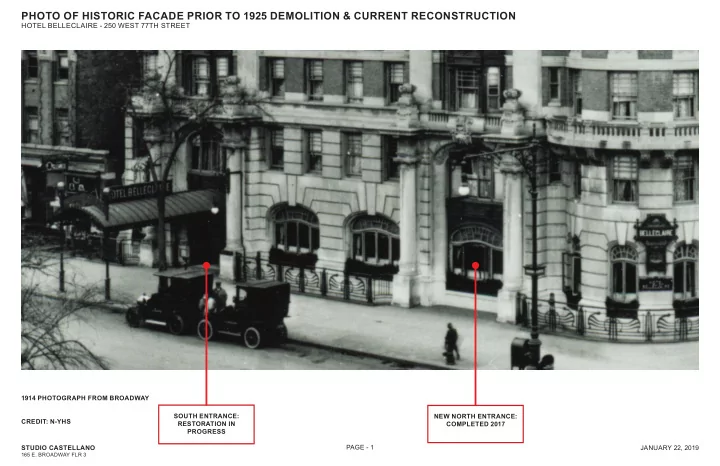

PHOTO OF HISTORIC FACADE PRIOR TO 1925 DEMOLITION & CURRENT RECONSTRUCTION HOTEL BELLECLAIRE - 250 WEST 77TH STREET 1914 PHOTOGRAPH FROM BROADWAY SOUTH ENTRANCE: NEW NORTH ENTRANCE: CREDIT: N-YHS RESTORATION IN COMPLETED 2017 PROGRESS PAGE - 1 STUDIO CASTELLANO JANUARY 22, 2019 165 E. BROADWAY FLR 3

APPROVED DESIGN - 1925 SPANDREL BEAMS NOTCHED TO ACCOMMODATE RECONSTRUCTION HOTEL BELLECLAIRE - 250 WEST 77TH STREET FACADE RENDERING - (WITHOUT CANOPY SHOWN) STUDIO CASTELLANO PAGE - 2 JANUARY 22, 2019 165 E. BROADWAY FLR 3

APPROVED DESIGN - FACADE ELEVATION DRAWING HOTEL BELLECLAIRE - 250 WEST 77TH STREET NEW LIMESTONE NEW GFRC, GFRP, OR PRECAST CONCRETE 06 05 04 DEP SOUTH ENTRANCE: NEW NORTH ENTRANCE: RESTORATION IN COMPLETED 2017 PROGRESS STUDIO CASTELLANO PAGE - 3 JANUARY 22, 2019 165 E. BROADWAY FLR 3

EXISTING CONDITIONS - ARCHED ENTRYWAYS HOTEL BELLECLAIRE - 250 WEST 77TH STREET NORTH ENTRANCE APPROVED NORTH ENTRANCE APPROVED DESIGN SOUTH ENTRANCE APPROVED DESIGN SOUTH ENTRANCE CONSTRUCTION DETAIL: - CA. 1925 BEAM 6 INCHES FROM - CONSTRUCTED IMAGE 2017 - RENDERING - EXISTING CONDITION WITH WALL, NOTCHED. (PENDING FINAL SIGNAGE AND PAINTING) BEAM EXTENDING 9 INCHES FROM WALL PAGE - 4 STUDIO CASTELLANO JANUARY 22, 2019 165 E. BROADWAY FLR 3

APPROVED DESIGN - SOUTH ENTRYWAY WITH BEAMS NOTCHED HOTEL BELLECLAIRE - 250 WEST 77TH STREET RENDERING FROM SIDEWALK - BEAM CUT BACK AND CONCEALED BEHIND FIBERGLASS SIGNAGE FRAME AND SIDE COVES STUDIO CASTELLANO PAGE - 5 JANUARY 22, 2019 165 E. BROADWAY FLR 3

PROPOSED DESIGN OPTIONS - SOUTH ENTRYWAY WITH NO NOTCHING OF BEAMS HOTEL BELLECLAIRE - 250 WEST 77TH STREET • BELLECLAIRE OWNERSHIP REQUESTS LPC’S APPROVAL OF AN ALTERNATE DESIGN THAT DOES NOT REQUIRE CUTTING OF THE EXISTING BEAM AT THE SOUTH ENTRY. • THE 1925 STEEL BEAM EXTENDS FURTHER FROM THE WALL THAN THE ALREADY MODIFIED ONE TO THE NORTH AND WOULD REQUIRE MORE CUTTING AND SURROUNDING STONE REMOVAL. OPTION A: OPTION B: - SIGNAGE FRAME EXTENDED TO COVER BEAM - EXPOSED BEAM FLANGES AND WEB COVERED IN LIMESTONE COLORED FIBERGLASS. STUDIO CASTELLANO PAGE - 6 JANUARY 22, 2019 165 E. BROADWAY FLR 3

PROPOSED OPTION “A” - SOUTH ENTRYWAY WITH NO NOTCHING OF BEAMS - SIGNAGE FRAME EXTENDED HOTEL BELLECLAIRE - 250 WEST 77TH STREET FACADE RENDERING - (WITHOUT CANOPY SHOWN) STUDIO CASTELLANO PAGE - 7 JANUARY 22, 2019 165 E. BROADWAY FLR 3

PROPOSED OPTION “A” - SOUTH ENTRYWAY WITH NO NOTCHING OF BEAMS - SIGNAGE FRAME EXTENDED HOTEL BELLECLAIRE - 250 WEST 77TH STREET RENDERING FROM SIDEWALK - (SIGNAGE FRAME EXTENDED TO COVER BEAM) STUDIO CASTELLANO PAGE - 8 JANUARY 22, 2019 165 E. BROADWAY FLR 3

PROPOSED OPTION “B” - SOUTH ENTRYWAY WITH NO NOTCHING OF BEAMS - BEAM FLANGE COVERED HOTEL BELLECLAIRE - 250 WEST 77TH STREET FACADE RENDERING - (WITHOUT CANOPY SHOWN) STUDIO CASTELLANO PAGE - 9 JANUARY 22, 2019 165 E. BROADWAY FLR 3

PROPOSED OPTION “B” - SOUTH ENTRYWAY WITH NO NOTCHING OF BEAMS - BEAM FLANGE COVERED HOTEL BELLECLAIRE - 250 WEST 77TH STREET RENDERING FROM SIDEWALK - (LIMESTONE COLORED FIBERGLASS TO COVER BEAM PAST END OF SIGNAGE FRAME) STUDIO CASTELLANO PAGE - 10 JANUARY 22, 2019 165 E. BROADWAY FLR 3
