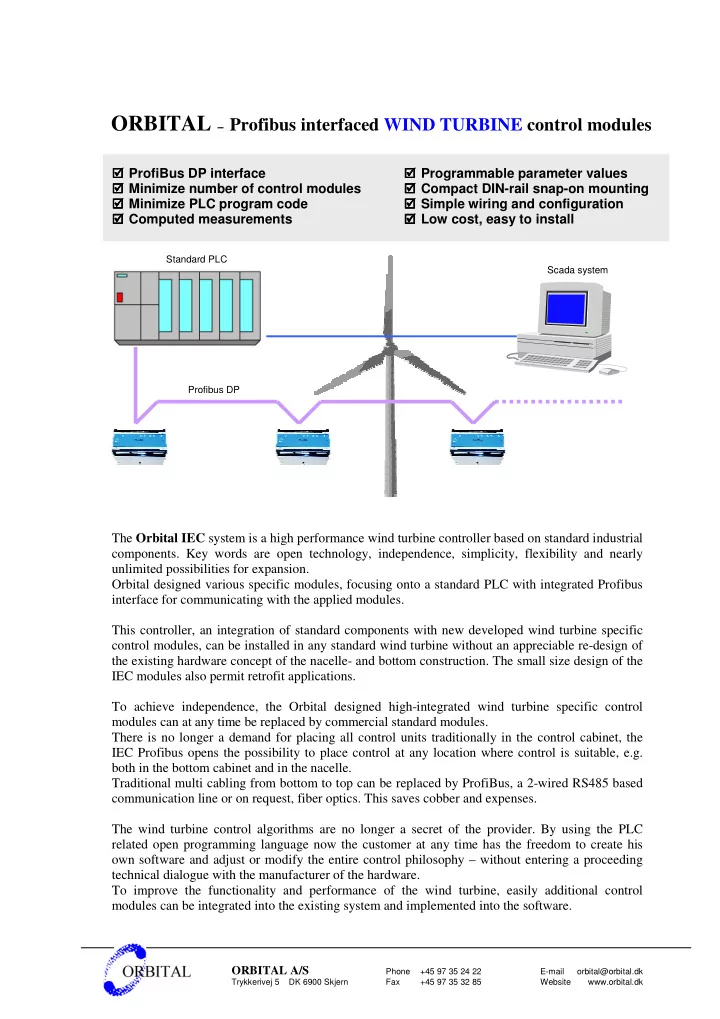

ORBITAL – Profibus interfaced WIND TURBINE control modules � ProfiBus DP interface � � Programmable parameter values � � � � � � � � � Minimize number of control modules � � � � Compact DIN-rail snap-on mounting � � � Minimize PLC program code � � � Simple wiring and configuration � � � � Computed measurements � � Low cost, easy to install � � � � Standard PLC Scada system Profibus DP The Orbital IEC system is a high performance wind turbine controller based on standard industrial components. Key words are open technology, independence, simplicity, flexibility and nearly unlimited possibilities for expansion. Orbital designed various specific modules, focusing onto a standard PLC with integrated Profibus interface for communicating with the applied modules. This controller, an integration of standard components with new developed wind turbine specific control modules, can be installed in any standard wind turbine without an appreciable re-design of the existing hardware concept of the nacelle- and bottom construction. The small size design of the IEC modules also permit retrofit applications. To achieve independence, the Orbital designed high-integrated wind turbine specific control modules can at any time be replaced by commercial standard modules. There is no longer a demand for placing all control units traditionally in the control cabinet, the IEC Profibus opens the possibility to place control at any location where control is suitable, e.g. both in the bottom cabinet and in the nacelle. Traditional multi cabling from bottom to top can be replaced by ProfiBus, a 2-wired RS485 based communication line or on request, fiber optics. This saves cobber and expenses. The wind turbine control algorithms are no longer a secret of the provider. By using the PLC related open programming language now the customer at any time has the freedom to create his own software and adjust or modify the entire control philosophy – without entering a proceeding technical dialogue with the manufacturer of the hardware. To improve the functionality and performance of the wind turbine, easily additional control modules can be integrated into the existing system and implemented into the software. ORBITAL A/S Phone +45 97 35 24 22 E-mail orbital@orbital.dk Trykkerivej 5 DK 6900 Skjern Fax +45 97 35 32 85 Website www.orbital.dk

OrbiGrd Grid monitoring module OrbiGrd Monitoring a 3-phased grid. - 3 Voltage inputs. - 3 Current inputs. - 2 Analogue outputs. (U/I selectable) - 2 Digital inputs. - 2 Relay outputs. Measurement: - 3-phased Voltage/Current [V/A] - Active Power [kW] - Reactive Power [kVAR] - Grid frequency [Hz] - Cos (phi), Power Factor - Excess indication of measured values ProfiBus interface OrbiMix Timer/counter/temperature module OrbiMix Monitoring of temperatures and high- speed counter / timer signals. - 8 (16) Pt100 sensors. (3-wired) - 6 Hi speed counter / timer. - 2 Digital inputs. - 2 Relay outputs. Measurements: - Temperature [ ° C/ ° F] - Revolution [RPM] - Wind speed [mps/mph] - Frequency [Hz] - Excess indication of measured values - Yaw control ProfiBus interface

OrbiThy Thyristor control module OrbiThy 3-phased dual polarity thyristor trigger unit for soft motor start and soft generators connection. - 3 Thyristor trigger outputs. - 2 Digital inputs. - 2 Relay outputs. - Available as “Stand Alone” module Measurements: - Grid frequency [Hz] - Phase sequence - Thyristor trigger angle [ ° ] - Excess indication of measured values ProfiBus interface OrbiVib Vibration monitoring module OrbiVib Vibration / RPM guard. Monitoring vibration bands, temperatures and counter / timer signals Configurable as Stand Alone system. Available as Lite version without Pt100 inputs - 1 External dual axis accelerometer - 8 Pt100 sensors. (3-wired) - 2 Digital Inputs (encoder / timer). - 2 Relay outputs. Measurement: - 8 fixed LF vibration bands [Hz] - 1 programmable vibration band [Hz] - Temperatures [ ° C/ ° F] - Revolution [RPM] - CW/CCW indication - Excess indication of measured values ProfiBus interface

OrbiVib 2 Vibration monitoring of up to 8 individual programmable bands OrbiVib 2 Example Vibration / RPM guard / Datalogger Monitoring vibration bands and counter / timer signals Configurable as Stand Alone system. - 1 External dual axis accelerometer - 2 Digital Inputs (revolutions / encoder). - 2 Relay outputs. - USB interface Measurement: - 8 programmable vibration bands [Hz] - Revolution measurement [RPM] - CW/CCW indication (encoder mode) - Excess indication of measured values - Real Time Clock - Data Log Buffer - Trace buffer for condition monitoring ProfiBus interface OrbiCap Solid State Power Factor Control OrbiCap L3 L2 L1 N PL10 PL11 PL12 Solid State Power Factor Controller PL7 TT70N2400 TT70N2400 TT70N2400 OrbiCap PL8 PL9 +24VDC 0 VDC PL4 PL5 PL6 PL1 PL2 PL3 Thyristor control of 4 Capacitor Banks J1 M1 Power 2 o 1 1 o 2 6 K1 K 6 K1 K 6 K1 K PL12 PL 6 3 6 o 6 o G1 G1 G1 OrbiCap provides dynamic control of the 5 o 5 o 5 5 5 4 4 3 3 2 o 2 o reactive power and improves the grid quality 1 o 1 o A A A PL11 PL 5 by transient free switching of the capacitors. 6 o 6 o Temperature Feedback K 5 o 5 o K K 4 4 2 2 Klixon 2 Klixon feedback 3 3 K2 K2 K2 M2 1 Thyr. Bank 4 2 o 2 o 1 1 1 1 o 1 o G2 G2 G2 Thyr. Bank 3 2 OrbiCap can work automatically in a Profibus Thyr. Bank 2 3 PL10 PL4 6 o 6 o Thyr. Bank 1 4 5 o 5 o environment or manually as a Stand Alone 4 4 A A A 5 3 3 2 o 2 o 1 o 1 o System by using the 4 Digital Control Inputs. Bank control PL 9 PL 3 M2 6 o 6 o Security Klixon ON Bank 4 Digital inputs 5 o 5 o 1 4 4 ON Bank 3 L3 L2 L1 2 3 3 2 o 2 o ON Bank 2 3 1 o 1 o ON Bank 1 4 Control: Capacitor Bank 4 PL 8 PL 2 5 6 o 6 o Capacitor Bank 3 5 o 5 o 4 4 - 4 Digital Inputs 3 3 Capacitor Bank 2 2 o 2 o 1 o 1 o Capacitor Bank 1 - 4 Digital Security Klixon Inputs PL 7 PL 1 6 o 6 o - Available with Profibus DP interface 5 o 5 o 4 4 3 3 2 o 2 o 1 o 1 o

Bottom / Top Connections via ProfiBus

Meteorological Equipment Anemometer - PNP digital output - Short circuit protected - Brass / Stainless Steel Construction - Start wind > 1.0 m/s - 10 m cable - 0.75 kg - Accuracy < 4% - Calibration on request Wind Vane - PNP digital output - “Black and White” detection - “In Wind” indication - Short circuit protected - Brass / Stainless Steel Construction - Start wind > 1.5 m/s - 10 m cable Wind Direction sensor - PNP digital output - 64 sectors - Short circuit protected - 1.35 Kg - Brass/Stainless steel construction - Start wind: > 1.5 m/s - Resolution 5.6 ° - Gray Code
