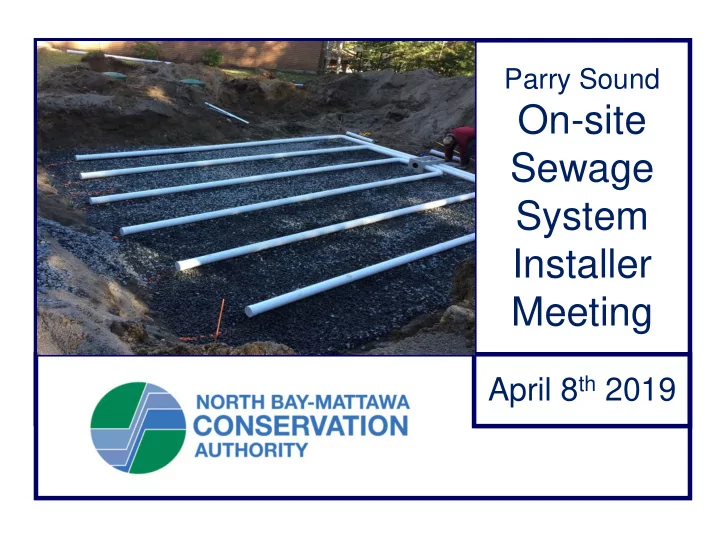

Parry Sound On-site Sewage System Installer Meeting April 8 th 2019
Agenda 1) Meet & Greet (Coffee/Snack) (9:00 – 9:30 am) 2) New Application Introduction 3) Fee Schedule 4) OBC Changes: Update & Review 5) Applicable Law Review 6) Program Review 7) Lunch (~ 12:30 - 1:00 pm) 8) BCIN Status/Renewals 9) Manufacturer Talks 10) Q & A (2:00 – 3:00 pm) www.nbmca.ca
New On-site Sew age System Permit Application • New applications are now available on NBMCA’s website • Fillable forms also available online for ease of use • If you would like a pre-filled in application please make a request with NBMCA staff prior to leaving today • User friendly application with reduction in number of pages Ella Fitzgerald John Smith ABC Dirt & Gravel Inc. 705 555-8888 705 665-9999 N/A abc@dirtandgravel.ca Page 1: NEW FEATURES • Attempted to reduce repetition 111 Singers Lane Monteith / Seguin • Option for a preferred method of 1 B 14 PSR-1407 1346 4903-080-009-67890-0000 communication / permit retrieval (please From Parry Sound office, turn right onto Bowes St, continue straight on to HWY 400, take exit for Hunter Dr. Turn left at indicate if the owner and installer would like the stop sign at end of exit and continue to Singers Ln on the to obtain their permits in different ways) left (approx. 3KM). Destination of property will be on the right. • Indicate what type of system the proposal is for at the bottom of the page to assist inspector upon site visit www.nbmca.ca
New On-site Sew age System Permit Application Ministry Forms 111 Singers Lane 1 / B Monteith / Seguin P2A 0B2 Sub 14, PSR-1407, Pl 1346 $15 000 350 m2 Single Family Dwelling & Bunky Vacant Land To construct a new fully raised 4F Filter Bed & install a new Tank to service proposed Single Family Dwelling and Bunky on currently vacant land. Smith John ABC Dirt and Gravel Inc. John Smith 23 Dirt and Gravel Drive McDougall P0G 1G0 ON abc@dirtandgravel.ca (705) 555-8888 (705) 557-9999 Joh John S Smith March 26, 2019 Fitzgerald Ella 9 Yellow Path 233 Toronto L6H 4R7 ON N/A (705) 665-9999 N/A www.nbmca.ca
New On-site Sew age System Permit Application Ministry Forms We know this is repetitive but it is a 1 / B part of the mandatory ministry forms, so 111 Singers Lane 111 Singers Lane 1 / B please fill it out every time (if you use Monteith / Seguin P2A 0B2 Sub 14, PSR-1407, Pl 1346 the fillable forms it will automatically fill Monteith / Seguin P2A 0B2 Sub 14, PSR-1407, Pl 1346 these sections the first time you enter John Smith ABC Dirt and Gravel Inc. the data). 23 Dirt and Gravel Drive McDougall P0G 1G0 ON abc@dirtandgravel.ca (705) 555-8888 (705) 557-9999 55567 John Smith 23 Dirt and Gravel Drive abc@dirtandgravel.ca McDougall P0G 1G0 ON (705) 555-8888 (705) 557-9999 Design a fully raised 4F Filter Bed & Tank to service proposed Single Family Dwelling and Bunky on currently vacant land. John Smith 25896 John Smith John Smith This section is for 25896 If the installer is initially unknown (ex. “No” is checked in section B), this form MUST be re-submitted installers completing their by the applicant with “Yes” checked in section B, the installer info and this box checked off. “other designer” (installer) own designs. John S Joh Smith March 26, 2019 Joh John S Smith March 26, 2019 www.nbmca.ca
New On-site Sew age System Permit Application Schedule 3: NEW FEATURES • More user friendly 20 There should always Sandy Loam to 0.5m, beyond be test holes available • Please indicate whether or not the that is Clay to unless it is worst case 50 bottom of hole. scenario. 1.5m DEEP Shore Road Allowance (SRA) is owned on waterfront properties Rural Residential 97m 400m ~ 38800 m2 • This is VERY important, as it is a property line and therefore setbacks and 15m for MLA must be applied beginning here (not at High Water Mark: HWM) • Space to indicate the zoning on the lot (you may have to contact the municipality for assistance here) • More space to write additional notes This section is reserved for inspectors notes for the site visit, however if you are for the inspectors and proposing something special on the lot (ex. Part 11 setbacks), this is where you should include it. designers/installers www.nbmca.ca
New On-site Sew age System Permit Application 111 Singers Ln, Monteith Schedule 4: NEW FEATURES 1 1 12 • Additional area included for multiple buildings on one property 1 1.5 1 1 1 1.5 • Fillable form capable of calculating fixture unit count automatically 10 6 16 • This page will now form a part of 190 20 210 4 3 1 your permit and be sent out to the contractor, the owner and the township. This will eliminate the 2000 inspector re-writing out proposal information ultimately having less 1 2100 room for error. 2100 www.nbmca.ca
New On-site Sew age System Permit Application Schedule 5: NEW FEATURES 111 Singers Ln, Monteith construct 4F cottage & bunky. • Additional area included for providing details about the project and property N/A • Prompts additional questions which will cottage & bunky allow less time during the processing of the permit as the inspector will have less questions to ask after the site visit • Cut down on number of pages (added 4500 Class 5 & Class 2 to the same page) rebar all runs both ends 20 50 • This page will now form a part of your 30 1 1.5 permit and be sent out to the 210 20 10.5 contractor, the owner and the township. This will eliminate the inspector re- writing out proposal information ultimately having less room for error. www.nbmca.ca
New On-site Sew age System Permit Application Schedule 5: NEW FEATURES 111 Singers Ln, Monteith • Additional area included for providing See attached details about the project and property • Prompts installer to include proposed setbacks to the closest structure, lot line, neighbouring well(s) and surface water from both the pipe and the tank in a sewage disposal system • If necessary fill in the prompted distances and write “see attached” if you require more space for your site 11 40 plan (attach site plan on another 50 140 76 100 paper) 4 42 • This is a proposal, not minimum code 60 144 80 80 requirements, please fill in actual setbacks www.nbmca.ca
Ella Fitzgerald LAKE 111 Singers Ln, Monteith 125m N 100m Proposed Proposed 130m House Garage 4m 11m Tank 50m 40m 4F X MLA 400m X 15m X = test hole location(s) 40m 50m 310m proposed Prop drilled well Bunky 97m
New On-site Sew age System Permit Application 111 Singers Ln, Monteith See attached Schedule 7: NEW FEATURES • Prompts installer to include proposed raised height and final grade on the project property • If necessary fill in the prompted areas and write “see attached” if you require more space for your cross section (attach cross section on another paper) 1.2 • This is a proposal, not minimum code requirements, please fill in true values 1.4 1:1 6:1 www.nbmca.ca
Cross Section – Filter Bed Ella Fitzgerald 111 Singers Ln, Monteith - Geotextile cloth Filter Bed Area 30 m2 - 5cm stone above (4 runs @ 6.5m long) - 3” Perforated Pipe - 15cm stone below Backfill and Topsoil (30cm deep) 1m 1m 1m Filter Sand (50cm deep) 75cm 50m2 Expanded Contact Area Filter Sand (25cm deep) 210m2 Mantle Loading Area (25cm deep) 0.4m to GWT from bottom of MLA (+0.9m to Rock)
New On-site Sew age System Permit Application Letter of Authorization • This form will be available on our website and in the office in a document separate from the Permit Application to reduce unnecessary printing of paper • You may use this form or a version similar of your own Ella Fitzgerald 1 B 14 PSR-1407 • Please ensure the legal owner is 1346 Monteith/Seguin Parry Sound signing and dating this document 111 Singers Lane when they are not the applicant as it 4903-080-009-67890-0000 legally authorizes you as the John Smith of ABC Dirt & Gravel Inc. installer to make changes on the owners behalf Parry Sound, ON • Applications which are missing this March 26, 2019 Ella la F Fitzgera erald ld page will not be accepted as completed and will be placed on hold www.nbmca.ca
Fee Schedule www.nbmca.ca
OBC Changes 1) BNQ Introduction (SB-5 Removal) [8.6.2.2.(5)] 2) Type A / B Beds (Area Bed Removal) • Setbacks to Stone [8.7.7.1.(9)] & [8.7.8.2.(10)] • Sieve Analysis Required [8.7.7.1.(4)] • Must be designed and installed by a person competent in this field of work [8.7.1.2.(1)] 3) Chambers Added [8.7.2.3.] www.nbmca.ca
