Northern Lights A European CO 2 transport and storage network Open - PowerPoint PPT Presentation

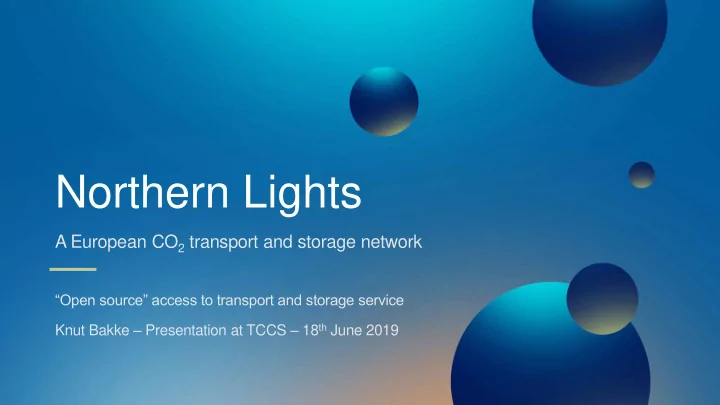

Northern Lights A European CO 2 transport and storage network Open source access to transport and storage service Knut Bakke Presentation at TCCS 18 th June 2019 Content What is Northern Lights? What is open source?


  1. Northern Lights A European CO 2 transport and storage network “Open source” access to transport and storage service Knut Bakke – Presentation at TCCS – 18 th June 2019

  2. Content • What is Northern Lights? • What is «open source»? • What is the business case? • Challenges • Status and plan 2

  3. What is «open source»? • Separate CC and S in CCS • Industrial parties to focus on own operations and capture at own location • Industry = cement, waste, steel, petrochemistry and more • Storage is «neutral» to source • Transport is flexible and somewhat neutral to location • Leverage strengths of each party • Reduce risk for all • Lower threshold for CCS 3

  4. Northern Lights concept overview Subsea facilities Pipeline • Connecting pipeline, • 100km un-insulated pipeline umbilical and well(s) • 12 ¾ inch • Water depth ~300m • Single phase (liquid) CO 2 • Connection for future step-out Subsea injection well • Injection of CO 2 into reservoir at ~3000m depth • Pressure in reservoir ~300bar • Temperature in reservoir ~100 ºC CO 2 Capture Sites Ship(s) Onshore facilities • CO 2 captured by Fortum, at Klemetsrud, • One ship per • One jetty Umbilic and Norcem, in Brevik, and stored locally capture site • Tank volume based on ship cargo al at their jetties • 7,500m 3 of LCO 2 size Connection • Storage volume at each site required to per ship • Pump system to provide required from Oseberg- account for ship arrival every four days • Pressure 13- export pressure field providing power plus a buffer for any upsets in the overall 18barg at • Evaporator to maintain vapour/liquid and signal from DC/FO and fluids through umbilical chain equilibrium balance in storage tanks during • Jetty operations by capture plant temperature injection system. Spare capacity for (approx. -25 ºC) additional wells. Capacity (Mt/y) 5 + well(s) + ship(s) + pump capacity + heater capacity + jetty 1.5 + tanks? 1 x injection 2 x ship Onshore facilities Pipeline well (tbc) 1 x ship 4 | TCCS Open 18 June 2019 03 June 2019

  5. Contours: 50m A’ 31/2-3 31/2-1 Troll 31/5-1 West Troll East AW2 A License Application 5 | TCCS Open 18 June 2019 03 June 2019

  6. What is the business case? • Build public-private collaboration to bridge gap between current cost of CSS and current cost of emissions • From words to action – driving cost down through standardisation and replication • Develop 3rd party business • Advocacy • Opportunity Identification • Clean Team / Delivery of Agreements • State-to-state Process 6 | TCCS Open 18 June 2019

  7. We are active in virtually all Northern European countries Finland 8+ Norway Estonia 7 Sweden 6 Latvia Injected CO 2 (Mtpa) Denmark 5 Phase 2 4 Poland The Netherlands Project #1 2500 ktpa Project #2 750 ktpa 3 Project #3 250 ktpa Germany Example volumes Example 2 Belgium timing Heidelberg 400 ktpa Base 1 France Phase 1 Load Fortum 400 ktpa Project A 200 ktpa (example volume) Switzerland Project B 500 ktpa (example volume) 0 2020 2023 2025 2018 2019 2021 2022 2024 2026 2027 2028 2028+n 18 June 2019 7 | TCCS Internal

  8. Project of Common Interest / PCI • Eight participating countries in the Northern Lights PCI • CO2 capture Norway • Sweden • Germany • The Netherlands • Belgium • France • • Confirmation of serious interest from large industrial companies, across Europe • Next step: Connecting Europe Facilities • Applications for funding from the CEF arrangement • Financing of studies Open 18 June 2019

  9. Key challenges • No commercial model • Establishing joint venture • Subsurface maturation in low cost environment • Immature funnel of 3 rd party volumes • Project maturation in absence of the above 9 | TCCS 18 June 2019

  10. Status and plan • Drilling confirmation well including well test – Q1-20 • Partner FID and PDO/PIO submission – Q2-20 • State FID – Q4-20 • Execution up to Q4-23 - Demonstration period starts 10 | TCCS Open 18 June 2019 03 June 2019
