NEW CREATIVE I N T E R C O N N E C T S O L U T I O N S - PowerPoint PPT Presentation

Dec 26, 2023 •534 likes •739 views

NEW CREATIVE I N T E R C O N N E C T S O L U T I O N S Positioning MOTS by Nicomatic M ilitary O ff T he S helf HIGH QUALITY TAPE&REEL SHORT DELIVERY Military Easy to store Products in stock Civil avionics 24 HOURS delivery Easy to

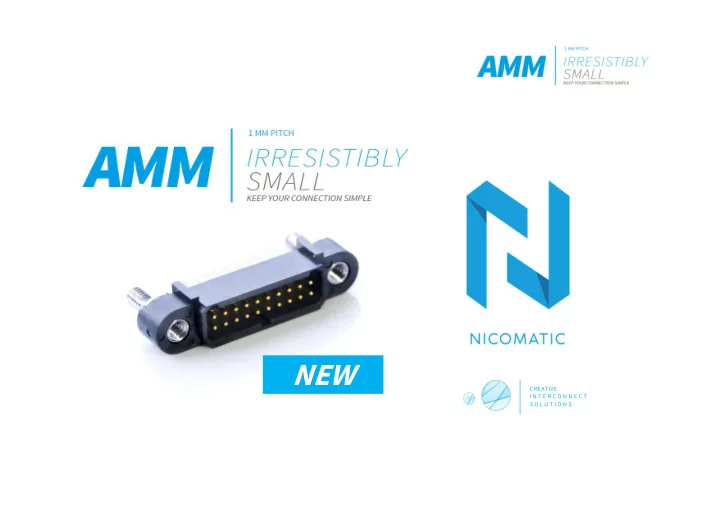

  1. NEW CREATIVE I N T E R C O N N E C T S O L U T I O N S

  2. Positioning MOTS by Nicomatic M ilitary O ff T he S helf HIGH QUALITY TAPE&REEL SHORT DELIVERY Military Easy to store Products in stock Civil avionics 24 HOURS delivery Easy to assemble Harsh industrial

  3. All about savings! EMM CMM UP TO -30% AMM 6,10,20,34 & 50 ways UP TO -40% Save Space on PCB: up to 40% Surface saved/ EMM or microD Save Stacking PCB distance : 40% ( 6.2mm max) 30% 29% 28% 28% 27% 26% 26% 25% 24% 23% 23% Save Weight: btw 60% 21% 20% 20% 19% 19% & 80% 17% 16% 14% 14% 12% 11% Save Time: 24 hours 8% 7% delivery 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

  4. Product Mix STANDARD CONFIGURATIONS 06 - 10 - 20 - 34 - 50 signal contacts - Straight thru-hole male and female Locking or guiding hardware - SMT male and female - Pre-cabled with potting AWG26 - Pre cabled w/ potting AWG 26-28-30 - Other pin combinations - Connectors w/o mounting ears (57% space saving)

  5. PCB configurations 06 - 10 - 20 - 34 - 50 pins MALE thru-hole MALE thru-hole Locking Without fixing Polarization 3 points FEMALE thru-hole FEMALE thru-hole Locking Racking Wiping Length: Min 1mm Exclusive integrated stud for racking MALE SMT FEMALE SMT Locking Locking

  6. Pre-cabled configurations 06 - 10 - 20 - 34 - 50 pins Female on Cable AWG 26 Pre-Wired 150, 300, 450mm Jackscrew fixing

  7. On request FEMALE HARNESS with AWG 26-28-30 Ultra Low profile with NO MOUNTING EARS Intermediary pin count from 4 to 50 Specific Fixing Adapted response: NRE, Lead Time… Specific Marking Specific Packaging

  8. Material MACHINED CONTACTS INTERCHANGEABLE fixing HOUSING LCP Au 0.15 to 0.4µ Stainless Steel 316L Resistant to high temperatures Extreme durability Robust Ensures optimal flatness Resistant to humidity and salt spray V16 FEMALE FEMALE WITH INTEGRATED CAPTIVE SLOTTED CONTACT WITH 4 GUIDANCE PIN FOR STACKING CONTACT POINTS PURPOSES COPPER ZINC ALLOY, GOLD FINISHING V22 SCREW MALE MALE COPPER ALLOY VXX FEMALE INTEGRATED PIN MALE SMT COPPER ALLOY

  9. Technical Features Wiping lengh >1 mm for PCB/PCB and PCB/CABLE Great for stacking! (6.2mm max mating length)

  10. Detail derating The upper current limit at Tamb = 25°C (derated curve) are : - PCB / AWG26 6 : 4.8 A - PCB SMT / AWG26 6 : 4.0 A - PCB / PCB 6 : 4.0 A - PCB / AWG26 20 : 4.8 A - PCB SMT / AWG26 20 : 2.6 A - PCB / PCB 20 : 2.5 A - PCB / AWG26 50 : 3.2 A - PCB SMT / AWG26 50 : 2.0 A - PCB / PCB 50 : 1.8 A The upper current limit until Tamb = 85°C (operating curve) are : - PCB / AWG26 6 : 3.8 A - PCB SMT / AWG26 6 : 2.7 A - PCB / PCB 6 : 2.7 A - PCB / AWG26 20 : 2.7 A - PCB SMT / AWG26 20 : 1.6 A - PCB / PCB 20 : 1.5 A - PCB / AWG26 50 : 2.0 A - PCB SMT / AWG26 50 : 1.2 A - PCB / PCB 50 : 1.0 A

  11. Codification PCB Configurations STANDARD EASY * CUSTOM Pe-cabled Configurations Series Gender Signal wire + color Shape & Potting LF contact nbr Fixing Series HP/HF Shielding Length I (AWG 26) 0150 2 Q 06-10-20-34-50 Z 0300 HA22 H (AWG 28) V16 or VXX Ø Female with backpotting AND OTHER* No accessory 0450 XXXX* G (AWG 30)

  12. Drawings 2D AND 3D AVAILABLE ON THE WEBSITE

  13. Communications 4p brochure Website Do you need a solution to solve your most demanding space constraints issues? Check out the capabilities offered by our new, AMM, 1.00 mm pitch connector. The highly reliable AMM series offers five standard layouts that are stocked and available in just a few days: 06, 10, 20, 34, or 50 contacts distributed over 2 rows. In addition to those standard layouts, AMM series benefits from Nicomatic global easy custom expertise. You can either select another pin configuration (any from 04 to 50 signal contacts) or request cabled connectors. For most demanding space constraints, AMM can also be produced without mounting ears. Robust thanks to its LCP housing and its stainless steel fixing hardware, AMM Series meets demanding requirements like high temperatures and shocks up to 15g. Contacts are gold plated for enhanced durability and high performances. Product builder

  14. AMM KF-X Fighter AESA CUSTOM SOLUTIONS NICOMATIC SOLUTION Advantages :  Robust again vibration & shock  Very light Weight.  Short lead time  Mating height, PCB to PCB  Total length : 23 mm for 42 pins  Current rate per contact Radar Antenna

  15. AMM Aeronautics Military & Civil CUSTOM SOLUTIONS NICOMATIC SOLUTION Advantages :  Fast technical response  Small size & light weight  High vibration (15G) Aircraft Fire Alarm sensor

  16. AMM Aeronautics Civil Aircraft CUSTOM SOLUTIONS NICOMATIC SOLUTION Advantages :  Space saving  Weight saving  Short lead time  Strong support and reactivity Aircraft Digital Signal Processing

  17. AMM Military Communication Ground Based CUSTOM SOLUTIONS NICOMATIC SOLUTION Advantages :  Compact design & space saving.  Very light Weight.  Cable harness support.  Captive locking is strength. Radio Satellite Communication P13049

  18. AMM DEFENSE Surface to Air CUSTOM SOLUTIONS DEFENCE NICOMATIC SOLUTION ADdvantages  Space and Weight saving  PCB to PCB connection (stacking height)  High vibration environment CONFIDENTIAL MISSILE

  19. AMM SERIES MICRO-CONNECTORS 1mm pitch All about savings  Space on PCB & Stacking (up to 40%)  Weight (up to 80%)  Lead time 24hours to max 4 weeks Standard configurations in stock  2 rows signal contacts [06.10.20.34.50]  Thru-hole male and female  SMT male and female  Cable 26/28/30 AWG female  Reverse fixing as standard Easy to adapt to your needs High performances EASY TO ORDER & INTEGRATE  LCP housing  Full gold plated contacts  1000 cycles  Vibration 15g, Shock 100g 1 24 2D/3D  Wiping lengh >1mm (PCB/PCB and PCB/Cable)  -65° to +200° operating temperature PIECE HOURS  From 1 Amp (pcb/pcb 50) to 4.8 Amp (pcb/awg 6)  Withstanding voltage 600 V RMS at sea level MOQ Instant LEAD delivery TIME
