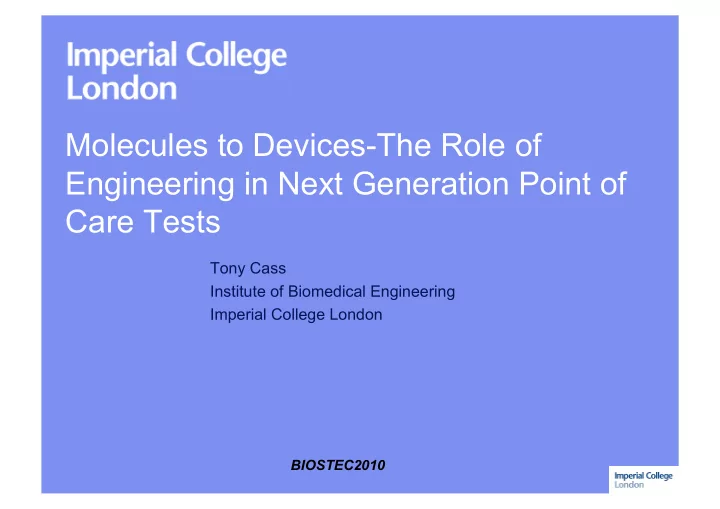

Molecules to Devices-The Role of Engineering in Next Generation Point of Care Tests Tony Cass Institute of Biomedical Engineering Imperial College London BIOSTEC2010 Outline of Lecture The Challenges of Genes and Lifestyles in 21 st


  1. Molecules to Devices-The Role of Engineering in Next Generation Point of Care Tests Tony Cass Institute of Biomedical Engineering Imperial College London BIOSTEC2010

  2. Outline of Lecture • The Challenges of Genes and Lifestyles in 21 st Century Healthcare • The Role of IVD and PoCT in Healthcare Delivery • Component Building – Aptasensors – Microfluidics – Nanostrucured Surfaces – Minimally Invasive Sensing • Conclusions

  3. Societal Drivers: Driving Up Healthcare Costs Victims of Our Own Success

  4. … but it’s worse, much worse Uninformed and Poor Lifestyle Choices + = Sedentary Poor Diet Obesity ~20% of Lifestyle population (UK) Chronic diseases such as diabetes and heart disease

  5. A Pharmaceutical Solution?  Long history of success  Global reach  Advances in biological research driving innovation

  6. But the Challenges for Therapeutics are substantial • ‘ Easy’
diseases
done
 • Complex
diseases
more
dependent
on
individual
 responses
to
therapy
 • Less
societal
acceptance
of
adverse
reac:ons
as
‘a
price
 worth
paying’
 • Increased
costs
of
pharmacovigilence
 • Falling
produc:vity
and
bad
publicity


  7. Biomarkers in Disease Management Type of Biomarker Definition Diagnostic Differentiates diseased from non- diseased Burden of Disease Associated with extent or severity of disease Prognostic Predicts onset or progression Efficacy of intervention Indicative or predictive of treatment efficacy Investigative Not yet meeting criteria for another category

  8. What About Early (presymptomatic) Detection? OAen
neither
cost‐effec:ve,
prac:cal
nor
ethical
for
popula:on
as
a

whole
(mass
screening)
unless
the
test
has
very
high
specificity
and

 sensi:vity
 Self
tes:ng
as
the
solu:on?
 Look
at
Risk
Factors

Age

Genes

Lifestyle
 Convenience?
 Mo:va:on?
 Clinical
Acceptability?
 Interpreta:on?


  9. Arguably the Greatest Achievement of Analytical Science in the Past Decade

  10. Genotyping and Disease Propensities • The Human genome Project and subsequent developments (HapMap, SNP database) are providing a vast resource for identifying the genetic basis of disease. • How to use this in delivering improved healthcare?

  11. Point of Care Genotyping • Fast, Cheap, focused – Small numbers of genes/SNP’s – Disease/therapy specific – Time to results-minutes Direct to Consumer Genetic Testing

  12. Nanoscale properties determine signal generation but device acts as a macroscopic sensor: Equimolar ACTG Mix Poly A Poly C Poly T Poly G Wavenumber in cm -1

  13. The Point of Care Paradigm • Take testing from Tertiary Care to primary/pharmacy/home • Achieve better outcomes through regular testing • Reduce costs with lower overheads (?) • Self base-lining: look for change rather than magnitude Global IVD Market (2008) >$38bn (USA $14bn, EU € 10bn) Global PoCT Market (2008) $6.7bn (USA $2.4bn) BUT this represents only 1% of total health expenditure Sources (EDMA & Point of Care 2009; 8 :154-156)

  14. Populations and Individuals Control
 Case
 Frequency
 False
Nega:ve
 False
Posi:ve


  15. Time Variation in Function and/or Expression of Pathology Related Biomarkers Pathology 2 Healthy but high Level Pathology 1 Healthy Time

  16. Possible Early Application Areas of PoCT Therapeutic Drug Monitoring & ADR’s Infectious Disease Detection & Progression Complications in pregnancy (e.g. preeclampsia or obstetric cholestasis) Effectiveness in treatment of chronic conditions (e.g osteoarthritis) Cancer therapy and prognosis Patient Compliance Genotyping

  17. Technology Needs for Frequent PoCT Improved Reagents Minimally Invasive Sampling Wireless Connectivity Decision Support Tools Samples: Capillary Blood Interstitial Fluid Urine Saliva Breath

  18. Component Building Minimally Invasive Sensing Aptasensors Nanostructured Surfaces Microfluidics

  19. PoC Reagents: A Wish List * Generic Physical and Chemical Properties Readily Obtainable Traceable Stable Reproducible Controlled affinity and specificity Specific chemical modifications Can be produced to any target molecule Flexible signal transduction schemes Small * Affinity Reagents

  20. Aptasensors • Aptamers as molecular recognition elements • Acquiring aptamers • Characterizing aptamers-affinity determination by SPR • From molecular recognition to sensing- electrochemical signal transduction

  21. Aptamers Aptamers Linear Sequences Selected from Libraries Peptide Aptamers Nucleic acid Aptamers More Monomer Diversity Less Monomer Diversity Less Sequence Coverage More Sequence Coverage DNA Aptamers RNA Aptamers Easier to Synthesize Propensity for Secondary Structure In principle (and usually in practise) aptamers can be selected In vitro against almost any molecular target. “You get what you select for”

  22. Aptamers-Strengths • Well defined at the molecular level • Available in high quantity and quality via chemical synthesis • Precision chemical modification • High stability (with suitable modification)

  23. Sources of Aptamers • The literature and the Ellington lab database (http://aptamer.icmb.utexas.edu/) • Selection from libraries

  24. Library Construction (Ellington Lab) Pool Size 40 µ g RNA 7x10 14 unique sequences 5-10 Copies per pool

  25. Phosphotyrosine Peptide Binding Aptamers A RNA aptamer that mimics SH2 domains

  26. A pY Peptide Binding Aptamer Round 32 Sequences of 30 randomly selected clones Aptamer Clone Tap1 Atgtggaaagctccgaacagcctctatgaa 1 (10) Tap2 Cgtgtgggtgccatattcaattgattggaa 4 (10) Aatgtggaattgtcaatctcttgtga 17 (2) Atgtgggaagctcatcgttttttcgtactg 22 (2) Tggacaagctttcagtcacaggtcataccg 2 Atcatgtggtaagcttttaactcctgctca 6 Aagggggaattgcctcgctcttgcga 9 Ttgtgggggtttcgatcacgtgctgctcggg 10 Atgtggaaatgcttaactgtcgctgctata 13 SPR data Tgcagtacccagtgggtccttagataaggg 23

  27. SPR Binding Data for Tap1 and Tap2 RU RU RU

  28. Inverse Binding Data-Immobilisation Strategy

  29. SPR Data

  30. Mfold Predictions Tap1 Tap2

  31. Lysozyme Diagnostics Non-specific antibacterial protein Serum, urine and saliva levels in the µ M to nM range Maybe useful in the diagnosis of TB and HIV Elevated urine levels in kidney disease and leukemia A DNA aptamer that binds lysozyme Originally selected by Ellington group as an RNA aptamer. DNA sequence synthesised and described for electrochemical (impedance) sensing by Wang group K D 125nM

  32. 1 st Generation Assembly COO - Fc COO - Probe HS Aptamer Gold Electrode Designed as a displacement assay

  33. Dose-Response is Sigmoidal 0 . 235 R es i du a l s 0 . 230 0 . 0025 0 . 225 0 . 0020 0 . 0015 0 . 220 0 . 0010 Residuals 0 . 0005 0 . 215 0 . 0000 100 200 300 400 500 600 0 . 210 - 0 . 0005 [ Lyso z y m e ] / n M - 0 . 0010 p 0 . 205 E - 0 . 0015 0 . 200 - 0 . 0020 0 . 195 0 . 190 0 . 185 0 . 180 0 100 200 300 400 500 600 [ L ys o z y m e ] / n M � E p 20 m V K d 1 3 0 n M ( S P R 1 2 5 n M ) Cooperative surface restructuring?

  34. 2 nd Generation Beacon Assembly COO - COO - HS Aptamer F c Gold Electrode Lysozyme binding disrupts beacon structure Notes: 1. Current decreases with increasing [Lysozyme] 2. Potential shifts +ve Fc moves away from surface

  35. Beacon Dose Response Curves 0.325 0.300 1.8x10 -7 0.275 Potential/V Current/A 0.250 1.5x10 -7 0.225 1.3x10 -7 0.200 0.175 1.0x10 -7 0.150 0 250 500 750 1000 [ L ys o zy m e]/ n M P o t en t i a l C ur r e n t K d =2 9 0 n M Higher Kd expected as Lysozyme binds competitively with internal hydrogen bonds

  36. Neutral Targets Too

  37. Minimally Invasive Measurement Tools for ISF Attractions of ISF: ‘Painless’ access Cell free Drawbacks: Potential lag with blood levels Less validated Microspike Electrodes

  38. In vitro Glucose Sensing “Classical” polymer/mediator/enzyme system 0.35 0.30 Current/ � A 0.25 0.20 0.15 3 4 5 6 7 Time/Minutes

  39. Salivary Diagnostics Accessible Already established for drugs & antibody tests and genotyping Drug levels represent ‘free’ Concentration in serum Variable Composition so best suited to threshold measurements Easy to collect Not discrete Sample often requires filtration or centrifugation

  40. Therapeutic Drug Monitoring Paracetamol (acetaminophen) overdose: Clinical decision- to give antidote or not. Currently based on threshold (1.2mM) Clearance rate may be better NCOCH 3 NHCOCH 3 + 0.6V E Time -0.2V O OH PARACETAMOL QUINONEIMINE Double potential Step Chronocoulometry

  41. 8 Electrochemical Cells each with 3 Electrodes Chip Design Automated “On chip” Dilution Series using Chevron Mixers Saliva back pressure comparable to water

  42. Conclusions • Many convergent trends in this area (‘Biofusion’ Bio+Nano+Informatics) • Current developments are piecemeal • Ultimatly it won’t be technology but patient/ clinician acceptance/willingness to pay that determines take up

  43. Acknowledgements • Group • Funders – Dr Thao Le – Wellcome Trust – Dr Anna Radomska – EPSRC – Dr Sanjiv Sharma – Philips Electronics – Dr Kostis Michelakis – Technology Strategy – Yanyang Zhang Board – Steve Scott – Kit Kanok
