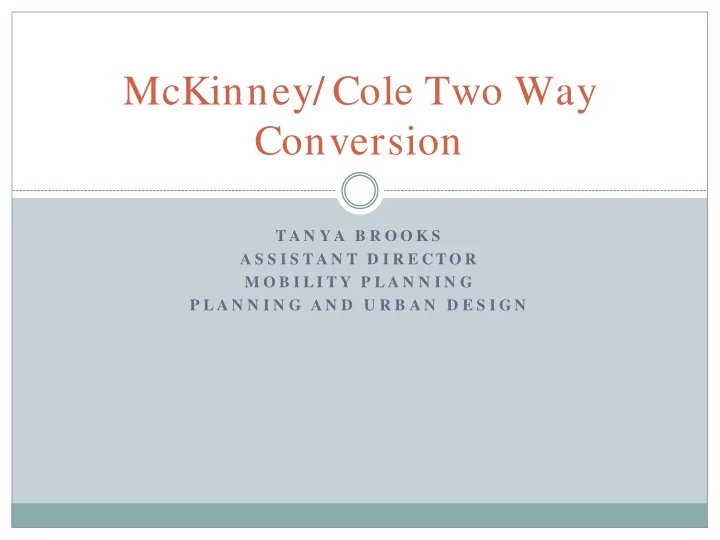

McKinney/ Cole Two Way Conversion T A N Y A B R O O K S A S S I S T A N T D I R E C T O R M O B I L I T Y P L A N N I N G P L A N N I N G A N D U R B A N D E S I G N Presentation Overview Introductions Project Scope and Goals


  1. McKinney/ Cole Two Way Conversion T A N Y A B R O O K S A S S I S T A N T D I R E C T O R M O B I L I T Y P L A N N I N G P L A N N I N G A N D U R B A N D E S I G N

  2. Presentation Overview  Introductions  Project Scope and Goals  Project Area Overview  Existing Traffic Volumes  Accident Data  Tw0-Way Conversion Traffic Study Summary  Parking Impacts  Thoroughfare Plan Amendment Process 2

  3. Introductions  Council Member Philip T. Kingston, City Council District 14  Planning and Urban Design, Mobility Planning Team  Tanya Brooks, Assistant Director  Jared White, Manager Bicycle & Trails Program  Kimberly Smith, Senior Planner  Mark Brown, Senior Planner  Sherman Livingston, Project Coordinator 3

  4. Project Scope and Goals  Uptown Dallas, Inc. submitted a Thoroughfare Plan application to convert McKinney & Cole Avenue from one-way to two-way operation;  Project Limits: Allen St. to Harvard Ave.  ~2 miles project area  Project Goals  To restore the two-way operations  Slow vehicle speeds  Simplify navigation for local residents and business patrons 4

  5. Project Area 5

  6. Existing Operations Thoroughfare Plan Designation - the following roads are designated as ‘Existing Couplets’ 1. McKinney – 3-lanes northbound , 2. Cole/ Carlisle/ Allen – 3-lanes southbound 6

  7. Proposed Operations Proposed Thoroughfare Plan Designation 1. McKinney – 2-lanes northbound and 1-lane southbound, 2. Cole/ Carlisle/ Allen – 2-lane southbound and 1-lane northbound 7

  8. Two-Way Conversion Traffic  Traffic Data McKinney Cole/ Carlisle/ Allen Vehicles Vehicles  Traffic Counts Lim its Year per Day Year per Day ~ Total  1993 to 2014 Allen to Bowen 200 7,062 2009 7,326 14,388 2 Traffic counts Bowen to Hall 200 9,435 2001 5,712 15,147  ~7,000 - 20,000 4 vehicles per day Hall to 2005 12,693 2001 5,712 18,405 throughout Lemmon project area Lemmon to 200 10,183 2004 9,563 19,746 Blackburn 4 Blackburn to 200 7,336 2009 4,441 11,777 Fitzhugh 9 Fitzhugh to 200 5,554 2004 5,350 10,904 Knox 9 Knox to 200 3,592 2003 3,563 7,155 Monticello 2 8

  9. Accident Data  January 2013 to May 2016  464 crashes within the Study Area  2 fatalities  McKinney and Elizabeth  Carlisle and Hall  High Crash locations  McKinney • @ Lemmon (WB) 43 accidents • @ East Lemmon 22 accidents • @ Fitzhugh 22 accidents  Cole/ Carlisle • @ Lemmon (WB) 54 accidents  Cole • @ Blackburn 21 accidents • @ East Lemmon 21 accidents 9

  10. Two-Way Conversion Traffic  Accident Data Crash Types Total Fixed Headon Left Ped or Right Rear Right Side U- Trolley Road Crashes Object Turn Cyclist Angle End Turn Swipe Turn McKinney 246 13 1 9 16 89 51 3 58 1 6 Carlisle & 200 10 4 7 9 54 39 0 73 0 3 Cole Allen 18 3 1 0 1 9 3 0 1 0 2 Study 464 26 6 16 26 152 93 3 132 1 11 Area Total 10

  11. Level of Service  Level of Service (LOS) is a qualitative measure describing operational conditions within a traffic stream, based on service measures such as speed and travel time, freedom to maneuver, traffic interruptions, comfort, and convenience. (LOS) Average Delay per Vehicle General Description (seconds per vehicle) A Less than or equal to 10 seconds Free Flow B 10-20 seconds Stable flow (slight delays) C 20-35 seconds Stable flow (acceptable delays) D 35-55 seconds Approaching unstable flow (tolerable delay, occasionally wait through more than one signal cycle before proceeding) E 55-80 seconds Unstable flow (intolerable delay) F Greater than 80 seconds Forced flow (jammed) 11

  12. Two-Way Conversion Traffic Study Summary (AM Peak Traffic Period) Intersection Existing Tra ffic Cond itions 2 W a y conv ersion Yea r 20 35 Lev el of Serv ice Av era g e Dela y p er Lev el of Serv ice Av era g e Dela y p er Vehicle (Second s) Vehicle (Second s) McKinney @ Oak Grove B 14.0 C 21 McKinney @ Bowen B 13.2 B 14 McKinney @ Hall B 10.6 B 10.3 McKinney @ Lemmon A 9.9 A 9.5 McKinney @ Cityplace D 37.1 C 23.5 McKinney @ Blackburn C 22.3 C 34.6 McKinney @ Fitzhugh B 11.8 B 1.6 McKinney @ Knox B 14.6 B 11.0 Carlisle @ Hall A 8.9 B 10.9 Cole @ Lemmon C 21.7 C 25.7 Cole @ Lemmon East B 16.1 C 29.4 Cole @ Blackburn B 16.2 C 31.2 Cole @ Fitzhugh B 11.7 B 13.4 Cole @ Knox B 11.0 A 9.8 12

  13. Two-Way Conversion Traffic Study Summary (PM Peak Traffic Period) Intersection Existing Tra ffic Cond itions 2 W a y conv ersion Yea r 20 35 Lev el of Serv ice Av era g e Dela y p er Lev el of Serv ice Av era g e Dela y p er Vehicle (Second s) Vehicle (Second s) McKinney @ Oak Grove B 16.0 C 27.2 McKinney @ Bowen C 20.3 B 10.3 McKinney @ Hall C 20.6 B 17.0 McKinney @ Lemmon D 39.4 C 20.3 McKinney @ Cityplace D 47.5 B 14.6 McKinney @ Blackburn B 15..0 D 51.6 McKinney @ Fitzhugh B 17.6 B 16.9 McKinney @ Knox C 29.7 C 23.8 Carlisle @ Hall B 12.3 B 16.0 Cole @ Lemmon B 19.2 D 35.1 Cole @ Lemmon East C 24.1 C 25.4 Cole @ Blackburn B 19.8 C 31.4 Cole @ Fitzhugh B 14.3 C 29.6 Cole @ Knox B 10.5 B 13.5 13

  14. Parallel Parking Impact Block Existing Proposed (2 way Net Gain/ Loss with (Approx) conversion only) only 2 way conversion McKinney (Hall to Lemmon) 8 0 -8 McKinney (Haskell to Elizabeth) 50 50 0 McKinney (Elizabeth to Fitzhugh) 20 20 0 McKinney (Fitzhugh to Lee) 12 12 0 McKinney (Lee to Oliver) 20 20 0 McKinney (Oliver to Armstrong) 20 20 0 McKinney (Armstrong to Knox) 10 10 0 McKinney (Knox to Hester) 25 25 0 McKinney (Hester to Monticello) 30 30 0 Harvard/ Cole loop north of 15 25 +10 Monticello 14

  15. Parallel Parking Impact Block Existing Proposed (2 way Net Gain/ Loss with only 2 (Approx) conversion only) way conversion Cole (Monticello to Hester) 30 30 0 Cole (Hester to Knox) 25 25 0 Cole (Knox to Armstrong) 7 7 0 Cole (Armstrong to Oliver) 20 20 0 Cole (Oliver to Lee) 20 20 0 Cole (Lee to Fitzhugh) 20 20 0 Cole (Fitzhugh to Elizabeth) 30 30 0 Cole (Elizabeth to Haskell) 60 60 0 Carlisle (Bowen to Hall) 15 spaces 0 -15 Carlisle (Hall to Lemmon) 20 20 0 15

  16. Operations Option 3 Lane 3 Lane Cole 4 Lane Cole McKinney Segm ents Segm ents Segm ents Existing 2 NB traffic lanes, 1 2 SB traffic lanes, 1 3 SB traffic lanes, 1 off-peak parking off-peak parking full time parking lane lane lane 2 way only 2 bi-directional 2 bi-directional 1 SB lanes, 1 NB traffic lanes, 1 traffic lanes, 1 lane, 2 full time parking lane parking lane parking lane 2 way 1 shared 1 shared 1 shared streetcar/ w/ MATA streetcar/ NB traffic streetcar/ SB traffic SB lanes, 1 SB lane, streetcar lane, 1 NB lane, 1 lane, 1 SB lane, 1 1 NB lane, full time SB lane NB lane parking lane 16

  17. Thoroughfare Plan Amendment Process  ~Three month process  Interdepartmental staff review to gather information from various City departments and other agencies  Community meeting with the property owners to discuss amendment and address concerns when necessary  May  August 8  Item considered and voted on by three bodies: 1) City Plan Commission Transportation Committee; 2) City Plan Commission (Public Hearing); and 3) City Council (Public Hearing) 17

  18. McKinney/ Cole Two-Way Conversion  Possible MATA extension  Proposed concept does not preclude MATA streetcar extension  Streetcar will use shared travel lane with vehicles in order to accommodate vehicular traffic flow  Parking will be impacted 18

  19. 4-Lane Segments 12’ 12’ 12’ 19 Streetcar+Auto

  20. 3-Lane Segments 12’ 12’ 12’ 20 Streetcar+Auto

  21. 12’ 12’ 12’ 21 Streetcar+Auto

  22. 22

  23. 23

  24. 24

  25. 25

  26. 26

  27. 27

  28. 28

  29. 29

  30. 30
