Run-time Assurance for UAVs using Stochastic Modeling and Reachability Analysis Hansol Yoon, Yi Chou, Live Green Eric Frew and Sriram Sankaranarayanan University of Colorado, Boulder FMCAD18 Student Forum October 31, 2018 * Unmanned

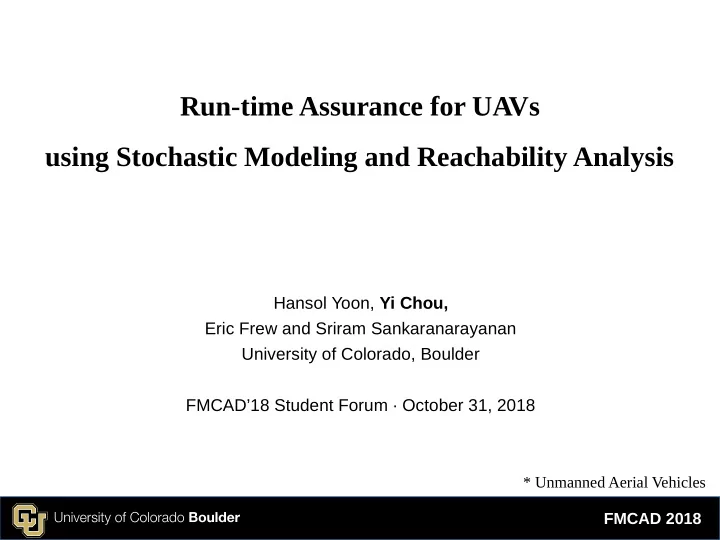

  1. Run-time Assurance for UAVs using Stochastic Modeling and Reachability Analysis Hansol Yoon, Yi Chou, Live Green Eric Frew and Sriram Sankaranarayanan University of Colorado, Boulder FMCAD’18 Student Forum · October 31, 2018 * Unmanned Aerial Vehicles FMCAD 2018

  2. Motjvatjon & Objectjve • UAVs are increasingly common in crowded urban spaces with risks to life and property due to disturbances such as wind. • Forecasts future UAVs positions to predict and avoid collisions. • Quantify risk of collisions with fixed obstacles. source: ABC news source: Global Trade Magazine FMCAD 2018

  3. Predictjve Monitoring Framework <Architecture for the framework> Core Position Model Data Flight Flight UAV UAV Data Data Platform Platform Future Velocity Forecast sub-model Warnings, Control (future work) Deviation/Disturbance sub-model Model Model Model Reachability Reachability Inference Inference Analysis Analysis Waypoint Waypoint Guidance Guidance Future Acceleration Algorithm Algorithm Waypoints FMCAD 2018

  4. Collision Predictjon Results ■ Evaluation on Talon UAV Flight Test Data Real SAFE COLLISION Prediction SAFE 94 0 COLLISION 5 94 NOT SURE 1 6 T e s t c o n d i t i o n s : 1 . P r o b a b i l i t y o f c o l l i s i o n > = 0 . 4 2 . P r e d i c t i o n t i m e h o r i z o n : 2 5 s e c s 3 . T h e d i s t a n c e o f t h e c e n t e r o f a n o b s t a c l e Square: Obstacle - 2 5 m f o r S A F E t e s t s Red line: Ground truth trajectory - 0 m f o r C O L L I S I O N t e s t s Blue lines: Predicted trajectories 4 . Wi n d : 3 m / s FMCAD 2018
