Light-Duty Slides Specifications at a Glance Products in this - PDF document

Light-Duty Slides Specifications at a Glance Products in this Model Max. Load Travel Cross Detent Disconnect Page Capacity Section Width category carry loads 2601 75 lbs. Full .50" Hold-in None 13 from 75 to 108 [34 kg]

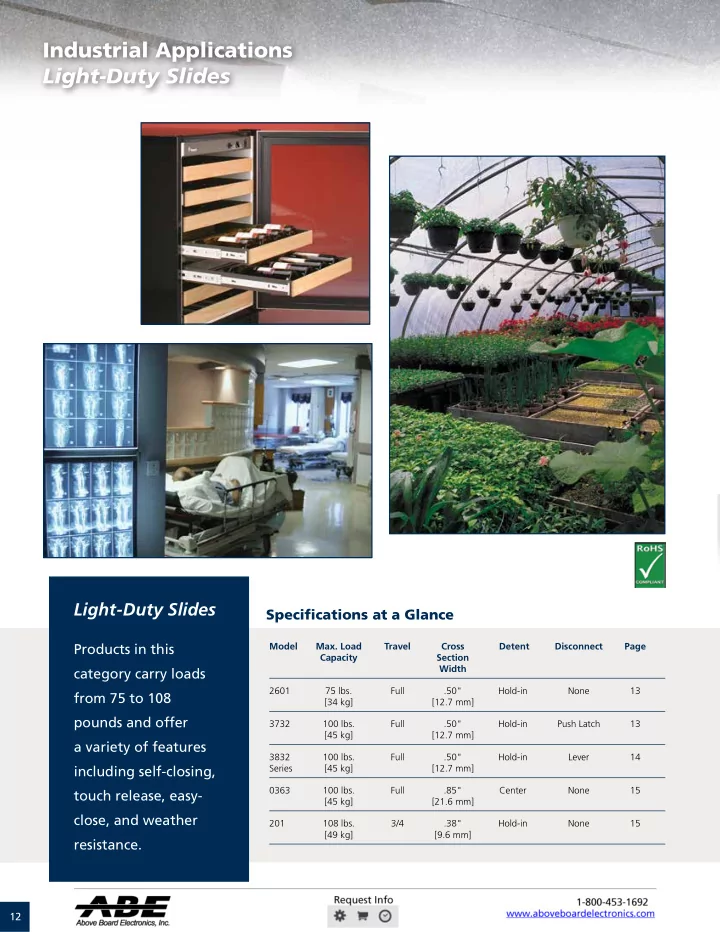

  1. Light-Duty Slides Specifications at a Glance Products in this Model Max. Load Travel Cross Detent Disconnect Page Capacity Section Width category carry loads 2601 75 lbs. Full .50" Hold-in None 13 from 75 to 108 [34 kg] [12.7 mm] pounds and offer 3732 100 lbs. Full .50" Hold-in Push Latch 13 [45 kg] [12.7 mm] a variety of features 3832 100 lbs. Full .50" Hold-in Lever 14 Series [45 kg] [12.7 mm] including self-closing, 0363 100 lbs. Full .85" Center None 15 touch release, easy- [45 kg] [21.6 mm] close, and weather 201 108 lbs. 3/4 .38" Hold-in None 15 [49 kg] [9.6 mm] resistance. 12

  2. 2601 Slide Slide Load Length Travel Rating Ideal for use in tool boxes, Lbs./Pr. laboratory furniture, and 7.87 8.23 35 store fixtures. [200] [209] [16] 9.84 10.20 50 [250] [259] [23] 11.81 12.13 70 [300] [308] [32] 13.78 14.06 75 [350] [357] [34] 15.75 15.98 70 [400] [406] [32] 17.72 17.95 65 • Load capacity up to 75 lbs. [450] [456] [30] [34 kg]/pair 19.69 19.88 63 • Full extension [500] [505] [29] 21.65 21.81 60 • .50" [12.7 mm] side space [550] [554] [27] • Hold-in detent 1.03" [26.3] • Non-disconnect • Even lengths 8"–22" [200–550 mm] .50" [12.7] 3732 Slide Slide Load Length Travel Rating A low profile slide Lbs./Pr. suitable for shallow 11.81 11.50 60 drawers. [300] [292] [27] 13.78 14.00 75 [350] [355] [34] 15.75 16.00 100 [400] [406] [45] 17.72 18.00 100 [450] [457] [45] 19.69 20.00 100 [500] [508] [45] 21.65 22.00 100 • Load capacity up to 100 lbs. [550] [559] [45] [45 kg]/pair 23.62 24.00 85 • Full extension [600] [610] [39] 25.59 26.00 70 • .50" [12.7 mm] side space [650] [660] [32] 1.46" • Hold-in detent 27.56 28.00 60 [37] • Unhanded push latch disconnect [700] [711] [27] • Even lengths 12"–28" [300–700 mm] .50" [12.7] 13

  3. 3832 Series Slide Slide Load Length Travel Rating These full extension slides offer a host of Lbs./Pr. 5.84 5.5 40 features well suited for drawers or pull-out [148] [140] [18] trays in medical, industrial, or mobile storage 7.84 8.00 45 projects. [199] [203] [20] 9.84 9.57 50 [250] [243] [23] 11.81 12.00 60 [300] [305] [27] 13.78 14.00 75 [350] [355] [34] 15.75 16.00 100 [400] [406] [45] 1.80" 17.72 18.00 100 [45.7] [450] [457] [45] 19.69 20.00 100 Common Features [500] [508] [45] 21.65 22.00 100 • Load capacity up to 100 lbs. [550] [559] [45] .50" [45 kg]/pair [12.7] 23.62 24.00 85 [600] [610] [39] • Full extension 25.59 26.00 70 • .50" [12.7 mm] side space [650] [660] [32] • Lever disconnect 27.56 28.00 60 [700] [711] [27] 3832 3832TR/HDTR 3832EC Standard & Heavy-Duty Easy-Close • Hold-in detent Touch Release • Brings drawers to a smooth, • Even lengths 6"–28" [148–700 mm] • 3832TR: 11 pounds of force gentle close to activate 3832SC • Even lengths 14"-28" • 3832HDTR: 17−19 pounds [350–700 mm] Self-Closing of force to activate • 100-lb. [45 kg] load rating • Hold-in feature keeps 3832DO drawers closed • Unique self-closing device Detent-Out • Opening mechanism requires • Full extension • Detent-out holds drawers 1/16" travel inward to activate • Even lengths 14"–26" [350–650 mm] in an open position • Propels drawers open • Even lengths 10"–28" approximately 2" from the 3832HDSC [250–700 mm] closed position Heavy-Duty Self-Closing • Even lengths 12"–28" [300–700 mm] • Stronger self-closing device CH3832 • Optional white electrocoat finish • Even lengths 12"–28" [300–700 mm] Weather-Resistant • Special coating provides eight times more protection than standard zinc finish • Stainless steel ball retainer, ball bearings, and rivets • Even lengths 10"–28" [250–700 mm] 14

  4. 0363 Slide Slide Load Length Travel Rating Full extension and two-way travel (x2) Lbs./Pr.* 15.75 34.00 88 provide access for carts, drive-through [400] [864] [40] window drawers, and more. 19.69 42.00 100 [500] [1064] [45] 23.62 50.00 100 [600] [1264] [45] 27.55 58.00 88 [700] [1464] [40] • Load capacity up to 100 lbs. [45 kg]/pair* • Full extension from center point in both directions • Hold-in detent at center • .85" [21.6 mm] side space • Non-disconnect 1.43" • Tested to 80,000 cycles [36.4] • Available lengths: 16", 20", 24", and 28" [400 mm, 500 mm, 600 mm, 700 mm] .85" [21.6] 201 www.magma.com Slide Slide Load Length Travel Rating Lbs./Pr. Good for POP displays, 12.00 9.00 108 industrial workstations, [305] [229] [49] or medical applications. 14.00 11.00 103 [356] [279] [47] 16.00 12.00 95 [406] [305] [43] 18.00 13.00 90 [457] [330] [41] 20.00 15.00 82 [508] [381] [37] 22.00 16.00 75 [559] [406] [34] • Load capacity up to 108 lbs. 24.00 17.00 67 [49 kg]/pair [610] [432] [30] • 3/4 extension 26.00 19.00 60 [660] [483] [27] • .38" [9.6 mm] side space 28.00 20.00 55 • Non-disconnect [711] [508] [25] 1.38" [35.1] • Hold-in detent • Even lengths 12"–28" [305–711 mm] • Optional enclosure bracket .38" mounting kit: P/N 4180-0222-XE [9.6] 15
