Lecture 3: Loss Functions and Optimization Fei-Fei Li & Justin - PowerPoint PPT Presentation

Lecture 3: Loss Functions and Optimization Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 1 April 11, 2017 Administrative Assignment 1 is released: http://cs231n.github.io/assignments2017/assignment1/ Due Thursday April 20 ,

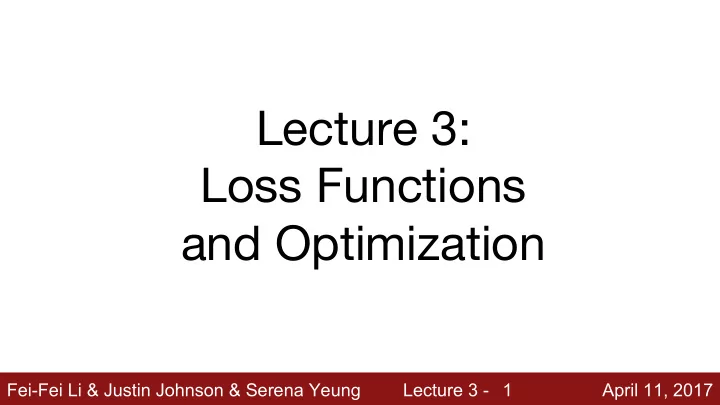

  1. Lecture 3: Loss Functions and Optimization Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 1 April 11, 2017

  2. Administrative Assignment 1 is released: http://cs231n.github.io/assignments2017/assignment1/ Due Thursday April 20 , 11:59pm on Canvas (Extending due date since it was released late) Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 2 April 11, 2017

  3. Administrative Check out Project Ideas on Piazza Schedule for Office hours is on the course website TA specialties are posted on Piazza Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 3 April 11, 2017

  4. Administrative Details about redeeming Google Cloud Credits should go out today; will be posted on Piazza $100 per student to use for homeworks and projects Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 4 April 11, 2017

  5. Recall from last time : Challenges of recognition Viewpoint Illumination Occlusion Deformation This image by Umberto Salvagnin This image is CC0 1.0 public domain This image by jonsson is licensed is licensed under CC-BY 2.0 under CC-BY 2.0 Clutter Intraclass Variation This image is CC0 1.0 public domain This image is CC0 1.0 public domain Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 5 April 11, 2017

  6. Recall from last time : data-driven approach, kNN 1-NN classifier 5-NN classifier train test train validation test Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 6 April 11, 2017

  7. Recall from last time : Linear Classifier f(x,W) = Wx + b Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 7 April 11, 2017

  8. Recall from last time : Linear Classifier TODO: 1. Define a loss function that quantifies our unhappiness with the scores across the training data. 2. Come up with a way of efficiently finding the parameters that minimize the loss function. (optimization) Cat image by Nikita is licensed under CC-BY 2.0; Car image is CC0 1.0 public domain; Frog image is in the public domain Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 8 April 11, 2017

  9. Suppose: 3 training examples, 3 classes. With some W the scores are: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car -1.7 2.0 -3.1 frog Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 9 April 11, 2017

  10. Suppose: 3 training examples, 3 classes. A loss function tells how With some W the scores are: good our current classifier is Given a dataset of examples Where is image and 3.2 1.3 2.2 cat is (integer) label 5.1 4.9 2.5 Loss over the dataset is a car sum of loss over examples: -1.7 2.0 -3.1 frog Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 10 April 11, 2017

  11. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car -1.7 2.0 -3.1 frog Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 11 April 11, 2017

  12. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example “Hinge loss” where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car -1.7 2.0 -3.1 frog Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 12 April 11, 2017

  13. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car -1.7 2.0 -3.1 frog Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 13 April 11, 2017

  14. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car = max(0, 5.1 - 3.2 + 1) +max(0, -1.7 - 3.2 + 1) -1.7 2.0 -3.1 frog = max(0, 2.9) + max(0, -3.9) = 2.9 + 0 2.9 Losses: = 2.9 Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 14 April 11, 2017

  15. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car = max(0, 1.3 - 4.9 + 1) +max(0, 2.0 - 4.9 + 1) -1.7 2.0 -3.1 frog = max(0, -2.6) + max(0, -1.9) = 0 + 0 2.9 0 Losses: = 0 Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 15 April 11, 2017

  16. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car = max(0, 2.2 - (-3.1) + 1) +max(0, 2.5 - (-3.1) + 1) -1.7 2.0 -3.1 frog = max(0, 6.3) + max(0, 6.6) = 6.3 + 6.6 2.9 0 12.9 Losses: = 12.9 Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 16 April 11, 2017

  17. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Loss over full dataset is average: -1.7 2.0 -3.1 frog L = (2.9 + 0 + 12.9)/3 2.9 0 12.9 Losses: = 5.27 Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 17 April 11, 2017

  18. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q: What happens to -1.7 2.0 -3.1 loss if car scores frog change a bit? 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 18 April 11, 2017

  19. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q2: what is the -1.7 2.0 -3.1 min/max possible frog loss? 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 19 April 11, 2017

  20. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q3: At initialization W -1.7 2.0 -3.1 is small so all s ≈ 0. frog What is the loss? 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 20 April 11, 2017

  21. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q4: What if the sum -1.7 2.0 -3.1 was over all classes? frog (including j = y_i) 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 21 April 11, 2017

  22. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q5: What if we used -1.7 2.0 -3.1 mean instead of frog sum? 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 22 April 11, 2017

  23. Suppose: 3 training examples, 3 classes. Multiclass SVM loss: With some W the scores are: Given an example where is the image and where is the (integer) label, and using the shorthand for the scores vector: the SVM loss has the form: 3.2 1.3 2.2 cat 5.1 4.9 2.5 car Q6: What if we used -1.7 2.0 -3.1 frog 2.9 0 12.9 Losses: Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 23 April 11, 2017

  24. Multiclass SVM Loss: Example code Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 24 April 11, 2017

  25. E.g. Suppose that we found a W such that L = 0. Is this W unique? Fei-Fei Li & Justin Johnson & Serena Yeung Lecture 3 - 25 April 11, 2017
