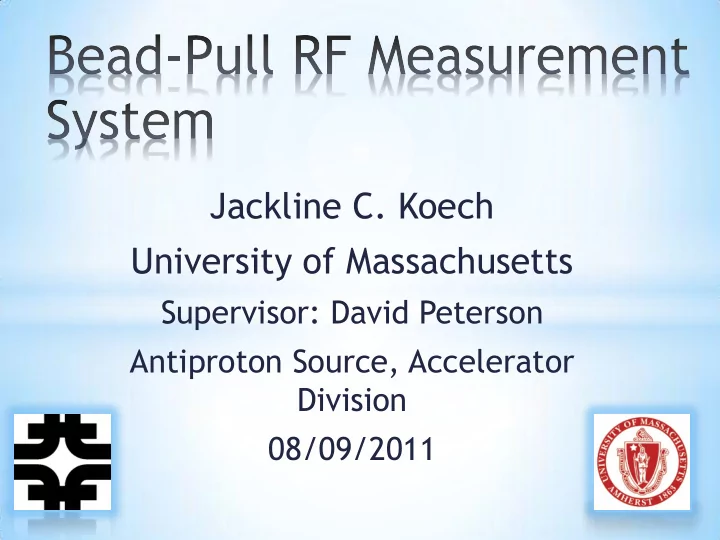

Jackline C. Koech University of Massachusetts Supervisor: David Peterson Antiproton Source, Accelerator Division 08/09/2011 Bead-Pull RF Measurement System Motivation Project Setup LabVIEW Program Test Measurements Bead


  1. Jackline C. Koech University of Massachusetts Supervisor: David Peterson Antiproton Source, Accelerator Division 08/09/2011

  2.  Bead-Pull RF Measurement System  Motivation  Project Setup  LabVIEW Program  Test Measurements

  3.  Bead (dielectric/metallic) being pulled through a cavity  Take Resonant frequency measurements  Goal: Know the electric field distribution inside the cavity.  Slater Perturbation Theory

  4.  Most accelerators use RF cavities  After fabrication, use Bead-Pull System to ensure that the electric field distribution is as designed Design www.bruker-est.com Fabrication Testing

  5.  Cavity  Bead, Thread & Pulley System  Motor  Network Analyzer  Computer (control software)

  6. Step Motor Network Analyzer  HT23-601 by Applied Motions  20,000 steps/rotation  Agilent 8720ES  Approx. 255 steps moves  Takes the Radio Frequency measurements the bead by 1mm

  7. • LabVIEW program that controls both the Step Motor and Network Analyzer • Check the accuracy of the measurements from the Network Analyzer and the motion of the Step Motor

  8. 4. Sends a signal Bead-Pull System to the cavity and Network Analyzer (Pulleys and Thread, reads response Bead and the Cavity) 5. Reads 3. Tell the measurements Network analyzer 2. Moves the Bead from the what Network measurements to Analyzer take and how 1. Tells the Step Step Motor & Step Motor Motor when to Computer Driver move and by how (LabVIEW Program) much

  9.  National Instruments’ Software  Graphical Programming Environment A LabVIEW program is called a virtual instrument (VI) Block Diagram Front Panel

  10. Network Step Motor VI Analyzer VI Control the motion of the Control how bead measurements are taken Overall Bead Pull System VI Operates both the Step Motor VI and Network Analyzer VI as required

  11. Pill Box Test Cavity Measurements 1.48722 1.48720 1.48718 Resonance Frequency in GHz 1.48716 1.48714 1.48712 1.48710 1.48708 1.48706 1.48704 1.48702 0 20 40 60 80 100 120 140 160 180 200 Data Points The bead-pull system moves the bead accurately as required The system acquires the data correctly from the Network Analyzer

  12. We have successfully developed a software that controls the Bead-Pull System hardware -Moves the bead accurately -Takes Measurements accurately

  13.  Fermilab SIST committee  Supervisor: David Peterson  Ding Sun and His group  Mentors: Cosmore Sylvester and Mayling Wong  DrJames Davenport.  Antiproton Source Department
