IQC5000B Series RF Signal Record and Playback Value of RF Streaming - PowerPoint PPT Presentation

IQC5000B Series RF Signal Record and Playback Value of RF Streaming Evidence of what happened Designers are not always sure what theyre looking for: good signals well understood bad signals can exist in many forms

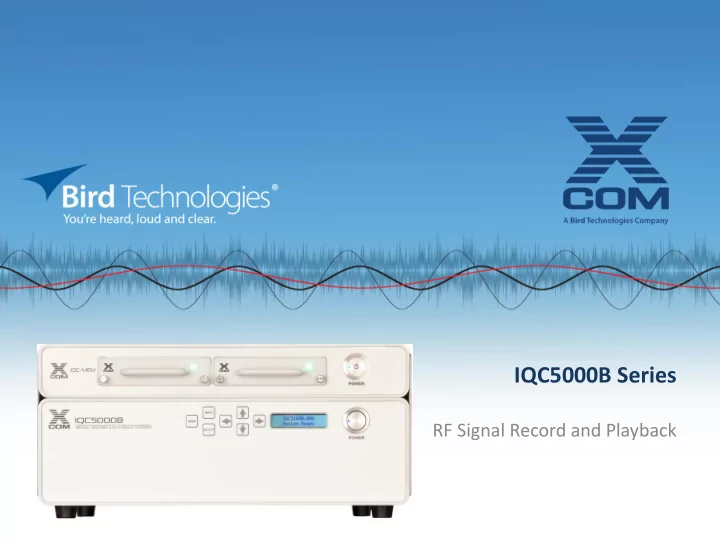

  1. IQC5000B Series RF Signal Record and Playback

  2. Value of RF Streaming • Evidence of what happened – Designers are not always sure what they’re looking for: • “good” signals well understood • “bad” signals can exist in many forms – 100% capture allows engineers to discover anomalies • Characterize precise behavior in multiple domains • Terabyte memories provide capture times from minutes to days – RF streaming creates signal archives • Compare to previous events • Manipulate and re-transmit signals Cannot Always Model or Capture Anomalies in the Lab 2 3/5/2015

  3. The Measurement Problem • It is often difficult to detect or predict the occurrence of signals of interest – Stray emissions from a known device – Unauthorized emissions – Unpredictable interactions in complex RF environments Lockheed Martin F-35 Joint Strike Fighter • Streamed signals are information – Undeniable proof of what happened – Use data to find other data – Modify and replay recordings to stress and margin test receivers 3 3/5/2015 Asymmetric Threats

  4. Simulate and Analyze Real-World Environments Record Search Analyze Simulate Replay 100% capture, trigger, ID unique signatures Perform detailed Create new signal Regenerate signals at mark signals of interest and signal anomalies signal analysis scenarios from real-world carriers up to 44 GHz waveforms IQC5000B Spectro-X Spectro-X RF Editor IQC5000B

  5. IQC5000B Series Signal Record and Playback • Signal Capture and Replay – 40 and 165 MHz – 16 bit LVDS interface IQC5000B Series – Built-in IQ and fixed RF playback – IRIG-B and GPS Inputs – Triggers and Markers • Memory – Internal: 80 min @ 165 MHz – External: 5 hours @ 165 MHz • Single and Dual Channel – Time synchronous ops – Supports record and replay 5 3/5/2015

  6. IQC5000B Designed for Operations PCIe bus for high-speed External Storage Output Offload to workstation Channel 1 IQ Channel 2 IQ Mini-SAS for streaming Analog outputs Analog outputs to the MEM module AC or 12 volt operation for Remote environments Channel 1 IQ Channel 2 IQ Digital inputs Digital inputs External 10 MHz. Reference AC or 12 volt operation for Remote environments Synchronize operation Correlate data to IRIG-B with other system events and GPS time and location Automate record & playback Tag incoming data for operations via SCPI commands precise event marking 6 3/5/2015

  7. Memory Configurations • Operational Security friendly • Removable 2TB & 4TB memory options • Enhanced File System • Smaller Size Weight And Power (SWAP) 2TB & 4TB MEM Module Option • Support of existing 8TB & 15TB options • Capacity for longer duration recordings • Provides up to 20 hours of record time 8TB & 15TB External Memory Option 7

  8. IQC5000B Applications: Co-Channel Recording • Threat-response characterizations – When did the threat appear? – How long did it take to respond to the threat? – What impact did interference have on response times? • EMI/TEMPEST testing – What emissions exceeded design thresholds? – Were there any transient emissions? • MIMO systems – Timing correct between the 2 receive paths? – Did environment impact each receive path? – Interference present when 2 channels recorded? 8 3/5/2015

  9. IQC5000B Applications: Multiband Recording • Satellite uplink/downlink – On which link did the interference occur? – When did the interference occur? – What was the impact on signal quality? • Cellular forward and reverse links – Did the base station generate stray emissions when it changed modes? – Why are calls being dropped during rush hour? • Spectrum studies – Record contiguous blocks of spectrum – Document spectrum usage next to assigned channels 9 3/5/2015

  10. IQC5000B Applications : Geospatial Studies • Simultaneously record RF and GPS – 100% capture of real-world environment for minutes and hours Channel 1 • Recreate the environment back in the lab – Where was I when the emitter was first detected? – How long did the emitter stay on? – Were there other signals of interest in the Channel 2 vicinity of the first? – What signals require detailed signal analysis? 10 3/5/2015

  11. Modern T&M Solutions have Limited On-Board Memory Display Signal Analyzer Block Diagram Down- Preselect Digitize Store Process Convert RF RAM µP ADC DSP Input Fixed LO Batch Continuous Processing Processing X-COM Interface • Monitoring stops while the receiver is post-processing • Events lasting longer than the available memory are lost • Trigger settings valid only for one set of conditions If the system fails to capture the event, its gone forever 11 3/5/2015

  12. Plug-Compatible with Industry-Leading VSAs and VSGs Capture Record Playback Stream digital Stream analog Keysight IQC5000B Series Keysight I&Q samples I&Q samples RF RF input Output Rohde & Schwarz Rohde & Schwarz LAN PCIe Control Offload Analyze Software • Spectro -X Tektronix • RF Editor •MATLAB • 89600B • SignalVu • Continuously record 100% of RF spectrum • High-quality signal • Use high-quality • No need for prior knowledge of signal characteristics generator recreates • Search and identify signals of interest signal analyzer as RF at any desired • Manipulate and re-transmit signals frequency RF front-end Capture and Playback with Exceptional Signal Fidelity 12 3/5/2015

  13. How Much Spectrum Capture Time Can Be Stored? Acquisition Data Rate Time Time Time Time Applications BW 2 TB 4 TB 7.5 TB 15 TB IEEE 802.11ac 165 MHz 800 MB/s 40 min 83 min 150 min 300 min Military radios 110 MHz 600 MB/s 50 min 111 min 200 min 400 min Bluetooth Wi-Fi 40 MHz 200 MB/s 2.7 hr 5.5 hr 10 hr 20 hr Airport radar 20 MHz 100 MB/s 5.5 hr 11 hr 20 hr 40 hr DVB-S DVB-T 10 MHz 50 MB/s 11 hr 22 hr 40 hr 80 hr Zigbee GSM 1 MHz 6.25 MB/s 3.5 days 7.4 days 13 days 26 days Tetra Hours or Days of Spectrum Can be Captured and Stored 13 3/5/2015

  14. Price Points – US Commercial Pricing Good Better Best $39,000 $64,000 $92,000 40 MHz Single-Channel 165 MHz Single-Channel 165 MHz Dual-Channel Record and Playback Record Record and Playback 8 Tbyte Memory (>2 hours) 4TB Memory (>5 hours) 15 Tbytes Memory (>5 hours) 14 3/5/2015

  15. Spectro-X 4.0 – Multichannel Signal Analysis • Four-channel signal analysis – Unlimited file sizes – Multi-domain analysis Spectro-X 4 Software – Correlated markers – File alignment +/- 1 sample • Multiple search engines – Carrier, wireless, arbitrary, pulse – Prune and sort results • Export data – Perform detailed analysis with MATLAB, Keysight 89600B and Tektronix SignalVu – Save data as reference files 15 3/5/2015

  16. RF Editor Signal Creation Software (Make “Movies” of Your Recordings) Create composite I&Q file Loop segments at specific intervals Filter signals to reduce transition transients Choose recordings From library Independent, parallel Add frequency- tracks can be precisely shifted copies of time-synchronized original signal 16 3/5/2015

  17. Stitching Allows Replay of Just “Interesting” Segments Keysight 89600B Stitched Matlab IQ File Original Recording Stitch Post Process Tektronix SignalVu Search Result Time Locations Dramatically Reduce File Sizes and Accelerate Post-Processing 17 3/5/2015

  18. IQC5000B Record GUI Single Button Start Record/Playback Recorded Files Record PCIe High Configuration Speed Offload Dual Channel Ops 18

  19. IQC5000B Playback GUI Playback in Progress Double-click File for Playback 19

  20. Record Configuration 3 Ways to Start/Stop Recordings 20

  21. Record Start (Advanced) 21

  22. Record Stop (Advanced) 22

  23. X-COM RF Streaming Summary • IQC5000B Spectrum Record & Playback – Enables streaming of “Big RF Data” – Up to 165 MHz record/playback through 50+ GHz – Dual-channel operation – Plug-compatible with leading signal analyzers and vector signal generators • RF streaming requires new tools – Spectro-X to visualize, search and identify signals of interest – RF Editor to manipulate I&Q files for signal simulation 23 3/5/2015
