Interactions of actinides with cement corrosion products in chloride rich solutions: modelling and experimental results V. Metz, B. Kienzler, M. Altmaier, A. Bauer, E. Bohnert, M. Schlieker Institute for Nuclear Waste Disposal (INE) Research

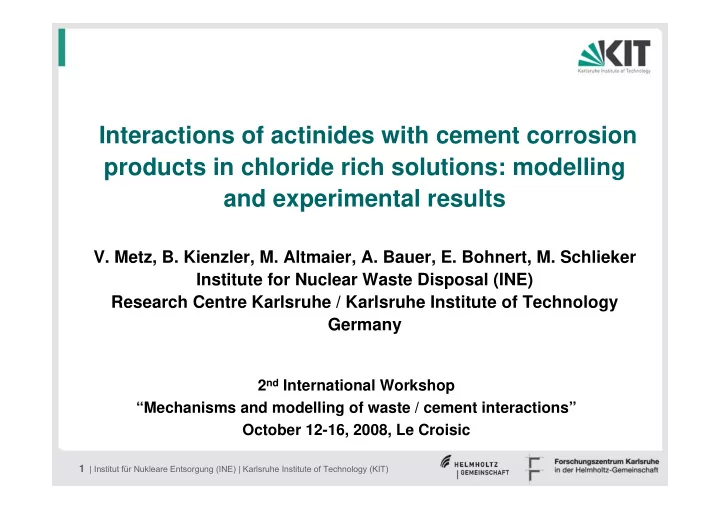

  1. Interactions of actinides with cement corrosion products in chloride rich solutions: modelling and experimental results V. Metz, B. Kienzler, M. Altmaier, A. Bauer, E. Bohnert, M. Schlieker Institute for Nuclear Waste Disposal (INE) Research Centre Karlsruhe / Karlsruhe Institute of Technology Germany 2 nd International Workshop “Mechanisms and modelling of waste / cement interactions” October 12-16, 2008, Le Croisic 1 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  2. Acknowledgments F. Geyer, S. Hilpp, M. Nesovic, M. Plaschke, J. Römer, E. Soballa and C. Walschburger (INE) for carrying out DTA, ICP-MS, OES, SEM- EDS, Raman and XRF analyses R. Odoj and team for core drilling at FZJ-IEF6 K. Garbev (ITC-TAB) for assistance in evaluating XRD data HMGU Asse and Bundesamt für Strahlenschutz, BfS, for technical support during probing of full-scale experiments and partial funding of the study 2 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  3. Background - Objectives corrosion of cemented radioactive waste forms (LLW / ILW) under conditions of a repository in rock salt durability of cemented waste forms in brine? geochemical evolution of brine / secondary phases? radionuclide retention? • studying corrosion of cement forms in MgCl 2 brine • studying interactions of Np, U with cement corrosion products • comparison of modelling predictions to results of • short-term laboratory experiments with (Np, U doped) cement powders and • long-term full-scale experiments with (Np, U doped) doped waste simulates / ~200 dm 3 cement form blocks 3 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  4. Long-term corrosion experiments • static experiments since 1979/1989 (INE: 1996) • simulated cemented waste samples doped with Cs nat and RN ( 237 Np, U nat , 137 Cs) • waste simulates correspond to products of spent nuclear fuel reprocessing ( Purex process; ~ 10 wt.% NaNO 3 ) • Ordinary Portland Cement • cement paste, water/cement ratio 0.3 – 0.5 • 160 dm 3 hardened cement blocks immersed in 400 dm 3 drums filled with leachant: MgCl 2 -brine (“Q-brine”), NaCl brine, tap water • experiments conducted at ambient conditions of LLW / ILW repository Asse salt mine (490-m level, 28° C) 4 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  5. Long-term corrosion experiments • static experiments since 1979/1989 (INE: 1996) • simulated cemented waste samples doped with Cs nat and RN ( 237 Np, U nat , 137 Cs) • simulates correspond to products of spent nuclear fuel reprocessing ( Purex process; ~ 10 wt.% NaNO 3 ) • Ordinary Portland Cement • cement paste, water/cement ratio 0.3 – 0.5 • 160 dm 3 hardened cement blocks immersed in 400 dm 3 drums filled with leachant: MgCl 2 -brine (“Q-brine”), NaCl brine, tap water • experiments conducted at ambient conditions of LLW / ILW repository Asse salt mine (490-m level, 28° C) 5 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  6. Initial composition of waste simulate (e.g. drum #33) sample #33 • cement phases comprise constituent mass / kg constituent mass / kg ~90% of sample Al (NO 3 ) 3 · 9 H 2 O 0.33 Portland cement 200 • nitrates minor components Ca (NO 3 ) 2 · 4 H 2 O 0.92 water 99.02 • accessories complexing Cr (NO 3 ) 3 · 9 H 2 O 0.06 total 336.00 agents (< 0.6 wt% in solid, Cu (NO 3 ) 2 · 3 H 2 O 0.06 inventory <3*10 -2 molal in Fe (NO 3 ) 3 · 9 H 2 O 0.29 water/cement 0.50 leachant: tartrate, citrate, Mg (NO 3 ) 2 · 6 H 2 O 0.82 oxalate Mn (NO 3 ) 2 · 2 H 2 O 0.03 waste content 11.0% • radionuclides doped in Ni (NO 3 ) 2 · 6 H 2 O 0.04 RN content trace concentrations Zn (NO 3 ) 2 · 6 H 2 O 0.07 U(nat) 5 MBq (few grams Np per sample Na-tartrat · 2 H 2 O 0.61 1 kg U nat per sample) Na-citrat · 2 H 2 O 0.59 Na 2 HPO4 · 12 H 2 O 1.31 significant complexation of U(VI), Np(V) Na 2 MoO 4 · 2 H 2 O 0.10 at aqueous concentrations of “free” 31.11 NaNO3 chelating agents > 10 -2 molal KNO 3 0.02 => scavenging of chelats by Ca 2+ , Mg 2+ …? 0.52 Na-oxalate NaF 0.10 6 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  7. Core drilling in glove box after approaching steady state (with respect to solution composition) termination & core drilling •dry drilling performed at Research Centre Jülich • due to production of contaminated dust drilling in glove box • samples from various depth and lateral positions 7 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  8. Laboratory experiments: Materials and methods (A) cement / brine equilibration experiments inactive corrosion of OPC paste (w/c = 0.4) in Q-, R- and conctr. MgCl 2 -brine at various mass cement / volume brine ratios (0.001 < m/V < 1.1 g cm -3 ) (B) Np, U sorption experiments adding aliquots of 237 Np(V), 233 U(VI) stock solutions to equilibrated cement / brine systems (variation in m cement / V brine ) (C) Np, U solubility experiments • dissolving Np, U solids in equilibrated solution of (A) cement / brine equilibration • dissolving Np, U solids in pure MgCl 2 - and NaCl-solutions (pH variation; NpO 2 , NpO 2 OH, UO 3 :2H 2 O, Na 2 UO 2 O(OH)) static experiments running for 6 – 24 months; Ar atmosphere (pO 2 , pCO 2 ≤ 1 ppm); powders of hardened cement paste (A) and cement corrosion product (B), respectively 8 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  9. Laboratory experiments: solid material (A)cement / brine equilibration experiments - …) OPC paste, w/c = 0.4, without additives (NO 3 oxide content Ca(OH) 2 wt% CaO 66.87 SiO 2 17.29 Al 2 O 3 3.57 Ca-silicates 2000 TiO 2 0.25 1900 1800 Fe 2 O 3 3.27 1700 1600 MnO 0.07 1500 1400 MgO 1.56 1300 1200 K 2 O 1.63 Lin (Counts) 1100 clinker phases: 1000 Na 2 O 0.46 900 silicocarnotite, 800 SO 3 5.02 belite / larnite, d=3.18882 700 600 brownmillerite, 500 400 qypsum, 300 quartz, 200 100 calcite, 0 8 10 20 30 40 50 60 periclase (…) 2-Theta - Scale Asse_Zementklinker_2007_2te - File: Asse_Zementklinker_2007_2t 00-037-1496 (*) - Anhydrite, syn - CaSO4 - Orthorhombic 01-070-1488 (C) - Arcanite, syn - K2(SO4) - Orthorhombic Operations: Displacement 0.224 | Displacement 0.143 | Displaceme 00-005-0586 (*) - Calcite, syn - CaCO3 - Hexagonal (Rh) 00-026-1071 (I) - Calcium Silicate Sulfate - Ca5(SiO4)2SO4 - Orthor 01-086-0402 (C) - Hatrurite, syn - Ca3SiO5 - Monoclinic 00-046-1045 (*) - Quartz, syn - SiO2 - Hexagonal 00-033-0302 (*) - Larnite, syn - Ca2SiO4 - Monoclinic 00-009-0413 (*) - Mayenite, syn - Ca12Al14O33 - Cubic 00-030-0226 (*) - Brownmillerite, syn - Ca2(Al,Fe+3)2O5 - Orthorho 00-033-0311 (*) - Gypsum, syn - CaSO4·2H2O - Monoclinic 9 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT) clinker 00-038-1429 (*) - Calcium Aluminum Oxide - Ca3Al2O6 - Cubic 00-045-0946 (*) - Periclase, syn - MgO - Cubic 00-032-0148 (I) - Calcium Aluminum Oxide - Ca3Al2O6 - Monoclinic 01-074-1742 (C) - Aphthitalite - NaK3(SO4)2 - Hexagonal 00-032-0150 (*) - Calcium Aluminum Oxide - Ca3Al2O6 - Orthorho 01-076-0623 (C) - Rankinite - Ca3Si2O7 - Monoclinic

  10. MgCl 2 rich leachants: initial compositions equilibrated brine in system R-brine Q-brine Mg 2+ mol (kg H 2 O) -1 NaCl-KCl-MgCl 2 -Na 2 SO 4 -H 2 O 5.2 4.2 Na + mol (kg H 2 O) -1 0.2 0.4 K + mol (kg H 2 O) -1 0.3 0.5 Mg Cl - mol (kg H 2 O) -1 10 9 R-brine 2- mol (kg H 2 O) -1 SO 4 0.4 0.2 KMgCl 3 :6H 2 O (Crn) val (kg H 2 O) -1 ionic strength 16.5 13.8 K + KMgClSO 4 :2.75 H 2 O Q-brine (Kai) experiments with Q-brine, R-brine, 4 molal MgCl 2 solution + NaCl KCl (Syl) (Hal) MgCl 2 brines slightly acidic due to Mg 2+ hydrolysis and aggressive vs. OPC 2K SO 4 10 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  11. Geochemical simulations: conceptual model Reaction path modeling: • initial thermodynamic equilibrium between solution and solid phase computed • infinitesimal amount of reactant cement paste "added" to solution • new equilibrium calculated including precipitation of super-saturated solid phases • in next step, again infinitesimal amount of reactant added to altered solution (…) reaction progress (time) increase in mass cement to volume brine ratio of equilibrated systems 11 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)

  12. Calculation methods • EQ3/6 software package (Geochemist’s Workbench) • concentrated salt solutions: Pitzer activity model • Harvie-Moller-Weare database Na-K-Mg-Ca-H-Cl-SO4-OH-HCO3-CO3-CO2-H2O including brucite, Mg-oxychloride, Ca-oxychlorides, calcite, Mg-hydroxocarbonates … • simplifications necessary due to lack of thermodynamic data (e.g. Pitzer parameters) • EQ3/6 data0.hmw database extended for solubility products, log K sp , complexation constants, log β , and ion-interaction coefficients (Pitzer parameters): • Np(V), U(VI) solids, aqueous species, Pitzer param. for Mg-Na-H-Cl-OH-H 2 O • Al, Si aqueous species, Pitzer parameters • solubility products, log K sp , of alumosilicate / aluminate endmembers: hydrotalcite 4MgO.Al2O3.10H2O, quartz SiO2, chlorite endmembers, e.g. clinochlore Mg5Al2Si3O10(OH)8, smectite endmembers e.g. Ca-saponite Ca.165Mg3Al.33Si3.67O10(OH)2 12 | Institut für Nukleare Entsorgung (INE) | Karlsruhe Institute of Technology (KIT)
