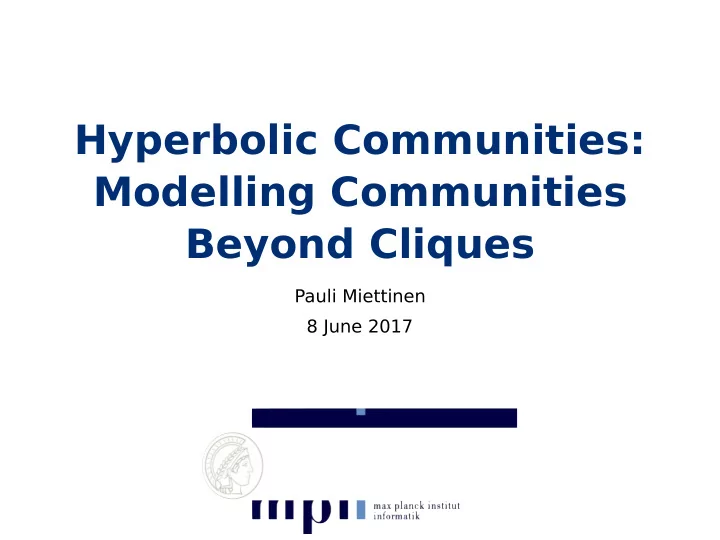

Hyperbolic Communities: Modelling Communities Beyond Cliques

Pauli Miettinen
 8 June 2017

Pauli Miettinen 8 June 2017

Joint work with

2

Saskia Metzler
 MPI-INF Stephan Günnemann T.U. München Stefan Neumann Uni Wien Sanjar Karaev MPI-INF Rainer Gemulla Uni Mannheim

Your
 here?

Pauli Miettinen 8 June 2017

Communities = cliques

• Communities are often

modelled as (quasi-) cliques

• Dense subgraphs
• All edges equally likely
• In a community,

everybody knows (or should know) everybody else

3

50 100 150 200 50 100 150 200

Pauli Miettinen 8 June 2017

Communities ≠ cliques

• But many communities are

not cliques

• There is more structure
• Some people know more

people

• Others know just the

central people
 ⇒ Cliques are not a good model

4

50 100 150 200 50 100 150 200

Pauli Miettinen 8 June 2017

Communities really
 are not cliques

5

≈ 160 stackexchange communities Nodes are users, edges are comments or answers during the last year

Pauli Miettinen 8 June 2017

Why should I care?

• Better understanding of the community

structures

• Better fit to real-world data
• Better prediction power
• More realistic random graphs
• …

6

Pauli Miettinen 8 June 2017

The core/periphery model

• Classical model in social

sciences (from 1999)

• Communities are L-shaped
• A core that is a clique
• A periphery that is only

connected to the core

• In real-world, 0s can

appear both in core and in periphery

7 8 June 2017

Borgatti & Everett, 1999

Core Periphery

Pauli Miettinen 8 June 2017

Core/periphery example

8

Borgatti & Everett, 1999

Pauli Miettinen 8 June 2017

Nested matrices

• Matrix is nested if its rows

and columns can be

• rdered so that
• all 1s are consecutive
• no row has more 1s than

the row above it

• Important concept in

ecology

• Core/periphery matrices are

nested

9

Pauli Miettinen 8 June 2017

HyCom communities

• Assume ordered (by

degree)

• In HyCom communities,

an edge (i, j) is in the community iff
 iαjα > τ
 for some α ≤ 0
 and 0 < τ < 1

• N.B. same as ij < τ’ with

τ’ = τ1/α

10

10 20 30 40 50 10 20 30 40 50 α = -0.5, τ = 0.1, 380 edges

Araujo et al. ECMLPKDD ’14

Pauli Miettinen 8 June 2017

Some comments


• n the models
• Core/periphery model seems too restricted
• T

ails taper towards the end

• Nested model is very general
• Perhaps too general…
• HyCom seems like a good compromise
• But with only one free variable, they’re too

quite limited

11

Pauli Miettinen 8 June 2017

The hyperbolic model

• Let us assume the nodes

are ordered and i=0, 1, …

• In hyperbolic model edge

(i, j) is in the community if
 (i + p)(j + p) ≤ θ

• (–p, –p) is the centre of

the hyperbola

• θ places the curve in the

gradient

12

• 25

• 25

(–p, –p)

Metzler et al. ICDM 2016

Pauli Miettinen 8 June 2017

The core/tail model

• The core/tail model is

parameterized by the size

• f the core, γ, and the

thickness of the tail, H

• T

ail cannot be thicker than the core

• In fact


γ ≤ (n – 1 + H)/2

13

γ H

Pauli Miettinen 8 June 2017

The mixture model

• HyCom: i∙j ≤ τ
• Line: i + j ≤ σ
• Mixture:


(1 – x)(i∙j) + x(i + j) ≤ Σ
 for 0 ≤ x ≤ 1 and Σ ∈ ℝ

• Actually


(1 – |x|)(ij) + x(i + j) ≤ Σ
 for –1 ≤ x ≤ 1

• Slightly more general

14

20 40 60 80 100 20 40 60 80 100

• del:

Pauli Miettinen 8 June 2017

All the models
 are the same

• Equivalence Theorem: Given a valid pair of

parameters for one of the three models above, there exists valid pairs of parameters for the other two models that will model exactly the same graph

• Between hyperbola and core/tail, this is straight-

forward (re-parametrization)

• Requires a proof between mixture and hyperbola

15

Pauli Miettinen 8 June 2017

Hyperbolic vs.
 cliques and core/tail

• Cliques are a special case
• f the models
• E.g. set core size to the

community size

• Core/periphery is also a

special case of the model

• Or a limit case (needs to

be checked)

16

Pauli Miettinen 8 June 2017

Hyperbolic vs.
 power-law

• HyCom is a special case of
• ur models
• Recall mixture:


(1 – x)(i∙j) + x(i + j) ≤ Σ

• T

echnically HyCom is
 1/2(i∙j) + 1/2(i + j) ≤ Σ

17 20 40 60 80 100 10 20 30 40 50 60 70 80 90 100

20 40 60 80 100 20 40 60 80 100

Pauli Miettinen 8 June 2017

Some example communities

18

Examples

Pauli Miettinen 8 June 2017

On likelihoods

• Area under the curve should be

dense

• Area above the curve should be

sparse

• Minimize the log-likelihood


|E|log(d) + |∁E|log(1–d)
 +|O|log(s) + |∁O|log(s)

• |E| = edges in comm, |∁E| = non-

edges in comm., d = density of comm., |O| = edges outside of comm., |∁O| = non-edges outside

• f comm., s = density outside

comm.

19

50 100 150 200 50 100 150 200

Dense Spars

Pauli Miettinen 8 June 2017

More than one community

• Generalizing to many communities is mostly

straight forward

• Every community has its own parameters
• Likelihoods inside communities sum up
• The area outside all communities should be

sparse

• But overlapping communities add complexity…

20

Pauli Miettinen 8 June 2017

Overlapping communities!

21

les

This is a good community This is also a good community But now this is a bad community! And now it’s just a big mess!

Pauli Miettinen 8 June 2017

Forms of overlap

22

No overlap Node overlap Edge overlap Just find the
 communities and
 model them The overlapping
 edges must be
 ignored The overlapping
 edges must be
 handled Assign every edge to at most 1 community

Pauli Miettinen 8 June 2017

Are these good models?

23

LL ratio block model HyCom Amazon 26450.6 30997.1 DBLP (100) 3148.5

• 788.0

DBLP

• 264974.7

17958.1 Friendster 200627.6 17811.7 LiveJournal 154982.4 22705.8 Orkut 11945.3 1598.5 YouTube 75689.6 12660.0

LL ratio spectral clustering BMF HyCom Email 10895.8 3552.0 250.1 Erd˝

• s

1797.0 949.0 256.3 Jazz 3003.8 4435.0 3718.5 PolBooks 648.0 303.3 228.2

Likelihood ratio test
 the larger the ratio, the more likely our model is better Ground-truth
 communities Calculated communities

Pauli Miettinen 8 June 2017

Distributions of parameters

24 Amazon DBLP(100) DBLP Friendster LiveJournal Orkut YouTube 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

. relative to community size

How clique-like the communities are?

Pauli Miettinen 8 June 2017

Distribution of parameters

25

H relative to community size

• 1
• 0.8
• 0.6
• 0.4
• 0.2

x

How thick the tail is? How similar to the HyCom the models are?

Pauli Miettinen 8 June 2017

How to find the communities?

• We can use any clique-like community finding

algorithm, and re-model

• But the found communities might not be

very good

• We can try to grow the communities from

cores

• But overlapping communities cause issues

26

Pauli Miettinen 8 June 2017

Nested matrix redux

• Work in progress: express the adjacency

matrix as a union of nested submatrices

• More general than our models but

potentially easier

• Interesting on its own right
• We find the nested subgraphs by finding a

suitable matrix factorization

27

Pauli Miettinen 8 June 2017

Nested matrices as rank-1 structures

• Nested matrices can have a full rank
• Their nonnegative rounding rank is 1
• Every nested matrix A can be expressed

as A = thr(xyT)

• x and y are nonnegative vectors
• thr(a) = 1 if a ≥ 0.5 and 0 otherwise

28

Neumann et al. ICDM 2016

Pauli Miettinen 8 June 2017

Example

29

 

1 1 1 1 1 1

  @

4 2 1

1 A

1 1/2 1/4

• =

@

4 2 1 2 1 1/2 1 1/2 1/4

1 A

thr1/2+

   

4 2 1 2 1 1/2 1 1/2 1/4

    =  

1 1 1 1 1 1

 

Pauli Miettinen 8 June 2017

Combining nested matrices: problems

• thr([x1 x2][y1 y2]T) is not necessarily a union
• f two nested matrices
• If x < θ and y < θ, it’s still possible that


x + y ≥ θ

• Higher ranks work only for completely

disjoint communities

30

Pauli Miettinen 8 June 2017

Tropical algebra
 to the rescue

• The subtropical algebra over the

nonnegative reals has

• the summation ⊞ defined as the maximum
• the product ⊠ defined as usual
• If x < θ and y < θ, x ⊞ y = max{x, y} < θ
• The thresholding distributes over ⊞:


thr(x ⊞ y) = thr(x) ⊞ thr(y)

31

Pauli Miettinen 8 June 2017

The full model

• Given a symmetric adjacency matrix A, find

nonnegative matrix B with k columns minimizing
 ||A – thr(B⊠BT)||

• The matrix product is over the subtropical

algebra

• Equivalently, given A, find k nested (up to

permutations) matrices N1, N2, …, Nk that minimize
 ||A – ∪i Ni||

32

Karaev et al. submitted

Pauli Miettinen 8 June 2017

Resulting communities

33

Hyperbolic Almost
 hyperbolic Not at all hyperbolic

Pauli Miettinen 8 June 2017

Future work

• Validate that the hyperbolic models are good

with more data

• More work for algorithms to find the

communities

• Time-evolving communities
• Random graph models and graphons
