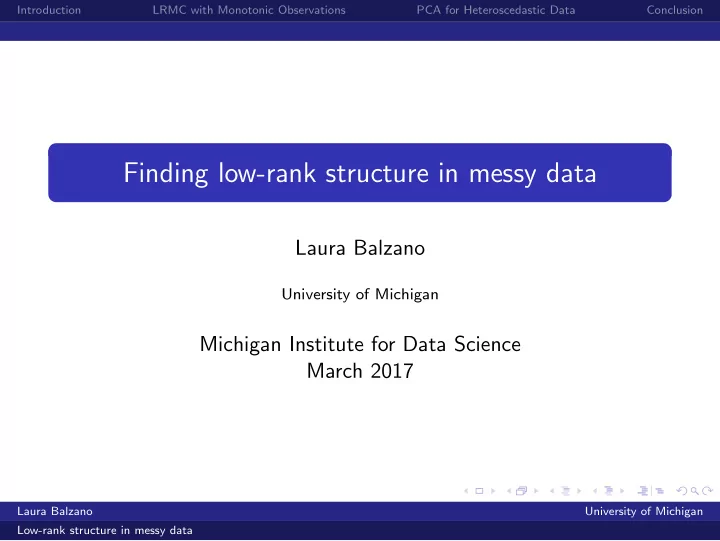

Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Finding low-rank structure in messy data Laura Balzano University of Michigan Michigan Institute for Data Science March 2017 Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Big Data means Messy Data Ozone Concentration 42 0.04 41 0.03 Latitude 40 0.02 0.01 39 0 38 − 81 − 80 − 79 − 78 − 77 − 76 − 75 Longitude Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Big Data means Messy Data &'+#/).0%%%1%%%'*-&)23-'.% &'()#"% *$#+),-'.% !"#$"% Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Structure In all these cases, we believe there is some structure in the data. That structure can help us predict, interpolate, detect anomalies, etc. Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Structure In all these cases, we believe there is some structure in the data. That structure can help us predict, interpolate, detect anomalies, etc. Much of my work focuses on low-rank structure. Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Subspace Representations 50 100 150 − 200 10 0 − sp ordered singular ordered singular values − values (normalized) (normalized) ordered singular values 10 -1 (normalized) − 10 -2 state 10 -3 Temperature%data%from%UCLA%Sensornet% Byte%Count%data%from%UW%network% 0 10 20 30 40 50 60 Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Subspace Representations Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Subspace Representations Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Low-rank structure for Messy Data ! PCA with heteroscedastic data ! Structured Single Index Models E[ y| x] = g(x T w) 1 ! Union of Idealized ISE response 0.8 subspace 0.6 ! Matrix data – active 0.4 completion or 0.2 clustering or factorization with 0 completion 0 0.2 0.4 0.6 0.8 1 streaming data Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Collaborators NSF, Army Research Office, MCubed Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion LRMC with Monotonic Observations Low-rank Matrix Completion under Monotonic Transformation: Can we recover a low-rank matrix where every entry has been perturbed using an unknown monotonic function? Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Low-rank Matrix Completion We have an n × m , rank r matrix X . However, we only observe a subset of the entries, Ω ⊂ { 1 , . . . , n } × { 1 , . . . , m } . Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Example 1: Recommender Systems &'+#/).0%%%1%%%'*-&)23-'.% &'()#"% *$#+),-'.% !"#$"% Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Example 1: Recommender Systems Ne#lix'Prize' Compe//on' 200642009' Winning'team' received'$1M' Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Low-rank Matrix Completion We have an n × m , rank r matrix X . However, we only observe a subset of the entries, Ω ⊂ { 1 , . . . , n } × { 1 , . . . , m } . We may find a solution by solving the following NP-hard optimization: minimize rank( M ) M subject to M Ω = X Ω Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Low-rank Matrix Completion We have an n × m , rank r matrix X . However, we only observe a subset of the entries, Ω ⊂ { 1 , . . . , n } × { 1 , . . . , m } . Or we may solve this convex problem: n � minimize � M � ∗ = σ i ( M ) M i =1 subject to M Ω = X Ω Exact recovery guarantees: X is exactly low-rank and incoherent. MSE guarantees: X is nearly low-rank with bounded ( r + 1) th singular value. Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Low-rank Matrix Completion Algorithms There are a plethora of algorithms to solve the nuclear norm problem or reformulations. LMaFit, APGL, FPCA Singular value thresholding: iterated SVD, SVT, FRSVT Grassmannian: OptSpace, GROUSE Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Example 1: Recommender Systems &'+#/).0%%%1%%%'*-&)23-'.% &'()#"% *$#+),-'.% !"#$"% Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Example 2: Blind Sensor Calibration Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Example 2: Blind Sensor Calibration Ion Selective Electrodes have a 1 nonlinear response to their ions Idealized ISE response 0.8 (pH, ammonium, calcium, etc) 0.6 0.4 0.2 0 0 0.2 0.4 0.6 0.8 1 Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Single Index Model Suppose we have predictor variables x and response variables y , and we seek a transformation g and vector w relating the two such that � � x T w E [ y | x ] = g . Generalized Linear Model: g is known, y | x are RVs from an exponential family distribution parameterized by w . Includes linear regression, log-linear regression, and logistic regression Single Index Model: Both g and w are unknown. Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Single Index Model Learning Algorithm 1 Lipshitz-Isotron Algorithm [Kakade et al., 2011] Given T > 0, ( x i , y i ) p i =1 ; Set w (1) := 1; for t = 1 , 2 , . . . , T do Update g using Lipschitz-PAV: g ( t ) = LPAV � � i w ( t ) , y i ) p ( x T . i =1 Update w using gradient descent: p w ( t +1) = w ( t ) + 1 � � � y i − g ( t ) ( x T i w ( t ) ) x i p i =1 end for Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Lipschitz Pool Adjacent Violator The Pool Adjacent Violator 6 (PAV) algorithm pools 5 points and averages to 4 minimize mean squared error 3 g ( x i ) − y i . PAV 2 Data L-PAV adds the additional PAV 1 LPAV constraint of a given 0 0 0.2 0.4 0.6 0.8 1 Lipschitz constant. Laura Balzano University of Michigan Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion High-rank (and effective rank) matrices For Z low-rank, 1 Y ij = g ( Z ij ) = 1+exp − γ Zij , Y has full rank. Y ij = g ( Z ij ) = quantize to grid ( Z ij ), Y has full rank. These matrices even have high effective rank. For a rank-50, 1000x1000 matrix Z , we can plot the eff rank of Y : Logistic function Quantizing to a grid 1000 1000 800 800 ǫ =0.001 effective rank ǫ =0.01 effective rank 600 600 400 400 200 200 0 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0 20 40 60 80 100 120 gamma number of grid points Laura Balzano University of Michigan erank Low-rank structure in messy data
Introduction LRMC with Monotonic Observations PCA for Heteroscedastic Data Conclusion Optimization Formulation We observe Y ij = g ∗ ( Z ∗ ij ) + N ij for ( i , j ) ∈ Ω, where Ω is the set of observed entries. � ( g ( Z i , j ) − Y i , j ) 2 min g , Z Ω subj. to g : R → R is Lipschitz and monotone rank( Z ) ≤ r Non-convex in each variable, but we can alternate the standard approaches: Use gradient descent and projection onto the low-rank cone for Z . Use LPAV for g . We call this algorithm MMC-LS. Laura Balzano University of Michigan Low-rank structure in messy data
