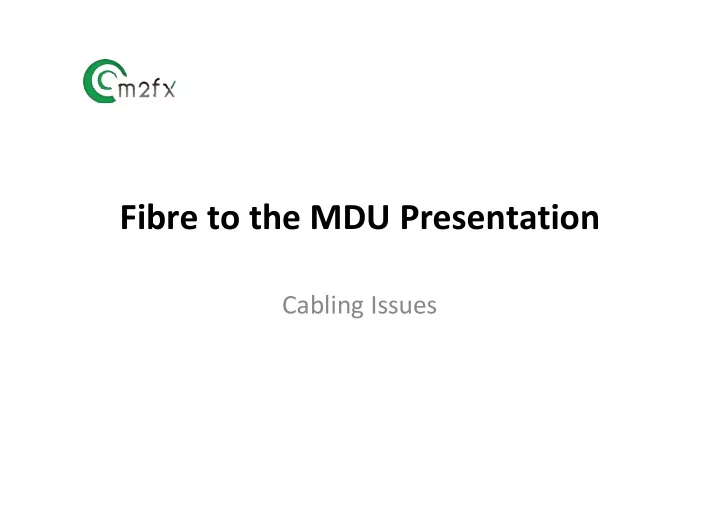

Fibre to the MDU Presentation Cabling Issues MDUs are a significant - PowerPoint PPT Presentation

Fibre to the MDU Presentation Cabling Issues MDUs are a significant opportunity for infrastructure providers UK Dwelling Unit number increasing, 7.7m at 20 th Century start to 26.2m by 2008 In excess of 4m flats/apartments in England


  1. Fibre to the MDU Presentation Cabling Issues

  2. MDUs are a significant opportunity for infrastructure providers � UK Dwelling Unit number increasing, 7.7m at 20 th Century start to 26.2m by 2008 � In excess of 4m flats/apartments in England alone � Number of DU’s is increasing at steady rate of > 250,000 pa. Exceeds new build – New flat build and flats from sub-division (20% of all flats)

  3. Specific MDU Challenges

  4. Ownership Fragmented Ownership � BTL, small registered landlords Lack of templates and standard Geographically diverse Trade Body? FLEXIBLE, EASY DEPLOY SOLUTIONS…….

  5. Access

  6. Churn

  7. Cost

  8. Aesthetics

  9. Fixtures and Fittings P-Clips Pinned or self- Existing UPVC adhesive electrical trunking conduit Fixing Methods still traditional Fixing Methods still traditional

  10. Fire performance Currently discretionary To follow the EU CPR: Harmonised EN 50575 (2015?) EN 60332-1-2 EN 50399 EN 61034-2 EN 50267-2-3 Categories to be established

  11. Noise and disturbance of inhabitants Depending on MDU type Impact varies: -Leasehold flats -Retirement flats -Part occupied -New Build -Converted Housing

  12. New developments

  13. There are different ways to cable an MDU

  14. Home Run

  15. Splice/Split on the floor

  16. Pull-back method

  17. MDU – Pull Back Components Break out Box Break out Box Corner Unit (optional) Corner Unit (optional) Comms room or floor box Comms room or floor box CCP CCP

  18. Pull Back Operation Protection sleeve into Protection sleeve into home. Fibre(s) pushed in . home. Fibre(s) pushed in . Window cut Feeder cable Window cut Feeder cable Optional second output Optional second output Push fit connector - reversible Push fit connector - reversible 3/4mm depending on sleeve OD 3/4mm depending on sleeve OD

  19. Deciding between the alternatives

  20. Installer skills set

  21. System A splice box can be added in Option 3 Enables cheaper riser cable to used � Allows for a flexibility point on the floor � Second split location option available

  22. Cost Comparisons Assumptions: � 1 or 2 fibre to each user as stated � Cost includes ONLY in-building cabling (not OSP cable) � Standard floor height for buildings (3m?) � Apartment horizontal spacing (4m?) � Cable run in apartment to ONT 5m. � Labour rates approximated to UK professional electrician rates (£20/hr?) � Component costs – based on m2fx items. Other vendors will differ.

  23. Costing: Floors X-axis Relative Cost Y-axis Relative Cost Relative Cost Number of Rooms per Number of Rooms per Floor Floor

  24. Installation type conclusion

  25. Costing Observations

  26. MDU Cabling Conclusions � There are 3 main alternatives – Numerous versions of each (pre-term, split) � The factors to consider are: – Built Environment: Retrofit or New Build – PON versus P2P – Skill levels of deployment teams – Cost � Costs: Depend on building horizontals and local labour and component costs
