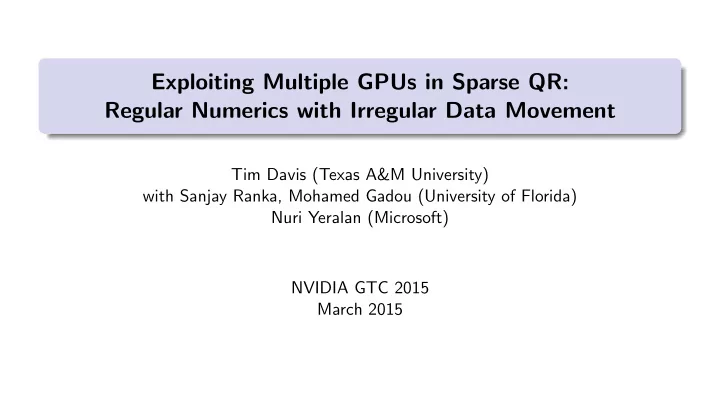

Exploiting Multiple GPUs in Sparse QR: Regular Numerics with Irregular Data Movement Tim Davis (Texas A&M University) with Sanjay Ranka, Mohamed Gadou (University of Florida) Nuri Yeralan (Microsoft) NVIDIA GTC 2015 March 2015 Outline


  1. Exploiting Multiple GPUs in Sparse QR: Regular Numerics with Irregular Data Movement Tim Davis (Texas A&M University) with Sanjay Ranka, Mohamed Gadou (University of Florida) Nuri Yeralan (Microsoft) NVIDIA GTC 2015 March 2015

  2. Outline Combinatorial scientific computing: math + CS + applications Multifrontal methods for factorizing sparse matrices fill-in creates cliques in the graph cliques connected via the elimination tree Sparse LU: square cliques assembled via addition Sparse LU: rectangular, via addition Sparse QR: rectangular, via concatenation GPU kernel design for sparse QR Bucket scheduler for single-GPU QR Extended for multi-GPU QR Performance results

  3. Combinatorial Scientific Computing: math + CS + applications

  4. Cliques in the graph: the multifrontal method Cliques + elimination tree = sequence of frontal matrices Dense factorization within a front; assemble data into parent regular + irregular computation

  5. UMFPACK: unsymmetric multifrontal method Frontal matrices become rectangular Assemble data into ancestors, not just parents

  6. UMFPACK: unsymmetric multifrontal method Key results / impact high-performance via dense matrix kernels within each front symbolic preordering and analysis, followed by revised local pivot search with approximate unsymmetric degree update widely used sparse LU and x=A \ b in MATLAB Mathematica IBM circuit simulation application finite-element solvers: NASTRAN, FEniCS, ... Berkeley Design Automation: circuit simulation CVXOPT ...

  7. SuiteSparseQR: multifrontal sparse QR factorization Key results / impact rectangular fronts like UMFPACK, but simpler frontal matrix assembly (concatenation, not summation) (Duff, Puglisi) rank approximation (Heath, extended to multifrontal case) multicore parallelism on multicore CPU (70 Gflop theoretical peak): up to 30 Gflops sparse qr in MATLAB, and x=A \ b today’s talk: GPU algorithm novel “Bucket QR” scheduler and custom GPU kernels up to 150 GFlops on one Kepler K20c, 286 GFlops on 4 Tesla C2070’s up to 28x speedup vs CPU algorithm (10x typical for large problems)

  8. SuiteSparseQR A column elimination tree and its supernodes

  9. SuiteSparseQR Frontal matrix assembly

  10. SuiteSparseQR concatenation, resulting a staircase matrix

  11. SuiteSparseQR

  12. Multifrontal factorization and assembly Prior methods one front at a time on the GPU assembly on CPU panel factorization on the CPU, applied on GPU Our multifrontal QR many fronts on the GPU (entire subtree) assembly on GPU: data concatenation, not summation entire dense QR of each front on the GPU

  13. Consider a subtree of frontal matrices on the GPU

  14. Expanded to show GPU kernel launches

  15. Bucket QR factorization

  16. Bucket QR factorization

  17. Bucket QR factorization

  18. Bucket QR factorization

  19. Bucket QR factorization

  20. Bucket QR factorization

  21. Bucket QR factorization

  22. Bucket QR factorization

  23. Bucket QR factorization

  24. GPU kernels for Bucket QR Bucket QR requires two kernels on the GPU QR factorization of a t -by-1 tile, t = 1, 2, or 3 creates a block Householder details on next slides Apply a block Householder: A = A − V ( T ′ ( V ′ A )) A is t -by- s , where s can be large thread-block iterates 2 column blocks at atime (details omitted)

  25. GPU kernel: Block Householder QR Block Householder QR = A where Q = ( I − VT ′ V ′ ) ′ , and R is upper triangular [m n] = size (A) for k = 1:n [tau, v] = house (A (k:m,k)) A (k:m,k:n) = A (k:m,k:n) - v * (tau * (v’ * A (k:m,k:n))) V (k:m,k) = v ; Tau (k) = tau end T = zeros (n) for k = 1:n tau = Tau (k) ; v = V (k:m,k) z = - tau * v’ * V (k:m,1:k-1) T (1:k-1,k) = T (1:k-1,1:k-1) * z’ T (k,k) = tau end

  26. GPU kernel: Block Householder QR Householder update Construct T A(k:m,k:n) = A(k:m,k:n) - ... z = - tau * v’ * V (k:m,1:k-1) v*(tau*(v’*A(k:m,k:n))) T (1:k-1,k) = T(1:k-1,1:k-1)*z’ T (k,k) = tau

  27. GPU kernel: Block Householder QR Towards an GPU kernel overwrite tril(A,-1) with V, and fold in construction of T. [m n] = size (A) T = zeros (n) for k = 1:n [tau, v] = house (A (k:m,k)) A (k:m,k:n) = A (k:m,k:n) - ... v * (tau * (v’ * A (k:m,k:n))) V1 (k) = v (1) A (k+1:m,k) = v (2:end) z = - tau * v’ * A (k:m,1:k-1) T (1:k-1,k) = T (1:k-1,1:k-1) * z’ T (k,k) = tau end

  28. GPU kernel: Block Householder QR The GPU kernel update A and construct T in parallel: A (k:m,k:n) = A (k:m,k:n) - ... v * (tau * (v’ * A (k:m,k:n))) z = - tau * (v’ * A (k:m,1:k-1)) T (1:k-1,k) = T (1:k-1,1:k-1) * z’ T (k,k) = tau becomes z = -tau * v’ * A (k:m,:) A (k:m,k:n) = A (k:m,k:n) + v * z (k:n) T (1:k-1,k) = T (1:k-1,1:k-1) * z (1:k-1)’ T (k,k) = tau

  29. GPU kernel: Block Householder QR z = -tau * v’ * A (k:m,:) A (k:m,k:n) = ... A (k:m,k:n) + ... v * z (k:n) T (1:k-1,k) = ... T (1:k-1,1:k-1) ... * z (1:k-1)’ T (k,k) = tau

  30. GPU kernel: Block Householder QR The GPU kernel thread-level parallelism z = -tau * v’ * A (k:m,:) A (k:m,k:n) = A (k:m,k:n) + v * z (k:n) T (1:k-1,k) = T (1:k-1,1:k-1) * z (1:k-1)’ T (k,k) = tau A is 96-by-32, in register during factorization, and finally in global memory at the end ( V and R ) each thread owns an 8-by-1 “bitty block” of A v is 96-by-1, in shared memory z is 32-by-1, in shared. Requires 12-by-32 shared space for v’*A(k:m,:) reduction

  31. GPU kernel: Block Householder QR Putting it all together. At the kth step: threads that own column k write A to shared thread zero computes Householder coefficients z = -tau * v’ * A (k:m,:) each thread computes 8-by-1 dot product in parallel writes scalar result in 12-by-32 reduction space warp zero sums reduction space to get z A (k:m,k:n) = A (k:m,k:n) + v * z (k:n) only done by threads that own columns k:n threads that own column k+1 compute norm of that column of A , for next Householder coef, saving result in 12-by-1 reduction space T (1:k-1,k) = T (1:k-1,1:k-1) * z (1:k-1)’ only done by threads 1:k-1 thread zero sums up reduction space for norm of column k+1

  32. GPU kernel: Block Householder QR z = -tau * v’ * A (k:m,:) each thread computes 8-by-1 dot product in parallel writes scalar result in 12-by-32 reduction space warp zero sums reduction space to get z

  33. GPU kernel: Block Householder QR A (k:m,k:n) = A (k:m,k:n) + v * z (k:n) only done by threads that own columns k:n threads that own column k+1 compute norm of that column of A , for next Householder coef, saving result in 12-by-1 reduction space

  34. GPU kernel: Block Householder QR T (1:k-1,k) = T (1:k-1,1:k-1) * z (1:k-1)’ only done by threads 1:k-1

  35. Single GPU performance results Putting it all together ... Performance results Fermi K20 K40 GPU kernels: apply block Householder 183 Gflops 260 Gflops 360 Gflops factorize 3 tiles 27 Gflops 20 Gflops dense QR for large front 107 Gflops 120 Gflops (’bare metal’ flops) 154 Gflops 172 Gflops sparse QR on GPU 80 Gflops 150 Gflops peak speedup over CPU 11x 20x typical speedup over CPU 5x 10x

  36. GPU Kernel pitfalls What we’ll do differently in our kernel design Householder block-apply using too much shared memory uberkernel approach each thread block determines what to do from a task list (QR, apply, assemble) pros: single large kernel launch, lots of parallelism con: all tasks use same thread geometry � con: QR of panel needs higher occupancy to hide scalar ( d ) to do: block apply kernel needs to stage A = A − WYA by not keeping W and Y in shared. split the uberkernel so QR panel can have higher occupancy

  37. Single GPU performance on many matrices

  38. Multiple GPUs: decomposing the tree

  39. Multiple GPUs: Performance Results Results on NVIDIA Tesla C2070 GPUs problem CPU 1 GPU 2 GPU 4 GPU speedup speedup GFlop GFlop GFlop GFlop vs CPU vs 1 GPU 1500:2D 6.1 16.0 27.1 38.4 6.3 2.4 2000:2D 6.9 21.0 37.8 56.7 8.2 2.7 3000:2D 7.8 25.8 44.8 73.7 9.4 2.9 lp nug20 23.9 74.3 86.4 66.1 2.8 0.9 ch7-8-b3 25.3 104.0 111.3 173.7 6.9 1.7 ch7-8-b3:8 10.0 88.0 160.4 286.2 28.6 3.3

  40. Multiple GPUs: for large fronts

  41. Multiple GPUs: bucket scheduler on the large scale

  42. Multiple GPUs: bucket scheduler on the large scale

  43. Multiple GPUs: bucket scheduler on the large scale

  44. Multiple GPUs: bucket scheduler on the large scale

  45. Multiple GPUs: bucket scheduler on the large scale

  46. Multiple GPUs: bucket scheduler on the large scale

  47. Multiple GPUs: bucket scheduler on the large scale

  48. Multiple GPUs: bucket scheduler on the large scale

  49. Multiple GPUs: bucket scheduler on the large scale

  50. Multiple GPUs: bucket scheduler on the large scale

  51. Multiple GPUs: bucket scheduler on the large scale

  52. Multiple GPUs: bucket scheduler on the large scale

  53. Multiple GPUs: bucket scheduler on the large scale

  54. Multiple GPUs: bucket scheduler on the large scale

  55. Multiple GPUs: bucket scheduler on the large scale

  56. Multiple GPUs: bucket scheduler on the large scale

  57. Multiple GPUs: bucket scheduler on the large scale

  58. Multiple GPUs: bucket scheduler on the large scale

  59. Multiple GPUs: bucket scheduler on the large scale
