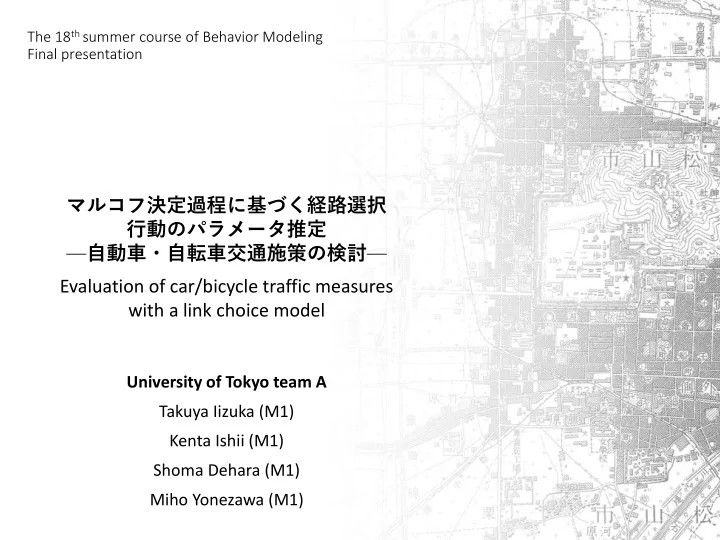

  1. The 18 th summer course of Behavior Modeling Final presentation マルコフ決定過程に基づく経路選択 行動のパラメータ推定 —自動車・自転車交通施策の検討— Evaluation of car/bicycle traffic measures with a link choice model University of Tokyo team A Takuya Iizuka (M1) Kenta Ishii (M1) Shoma Dehara (M1) Miho Yonezawa (M1)

  2. 2 1. Background ◆ Area: 松山市 Matsuyama city Population: 512479 (2018.1.1.) Area: 429.06 m 2 • Many people use private car. • City projects are underway to increase activity in the central city. http://udcm.jp/project/

  3. 3 2. Basic Analysis Representative Mode Choice in ◆ Mode Choice Matsuyama (n=7107) • Data: Matsuyama PP (2007 Feb.19 – Mar.23) Walk Other 1% 15% Bicycle • High rate of Car & Bicycle use 17% Car • Car & Bicycle paths are overlapping. 53% Taxi → By providing bicycle lanes, 0% traffic accidents can be suppressed !! Bus 1% Car Motorcycle Train Train Bus 2% Taxi Motorcycle Bicycle 11% ※ 経路情報が得られたトリップを抽出

  4. 4 2. Basic Analysis ◆ Traffic Volume in the center of Matsuyama Dogo Onsen Dogo Onsen City Hall City Hall JR Station JR Station Center Station Center Station Car Trip Bicycle Trip • Most part of the center of Matsuyama, the car & bicycle trips are separated. • At some roads, car & bicycle trips are overlapping!!

  5. 5 2. Basic Analysis Car & Bicycle traffic of each link On links with heavy car traffic, The smaller the traffic of the car, sidewalks are maintained, the more traffic of the bicycle. increasing bicycle traffic.

  6. 6 3. Target ◆ For Simulation • Characteristics of each link (length, width, etc.) affect travelers’ behavior. → We adopt Link Base Route Choice Model for analysis. ◆ Our Goal • To clarify what is important element in the route choice behavior of car & bicycle • To simulate transport policy and to verify the sensitivity of each parameter

  7. 7 4. Model ◆ Estimation Link based route choice model Different Estimation method Behavior model; RL model compare Inverse Reinforcement Learning (IRL) link length parameter lanes right turn dummy

  8. 8 4. Model ◆ Sequential Route Choice Model: Recursive Logit model (RL) (Fosgerau et al., 2013) Graph: 𝐻 = 𝐵, 𝜉 𝐵 : set of links absorbing 𝜉 : set of nodes state • Utility Maximization problem The value function is defined by the 𝑒 (𝑏) 𝑤 𝑜 𝑏 𝑙 + 𝜈𝜁 𝑜 𝑏 + 𝛾𝑊 𝑜 Bellman equation (Bellman, 1957); 𝑒 𝑙 = 𝐹 An instantaneous utility 𝑒 (𝑏) 𝑊 𝑏∈𝐵(𝑙) 𝑤 𝑜 𝑏 𝑙 + 𝜈𝜁 𝑜 𝑏 + 𝛾𝑊 max 𝑜 𝑜 At each current state 𝑙 , a traveler ∀𝑙 ∈ 𝐵 chooses an action 𝑏 (next link). 𝜁 𝑜 𝑏 : error term (i.i.d. Gumbel distribution) Link choice probability 𝜈 : scale parameter 𝛾 : discount rate 1 𝜈(𝑤 𝑜 𝑏 𝑙 +𝛾𝑊 𝑒 (𝑏)) 𝑜 An expected downstream utility 𝑓 𝑒 𝑏 𝑙 = 𝑄 𝑜 𝜈(𝑤 𝑜 𝑏 ′ 𝑙 +𝛾𝑊 :value function 1 𝑒 (𝑏 ′ )) 𝑜 σ 𝑏′∈𝐵(𝑙) 𝑓 from the selected state 𝑏 to the destination link 𝑒

  9. 9 4. Compared IRL with RL ◆ Bellman equation ∞ 𝑊 𝜌 𝑡 = 𝐹 𝜌 ෍ 𝛿 𝑙 𝑠 𝑢+𝑙+1 |𝑡 𝑢 = 𝑡 𝑙=0 ∞ 𝛿 𝑙 𝑠 𝑢+𝑙+2 |𝑡 𝑢 = 𝑡 = 𝐹 𝜌 𝑠 𝑢+1 + 𝛿 ෍ 𝑙=0 ∞ 𝑏 + 𝛿𝐹 𝜌 ෍ 𝑏 𝛿 𝑙 𝑠 𝑢+𝑙+2 |𝑡 𝑢+1 = 𝑡′ = ෍ 𝜌 𝑡, 𝑏 ෍ 𝒬 ℛ 𝑡𝑡′ 𝑡𝑡′ 𝑏 𝑡′ 𝑙=0 = 𝑅(𝑡, 𝑏) 𝑏 ℛ 𝑡𝑡′ 𝑏 + 𝛿𝑊 𝜌 𝑡′ = ෍ 𝜌 𝑡, 𝑏 ෍ 𝒬 𝑡𝑡′ 𝑏 𝑡′ 𝑠 𝑢+1 𝛿 : discount rate ( 0 < 𝛿 ≤ 1 ) Transition 𝑡 𝑢 𝑡 𝑢+1 𝑏 : expected reward state ℛ 𝑡𝑡′ 𝑏 ( = 𝐹{𝑠 𝑢+1 |𝑡 𝑢 = s, 𝑏 𝑢 = 𝑏, 𝑡 𝑢+1 = s ′ } ) 𝑏~𝜌(𝑡, 𝑏) 𝒬 𝑡𝑡′ = Pr{𝑡 𝑢+1 = s ′ |𝑡 𝑢 = s, 𝑏 𝑢 = 𝑏}

  10. 10 4. Compared IRL with RL ◆ The estimation method : Recursive Logit model (RL) -NPL 𝑢 = 𝜾 𝑼 𝒀 Reward (Instantaneous utility): 𝑠 Value Choice Parameter Convergence Likelihood function probability 𝜾 test No Yes The algorithm for calculating fixed point of value function 𝑊 estimated Con onvergence tes est Parameter 𝜾 ∗ 𝑢 𝜾 ∗ − 𝑊 𝜾 𝑼 − 𝜾 < 𝜀 ෍ 𝑊 𝑢 (𝜾) + ෍ 𝑢 𝑢

  11. 11 4. Compared IRL with RL ◆ The estimation method : Max entropy - Inversed Reinforced Learning (IRL) 𝑢 = 𝜾 𝑼 𝒀 Reward: 𝑠 Reinforced Learning Policy Parameter Reward Likelihood Convergence ( 𝑅 value) 𝜾 𝑠 𝑢 𝑀𝑀 test No Yes Proble lem σ 𝑗 log 𝑄 (𝜼 𝑗 |𝜾) max st. 𝑅 𝑢 = 𝑠 𝑢 + 𝛿𝑅 𝑢+1 estimated 𝜾 Parameter 𝜾 ∗ where 𝜼 𝑗 is the path of expert 𝒀 is the feature relating to link

  12. 12 5. Estimation Result ◆ RL estimation (car) ◆ IRL estimation (car) 𝛾 = 0.47 (given) 𝛾 = 0.47 (given) Variables Parameters t-Value Variables Parameters t-Value Link Length -0.03 -1.33 Link Length -0.07 -9.72** Right-Turn -0.80 -6.49** Right-Turn -1.02 -8.53** Lanes 0.37 2.76** Lanes -0.37 -5.64** L(0) -1179.29 L(0) -2080.67 LL -1147.00 LL -1117.10 Rho-Square 0.03 Rho-Square 0.46 Adjusted Rho-Square 0.02 Adjusted Rho-Square 0.46

  13. 13 5. Estimation Result ◆ Recursive Logit estimation (bicycle) Variables Parameters t-Value Link Length -0.00 -6.21** Right-Turn -0.19 -3.67** Car Traffic -14.37 -0.14 β 0.00 15.15** L(0) -4093.90 LL -3861.56 Rho-Square 0.06 Adjusted Rho-Square 0.06

  14. 14 5. Simulation and Evaluation Network Policy 𝐻 = 𝑚𝑗𝑜𝑙, 𝑜𝑝𝑒𝑓, 𝑚𝑏𝑜𝑓 Car Assignment 𝑤 𝑑𝑏𝑠 = 𝜄 1 ∙ 𝑀𝑓𝑜𝑕𝑢ℎ + 𝜄 2 ∙ 𝑆𝑗𝑕ℎ𝑢𝑢𝑣𝑠𝑜 + 𝜄 3 ∙ 𝑀𝑏𝑜𝑓𝑡 Car traffic Bicycle Assignment 𝑤 𝑐𝑗𝑑𝑧𝑑𝑚𝑓 = 𝜄 4 ∙ 𝑀𝑓𝑜𝑕𝑢ℎ + 𝜄 5 ∙ 𝑆𝑗𝑕ℎ𝑢𝑢𝑣𝑠𝑜 + 𝜄 6 ∙ 𝐷𝑏𝑠𝑈𝑠𝑏𝑔𝑔𝑗𝑑

  15. 15 5. simulation ← Bicycle traffic Policy Reduce the lanes of large bicycle traffic links Private car/bicycle user’s logsum value with/without policy With policy Without policy (rode lanes are reduced) Private car user -2639 -2638 Bicycle user -9297 -1147

  16. 16 6. Future works ◆ Policies decided by Two-stage optimization To decide the policy by calculating the fixed point of demand of cars and bicycles Variables is changed Policy Demand change change Consumer surplus

  17. 20 4. Frame & Model ◆ Estimation ◆ Policy Simulation Link based route choice model Upper Problem : traffic network • reduction of vehicle lanes Different Estimation method (pedestrian/bicycle only) Behavior model; RL model compare traffic volume network Inverse Reinforcement of each link Learning (IRL) Lower Problem : route choice behavior link length parameter lanes Car Bicycle right turn dummy Assign each OD volume
