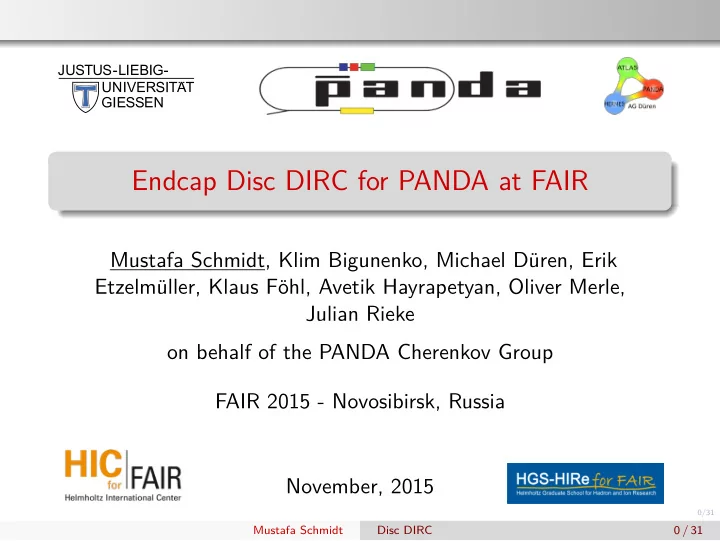

Endcap Disc DIRC for PANDA at FAIR

Mustafa Schmidt, Klim Bigunenko, Michael D¨ uren, Erik Etzelm¨ uller, Klaus F¨

  • hl, Avetik Hayrapetyan, Oliver Merle,

Julian Rieke

  • n behalf of the PANDA Cherenkov Group

FAIR 2015 - Novosibirsk, Russia November, 2015

Mustafa Schmidt Disc DIRC 0 / 31

slide-2
SLIDE 2

1/31

¯ PANDA Spectrometer

Source: <http://www-panda.gsi.de> Mustafa Schmidt Disc DIRC 1 / 31

slide-3
SLIDE 3

2/31

Cherenkov Light

Charged particles with speed higher than photon phase speed in medium emit Chrenkov light Equation of polar angle θC for Cherenkov light cone: cos θC = 1 n(λ)β with β =

  • 1 − 1/γ2 =
  • 1 − E 2

0 /E 2

Cherenkov Angle θC: Number of photons per track length according to Frank-Tamm-Formula: dN dx = 2παz2

λ2

λ1

1

λ2 − 1 n2(λ)β2λ2

α ≈ 1/137 z: charge number of particle Refractive index n normally a function of wavelength λ (dispersion)

Mustafa Schmidt Disc DIRC 2 / 31

slide-4
SLIDE 4

3/31

Photon Prediction

Theoretical prediction for 100 π+ with momentum p = 4 GeV/c compared to simulated results with Geant4/PandaRoot Material thickness: ∆x = 2 cm

[nm] λ 300 400 500 600 700 800 ) [rad] λ (

C

θ 0.8 0.805 0.81 0.815 0.82 0.825 0.83 0.835 0.84 0.845 0.85

Cherenkov Angle

Simulated Results Theoretical Preditiction

Cherenkov Angle

[nm] λ 300 350 400 450 500 550 600 650 700 750 800 Entries 100 200 300 400 500 600

Number of photons

Simulated Results Theoretical Preditiction

Number of photons

Average photon amount per event: n = 1103 for λ = 300 . . . 800 nm

Mustafa Schmidt Disc DIRC 3 / 31

slide-5
SLIDE 5

4/31

Disc DIRC Detector

Mustafa Schmidt Disc DIRC 4 / 31

slide-6
SLIDE 6

5/31

Radiator Disk and Focusing Element

Internal reflection of light inside radiator disk Cylindrical mirror on backside of focusing element for light focusing on readout plane Parallel photons focused on one spot Photons with different angles focused on different points

Mustafa Schmidt Disc DIRC 5 / 31

slide-7
SLIDE 7

6/31

Microchannel Plate PMT

Source: Merle, Oliver: Development, design and optimization of a novel Endcap DIRC for PANDA, Phd Thesis, JLU Giessen, 2015 Mustafa Schmidt Disc DIRC 6 / 31

slide-8
SLIDE 8

7/31

Quantum Efficiency

Collection efficiency approx. 30% (varying for different MCP-PMTs)

[nm] λ

300 400 500 600 700

#Efficiency [%]

5 10 15 20 25 MCP Efficiency

Product of quantum efficiency and collection efficiency equal to probability to detect photon (detection efficiency)

Mustafa Schmidt Disc DIRC 7 / 31

slide-9
SLIDE 9

8/31

MCP Lifetime

integrated anode charge [mC/cm2]

2

10

3

10

4

10

quantum efficiency [%]

5 10 15 20 25

real PANDA time [a] 2 4 6 8 10

BINP #82 PHOTONIS XP85112 (9001223) BINP #1359 PHOTONIS XP85112 (9001332) BINP #3548

  • Ham. R10754X-01-M16 (JT0117)

PHOTONIS XP85012 (9000296)

  • Ham. R10754X-07-M16M (KT0001)

PHOTONIS XP85112 (9000897)

  • Ham. R10754X-07-M16M (KT0002)

Source: Lehmann, A. et al.: Improved lifetime of microchannel-plate PMTs. Nucl. Instr. and Meth. A, (0):-, 2014. 127, 128, 129 Mustafa Schmidt Disc DIRC 8 / 31

slide-10
SLIDE 10

9/31

Detector Requirements

Separation power (π, K): ≥ 4σ Momentum coverage: 1.5 . . . 4 GeV/c Polar acceptance min/max: θx = 10◦, θy = 5◦ θx,y = 22◦ Detector lifetime: ≥ 10 years in duty cycles of 6 m/y Distance to intersection point: ≈ 194 cm in front of EM calorimeter Magnetic field: 0.5 . . . 1.3 T Energy deposit in radiator: ≈ 500 Gy for fused silica Energy deposit in optics: ≈ 10 Gy for fused silica Charged hadron flux: ≈ 100 Hz/cm2 (Ekin > 10 MeV)

Mustafa Schmidt Disc DIRC 9 / 31

slide-11
SLIDE 11

10/31

Required Resolution

Calculation of required resolution for 4-σ-separation-power: σθC ≤ 1 4·

  • arccos
  • 1

n

  • 1 +

4 GeV

  • − arccos
  • 1

n

  • 1 +

mK

4 GeV

  • 1

2 3 4 5 6 7 8 9 10 π/K-separation [σ] 1 2 3 4 5 6 7 8 9 10 θ

c resolution per track [mrad]

2 G e V / c 3 G e V / c 4 G e V / c BaBar tracking error

Mustafa Schmidt Disc DIRC 10 / 31

slide-12
SLIDE 12

11/31

Effects on Photon Transport

Photon trapping inside radiator due to internal reflection (approx. 70 % constant for θ > 10◦) Chromatic dispersion influencing photon resolution and time

  • f propagation:

tprop = s v = s c

  • n − λ dn

  • Bulk losses of photons described by Beer-Lambert law:

I = I0 exp

  • x

−µ(λ)

  • Fresnel and surface losses after N reflections due to surface

roughness: I = I0 · RN with R = 1 − (4π cos θiRqn/λ)2 Losses in filter due to spin vector rotation in strong magnetic field (Faraday effect)

Mustafa Schmidt Disc DIRC 11 / 31

slide-13
SLIDE 13

12/31

Choice of Material

Properties of chosen material: Large absorbtion length (less bulk losses) Small dispersion High radiation hardness Reasons for using fused silica: Already tested at BaBar DIRC High transmission for small wavelength Well understood technology Disadvantage: High production cost for polished radiator disk at large scale

Mustafa Schmidt Disc DIRC 12 / 31

slide-14
SLIDE 14

13/31

Cherenkov Angle Distributions

Cherenkov angle in fused silica:

1 2 3 4 5 6 p [GeV/c] 36 38 40 42 44 46 48 50 θ

c [◦]

e- pion kaon proton

Possible solutions for band width reduction: Higher photon statistics Reduction of wavelength acceptance (optical filter) Correction of dispersion by achromatic optics Correction by means of photons time of flight

Mustafa Schmidt Disc DIRC 13 / 31

slide-15
SLIDE 15

14/31

Radiation Hardness

Transmission losses of fused silica after radiation with γ-dose of 100 krad:

Source: Hoek, M.: Tailoring the radiation hard ness of fused silica. Nucl. Instr. and Meth. A, 639(1):227 – 230,

  • 2011. 107

Mustafa Schmidt Disc DIRC 14 / 31

slide-16
SLIDE 16

15/31

CERN Testbeam

Mustafa Schmidt Disc DIRC 15 / 31

slide-17
SLIDE 17

16/31

CERN Testbeam

Mustafa Schmidt Disc DIRC 16 / 31

slide-18
SLIDE 18

17/31

Photos from Testbeam Setup

Testbeam at CERN in May 2015 with 3 FELs and 2 MCPs:

Mustafa Schmidt Disc DIRC 17 / 31

slide-19
SLIDE 19

18/31

Testbeam Results

Pixel distribution with Monte-Carlo data (green) and testbeam measurements (black) for polar angles. . . θ = 6◦ θ = 7◦

Source: Etzelm¨ uller, Erik: DIRC 2015 Mustafa Schmidt Disc DIRC 18 / 31

slide-20
SLIDE 20

19/31

Testbeam Results

Source: Etzelm¨ uller, Erik: DIRC 2015 Mustafa Schmidt Disc DIRC 19 / 31

slide-21
SLIDE 21

20/31

Disc DIRC Model

Angle Definitions: particle φrel αFEL Radiator Disk FEL Particle θc ϕ tan ϕ′ = tan ϕ tan αFEL ϕ′

Mustafa Schmidt Disc DIRC 20 / 31

slide-22
SLIDE 22

21/31

Disc DIRC Model

Calculation of the Cherenkov angle: θc = arccos(sin θp cos φrel cos ϕ + cos θp sin ϕ) (1) θp: θ angle of particle φrel: angular difference between φ angle of particle and photon ϕ: Angle between total reflected photon and radiator disk surface Calculation of ϕ if θc is known: cos ϕ = A cos θc B ±

  • cos2 θp − cos2 θc

B +

A cos θc

B

  • (2)

with A = sin θp cos φrel and B = A2 + cos2 θp

Mustafa Schmidt Disc DIRC 21 / 31

slide-23
SLIDE 23

22/31

Calibration

Correlation between pixel number and angle ϕ′:

Pixel # 10 20 30 40 50 60 70 80 90 100 [rad] ϕ Angle 0.9 0.95 1 1.05 1.1 1.15 1.2

Fit Parameters 1.68377e-05 ± m = 0.00347196 0.000888066 ± b = 0.852934

_(FEL) α Calibration

tan ϕ = tan ϕ′ · tan αFEL

Mustafa Schmidt Disc DIRC 22 / 31

slide-24
SLIDE 24

23/31

Future Disc DIRC Prototype

Test simulations with new Disc DIRC prototype in Geant4:

Mustafa Schmidt Disc DIRC 23 / 31

slide-25
SLIDE 25

24/31

Reconstruction of Cherenkov Angles

Testbeam simulations with 55% π+, 30% p, 5% K Beam momentum: p = 2 GeV/c (diameter: 2 cm uniform)

hist4 Entries 10000 Mean 44.26 RMS 2.778 [deg]

c

θ Reconstructed Cherenkov Angle 40 41 42 43 44 45 46 47 48 Entries 20 40 60 80 100 120 140 160 180 200 220 hist4 Entries 10000 Mean 44.26 RMS 2.778

Cherenkov Angle Distribution

Reconstruction results without removing outliers

Mustafa Schmidt Disc DIRC 24 / 31

slide-26
SLIDE 26

25/31

Separation Power

Calculation of separation power for p = 3 GeV/c: nσ = ¯ θc,π − ¯ θc,k

1 2(σ¯ θc,π + σ¯ θc,k) = 2.9

Probability for misidentification: Pmisid(nσ) = 1 2

  • 1 − erf

2 · √ 2

  • = 7.1 %

nσ 2 σ1 nσ 2 σ2 Mustafa Schmidt Disc DIRC 25 / 31

slide-27
SLIDE 27

26/31

Reconstruction & PID Algorithm

Input parameters:

Particle momentum vector p Particle angle and position (θp, φp, x, y) Hit pattern (zi, ti, sensor id) Mass hypotheses (mπ, mK, mp)

Calculation of all possible photon paths Computation of theoretical hit pattern and time of propagation Removing unwanted bhits with |z − zpred| < zthresh Matching of arrival times and removing of outliers: |t − tpred| < tthres Assuming gaussian probability density function and calculating pseudo likelihood function for each hypothesis: ln L =

N

  • i=0

[ln L(zi|zpred,i; σz) + ln L(ti|tpred,i; σt)]

Mustafa Schmidt Disc DIRC 26 / 31

slide-28
SLIDE 28

27/31

Example for Hit Pattern Prediction

Particle: π+, momentum p = 4 GeV/c, polar angle θ = 10◦, azimuth angle φ = 0◦

Focusing Element 2 4 6 8 10 12 14 Pixel 10 20 30 40 50 60 70 80 90 100 Time of Arrival [ns] 3.5 3.6 3.7 3.8 3.9 4 4.1 4.2 4.3 4.4 4.5

Theoretical Hit Pattern

Focusing Element 2 4 6 8 10 12 14 Pixel 10 20 30 40 50 60 70 80 90 100 Time of Arrival [ns] 3.5 3.6 3.7 3.8 3.9 4 4.1 4.2 4.3 4.4 4.5

Simulated Hit Pattern

Mustafa Schmidt Disc DIRC 27 / 31

slide-29
SLIDE 29

28/31

Simulation Parameters for Performance Study

Simulation parameters for final detector with TOFPET readout system: Material: Fused silica (definition of refractive index, absorption length and reyleigh length) Mirror coating

Type: Dielectric metal Gaussian scatter angle: 0.6 mrad Reflectivity: 85%

Time resolution (RMS): 21 ps TDC binning (LSB): 50 ps Pixel line height: 0.5 mm Surface roughness: 1.0 nm Track position error σx,y: 1.0 mm Track angular error σθp,φp : 1 mrad

Mustafa Schmidt Disc DIRC 28 / 31

slide-30
SLIDE 30

29/31

Detector Performance

RMS values Misidentificaion for π and K

Source: Merle, Oliver: Development, design and optimization of a novel Endcap DIRC for PANDA, Phd Thesis, JLU Giessen, 2015 Mustafa Schmidt Disc DIRC 29 / 31

slide-31
SLIDE 31

30/31

Summary & Outlook

Full simulation (Geant4/PandaRoot), reconstruction and PID algorithm available Disc DIRC prototype with 15 FELs development in progress Possibilities for testing in cosmics test stand at University of Giessen and test beam facilities (DESY, J¨ ulich, CERN etc.) Influences of magnetic fields have to be studied further Photon yields of simulation and measurement must be analyzed

Mustafa Schmidt Disc DIRC 30 / 31

slide-32
SLIDE 32

31/31

Thank you very much for your attention!
