Data Structures in Java Lecture 2: Array and Linked Lists. 9/9/2015 - PowerPoint PPT Presentation

Data Structures in Java Lecture 2: Array and Linked Lists. 9/9/2015 Daniel Bauer 1 The List ADT A 0 A 1 A 2 A 3 A 4 A 5 A 6 The List ADT A list L is a sequence of N objects A 0 , A 1, A 2, , A N-1 A 0 A 1 A 2 A 3 A 4 A 5 A 6 The List

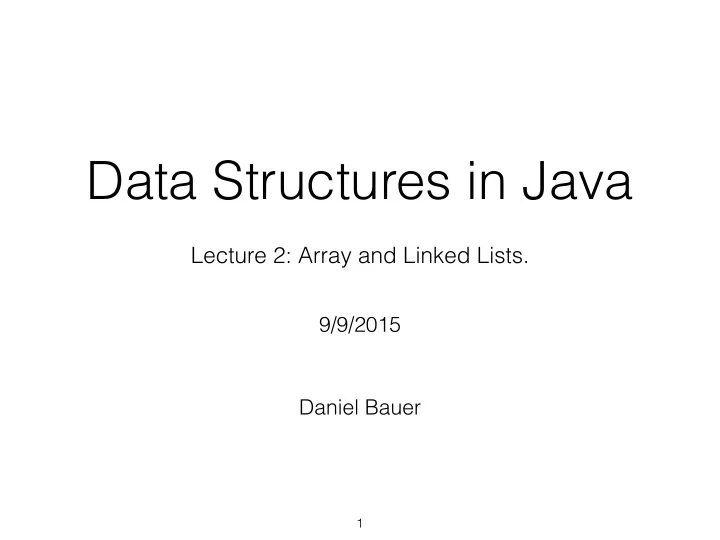

  1. Data Structures in Java Lecture 2: Array and Linked Lists. 9/9/2015 Daniel Bauer 1

  2. The List ADT A 0 A 1 A 2 A 3 A 4 A 5 A 6

  3. The List ADT • A list L is a sequence of N objects A 0 , A 1, A 2, …, A N-1 A 0 A 1 A 2 A 3 A 4 A 5 A 6

  4. The List ADT • A list L is a sequence of N objects A 0 , A 1, A 2, …, A N-1 • N is the length/size of the list. List with length N=0 is called the empty list. A 0 A 1 A 2 A 3 A 4 A 5 A 6

  5. The List ADT • A list L is a sequence of N objects A 0 , A 1, A 2, …, A N-1 • N is the length/size of the list. List with length N=0 is called the empty list. • A i follows/succeeds A i-1 for i > 0. A 0 A 1 A 2 A 3 A 4 A 5 A 6

  6. The List ADT • A list L is a sequence of N objects A 0 , A 1, A 2, …, A N-1 • N is the length/size of the list. List with length N=0 is called the empty list. • A i follows/succeeds A i-1 for i > 0. • A i precedes A i+1 for i < N. A 0 A 1 A 2 A 3 A 4 A 5 A 6

  7. Typical List Operations A 0 A 1 A 2 A 3 A 4 A 5 A 6

  8. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6

  9. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty()

  10. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size()

  11. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k)

  12. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x)

  13. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x) • boolean remove(k)

  14. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x) • boolean remove(k) • int find(x) / indexOf(x)

  15. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x) • boolean remove(k) • int find(x) / indexOf(x) • Object next()

  16. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x) • boolean remove(k) • int find(x) / indexOf(x) • Object next() • Object previous()

  17. Typical List Operations • void printList() A 0 A 1 A 2 A 3 A 4 A 5 A 6 • void makeEmpty() • int size() • Object findKth(k) / get(k) • boolean insert(x, k), append(x) • boolean remove(k) • int find(x) / indexOf(x) • Object next() • Object previous() • void removeCurrent()

  18. Array Lists • Just a thin layer wrapping an array. public class SimpleArrayList implements List{ public static final int DEFAULT_CAPACITY = 10; private int theSize; private Integer[] theItems; public SimpleArrayList() { theItems = new Integer[DEFAULT_CAPACITY]; } } 1 7 3 5 2 1 3

  19. Running Time for Array List Operations 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 Operation Number of Steps printList find(x) findKth(k) insert(x,k) remove(x)

  20. Running Time for Array List Operations 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 Operation Number of Steps N printList N find(x) findKth(k) insert(x,k) remove(x)

  21. Running Time for Array List Operations 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 Operation Number of Steps N printList N find(x) 1 findKth(k) insert(x,k) remove(x)

  22. Array List: Insert/Remove 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 insert(x,k) remove(x)

  23. Array List: Insert/Remove 1 7 3 5 2 1 3 5 N=7 0 1 2 3 4 5 6 7 8 9 insert(5,7): 1 step insert(x,k) remove(x)

  24. Array List: Insert/Remove 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 insert(5,7): 1 step best case remove(7): 1 step insert(x,k) remove(x)

  25. Array List: Insert/Remove 7 moves 5 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 insert(5,7): 1 step best case remove(7): 1 step insert(5,0): 7 steps worst case insert(x,k) remove(x)

  26. Array List: Insert/Remove 7 moves 5 1 7 3 5 2 1 3 N=7 0 1 2 3 4 5 6 7 8 9 insert(5,7): 1 step best case remove(7): 1 step insert(5,0): 7 steps worst case remove(0): O(N) N insert(x,k) N remove(x)

  27. Expanding Array Lists • What if we are running out of space during append/ insert • first copy all elements into a new array of sufficient size newCapacity = arr.length * 2; Integer[ ] old = theItems; theItems = new Integer[newCapacity]; for( int i = 0; i < size( ); i++ ) 1 7 3 5 2 theItems[ i ] = old[ i ]; 1 3 2 7 5 0 1 2 3 4 5 6 7 8 9

  28. Simple Linked Lists • Series of Nodes. Each Node contains: • A reference to the data object it contains. • A reference to the next node in the List. public class Node { public Integer data; public Node next; public Node(Integer d, Node n) { data = d; next = n; } } A 0 A 1 A 2 A 3 null

  29. Running Time for Simple Linked List Operations 42 23 5 9 null printList find(x) findKth(k) next()

  30. Running Time for Simple Linked List Operations 42 23 5 9 null N printList find(x) findKth(k) next()

  31. Running Time for Simple Linked List Operations 42 23 5 9 null N printList N find(x) findKth(k) next()

  32. Running Time for Simple Linked List Operations 42 23 5 9 null N printList N find(x) k findKth(k) next()

  33. Running Time for Simple Linked List Operations 42 23 5 9 null N printList N find(x) k findKth(k) 1 next() In many applications we can use next() instead of findKth(k). (for every element in the list do… / filter the list … )

  34. Simple Linked List Removal 42 23 5 9 null findKth(k) k next() 1 insert(x,k) remove(k)

  35. Simple Linked List Removal 42 23 5 9 null remove(2) findKth(k) k next() 1 insert(x,k) search time + 1 remove(k)

  36. Simple Linked List Removal 42 23 9 null remove(2) findKth(k) k next() 1 insert(x,k) search time + 1 remove(k)

  37. Simple Linked List Insertion 42 23 9 null insert(x,k)

  38. Simple Linked List Insertion 42 23 9 null insert(5,2) insert(x,k)

  39. Simple Linked List Insertion 42 23 9 null insert(5,2) insert(x,k)

  40. Simple Linked List Insertion 42 23 5 9 null insert(5,2) insert(x,k)

  41. Simple Linked List Insertion 42 23 5 9 null insert(5,2) insert(x,k)

  42. Simple Linked List Insertion 42 23 5 9 null insert(5,2) search time +1 insert(x,k)

  43. Simple Linked List Insertion 42 23 5 9 null insert(5,2) search time +1 insert(x,k) Inserting in position 0? Inserting in position N-1?

  44. Simple Linked List Insertion 42 23 5 9 null insert(5,2) search time +1 insert(x,k) Inserting in position 0? Inserting in position N-1? Linked list should remember the first and last object.

  45. Doubly Linked Lists • Also maintain reference to previous node in the list. • Speeds up append at end of list. private class Node { public Integer data; public Node next; public Node prev; public Node(Integer d, Node n, Node p) { data = d; next = n; prev = n; } } A 0 A 1 A 2 A 3

  46. Doubly Linked List with Sentinel Nodes • header node, tail node • make implementation of next / previous easier . • Remove other special cases
 (e.g. removing first node/last node) head A 0 A 1 A 2 tail A 3

  47. Empty Doubly Linked List with Sentinel Nodes head tail
