CS 473: Algorithms Chandra Chekuri Ruta Mehta University of - PowerPoint PPT Presentation

CS 473: Algorithms Chandra Chekuri Ruta Mehta University of Illinois, Urbana-Champaign Fall 2016 Chandra & Ruta (UIUC) CS473 1 Fall 2016 1 / 32 CS 473: Algorithms, Fall 2016 Universal Hashing Lecture 10 September 23, 2016 Chandra

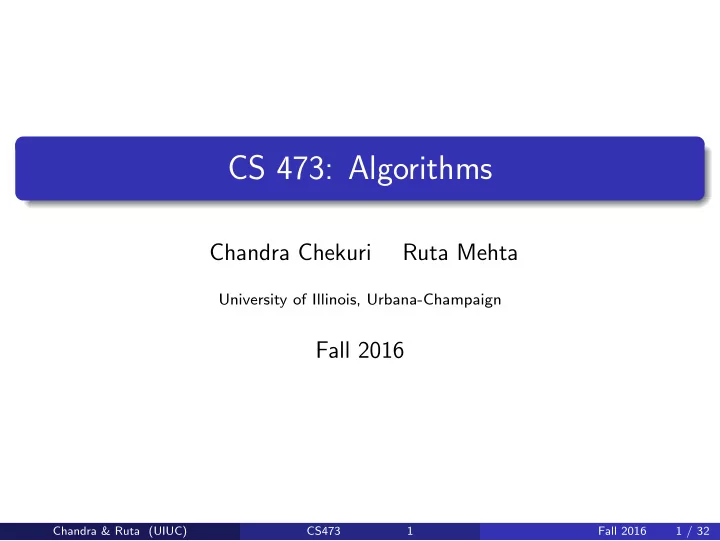

  1. CS 473: Algorithms Chandra Chekuri Ruta Mehta University of Illinois, Urbana-Champaign Fall 2016 Chandra & Ruta (UIUC) CS473 1 Fall 2016 1 / 32

  2. CS 473: Algorithms, Fall 2016 Universal Hashing Lecture 10 September 23, 2016 Chandra & Ruta (UIUC) CS473 2 Fall 2016 2 / 32

  3. Part I Hash Tables Chandra & Ruta (UIUC) CS473 3 Fall 2016 3 / 32

  4. Dictionary Data Structure U : universe of keys with total order: numbers, strings, etc. 1 Data structure to store a subset S ⊆ U 2 Operations: 3 Search / look up : given x ∈ U is x ∈ S ? 1 Insert : given x �∈ S add x to S . 2 Delete : given x ∈ S delete x from S 3 Static structure: S given in advance or changes very 4 infrequently, main operations are lookups. Dynamic structure: S changes rapidly so inserts and deletes as 5 important as lookups. Can we do everything in O(1) time? Chandra & Ruta (UIUC) CS473 4 Fall 2016 4 / 32

  5. Hashing and Hash Tables Hash Table data structure: A (hash) table/array T of size m (the table size ). 1 A hash function h : U → { 0 , . . . , m − 1 } . 2 Item x ∈ U hashes to slot h(x) in T . 3 Chandra & Ruta (UIUC) CS473 5 Fall 2016 5 / 32

  6. Hashing and Hash Tables Hash Table data structure: A (hash) table/array T of size m (the table size ). 1 A hash function h : U → { 0 , . . . , m − 1 } . 2 Item x ∈ U hashes to slot h(x) in T . 3 Given S ⊆ U . How do we store S and how do we do lookups? Chandra & Ruta (UIUC) CS473 5 Fall 2016 5 / 32

  7. Hashing and Hash Tables Hash Table data structure: A (hash) table/array T of size m (the table size ). 1 A hash function h : U → { 0 , . . . , m − 1 } . 2 Item x ∈ U hashes to slot h(x) in T . 3 Given S ⊆ U . How do we store S and how do we do lookups? Ideal situation: Each element x ∈ S hashes to a distinct slot in T . Store x in 1 slot h(x) Lookup : Given y ∈ U check if T[h(y)] = y . O(1) time! 2 Chandra & Ruta (UIUC) CS473 5 Fall 2016 5 / 32

  8. Hashing and Hash Tables Hash Table data structure: A (hash) table/array T of size m (the table size ). 1 A hash function h : U → { 0 , . . . , m − 1 } . 2 Item x ∈ U hashes to slot h(x) in T . 3 Given S ⊆ U . How do we store S and how do we do lookups? Ideal situation: Each element x ∈ S hashes to a distinct slot in T . Store x in 1 slot h(x) Lookup : Given y ∈ U check if T[h(y)] = y . O(1) time! 2 Collisions unavoidable if | T | < |U| . Several techniques to handle them. Chandra & Ruta (UIUC) CS473 5 Fall 2016 5 / 32

  9. Handling Collisions: Chaining Collision: h(x) = h(y) for some x � = y . Chaining/Open hashing to handle collisions: For each slot i store all items hashed to slot i in a linked list. 1 T[i] points to the linked list Lookup : to find if y ∈ U is in T , check the linked list at 2 T[h(y)] . Time proportion to size of linked list. f y s Does hashing give O(1) time per operation for dictionaries? Chandra & Ruta (UIUC) CS473 6 Fall 2016 6 / 32

  10. Hash Functions Parameters: N = |U| (very large), m = | T | , n = | S | Goal: O(1) -time lookup, insertion, deletion. Single hash function If N ≥ m 2 , then for any hash function h : U → T there exists i < m such that at least N / m ≥ m elements of U get hashed to slot i . Chandra & Ruta (UIUC) CS473 7 Fall 2016 7 / 32

  11. Hash Functions Parameters: N = |U| (very large), m = | T | , n = | S | Goal: O(1) -time lookup, insertion, deletion. Single hash function If N ≥ m 2 , then for any hash function h : U → T there exists i < m such that at least N / m ≥ m elements of U get hashed to slot i . Any S containing all of these is a very very bad set for h ! Chandra & Ruta (UIUC) CS473 7 Fall 2016 7 / 32

  12. Hash Functions Parameters: N = |U| (very large), m = | T | , n = | S | Goal: O(1) -time lookup, insertion, deletion. Single hash function If N ≥ m 2 , then for any hash function h : U → T there exists i < m such that at least N / m ≥ m elements of U get hashed to slot i . Any S containing all of these is a very very bad set for h ! Such a bad set may lead to O(m) lookup time! Chandra & Ruta (UIUC) CS473 7 Fall 2016 7 / 32

  13. Hash Functions Parameters: N = |U| (very large), m = | T | , n = | S | Goal: O(1) -time lookup, insertion, deletion. Single hash function If N ≥ m 2 , then for any hash function h : U → T there exists i < m such that at least N / m ≥ m elements of U get hashed to slot i . Any S containing all of these is a very very bad set for h ! Such a bad set may lead to O(m) lookup time! Lesson: Consider a family H of hash functions with good properties and choose h uniformly at random. Guarantees: small # collisions in expectation for a given S . H should allow efficient sampling. Chandra & Ruta (UIUC) CS473 7 Fall 2016 7 / 32

  14. Universal Hashing Question: What are good properties of H in distributing data? Chandra & Ruta (UIUC) CS473 8 Fall 2016 8 / 32

  15. Universal Hashing Question: What are good properties of H in distributing data? Uniform: Consider any element x ∈ U . Then if h ∈ H is 1 picked randomly then x should go into a random slot in T . In other words Pr [h(x) = i] = 1 / m for every 0 ≤ i < m . Chandra & Ruta (UIUC) CS473 8 Fall 2016 8 / 32

  16. Universal Hashing Question: What are good properties of H in distributing data? Uniform: Consider any element x ∈ U . Then if h ∈ H is 1 picked randomly then x should go into a random slot in T . In other words Pr [h(x) = i] = 1 / m for every 0 ≤ i < m . Universal: Consider any two distinct elements x , y ∈ U . Then 2 if h ∈ H is picked randomly then the probability of a collision between x and y should be at most 1 / m . In other words Pr [h(x) = h(y)] = 1 / m (cannot be smaller). Chandra & Ruta (UIUC) CS473 8 Fall 2016 8 / 32

  17. Universal Hashing Question: What are good properties of H in distributing data? Uniform: Consider any element x ∈ U . Then if h ∈ H is 1 picked randomly then x should go into a random slot in T . In other words Pr [h(x) = i] = 1 / m for every 0 ≤ i < m . Universal: Consider any two distinct elements x , y ∈ U . Then 2 if h ∈ H is picked randomly then the probability of a collision between x and y should be at most 1 / m . In other words Pr [h(x) = h(y)] = 1 / m (cannot be smaller). Second property is stronger than the first and the crucial issue. 3 Definition A family of hash function H is ( 2 -) universal if for all distinct x , y ∈ U , Pr h ∼H [h(x) = h(y)] = 1 / m where m is the table size. Chandra & Ruta (UIUC) CS473 8 Fall 2016 8 / 32

  18. Analyzing Universal Hashing Question: Fixing set S , what is the expected time to look up x ∈ S when h is picked uniformly at random from H ? ℓ (x) : the size of the list at T[h(x)] . We want E [ ℓ (x)] 1 For y ∈ S let D y be one if h(y) = h(x) , else zero. 2 ℓ (x) = � y ∈ S D y Chandra & Ruta (UIUC) CS473 9 Fall 2016 9 / 32

  19. Analyzing Universal Hashing Question: Fixing set S , what is the expected time to look up x ∈ S when h is picked uniformly at random from H ? ℓ (x) : the size of the list at T[h(x)] . We want E [ ℓ (x)] 1 For y ∈ S let D y be one if h(y) = h(x) , else zero. 2 ℓ (x) = � y ∈ S D y E[ ℓ (x)] = � y ∈ S E [D y ] = � y ∈ S Pr[h(x) = h(y)] 1 = � (since H is a universal hash family) y ∈ S m = | S | / m ≤ 1 if | S | ≤ m Chandra & Ruta (UIUC) CS473 9 Fall 2016 9 / 32

  20. Analyzing Universal Hashing Question: What is the expected time to look up x in T using h assuming chaining used to resolve collisions? Answer: O(n / m) . Chandra & Ruta (UIUC) CS473 10 Fall 2016 10 / 32

  21. Analyzing Universal Hashing Question: What is the expected time to look up x in T using h assuming chaining used to resolve collisions? Answer: O(n / m) . Comments: O(1) expected time also holds for insertion. 1 Analysis assumes static set S but holds as long as S is a set 2 formed with at most O(m) insertions and deletions. Worst-case : look up time can be large! How large? 3 Ω(log n / log log n) Chandra & Ruta (UIUC) CS473 10 Fall 2016 10 / 32

  22. Universal Hash Family Universal: H such that Pr[h(x) = h(y)] = 1 / m . All functions H : Set of all possible functions h : U → { 0 , . . . , m − 1 } . Universal. Chandra & Ruta (UIUC) CS473 11 Fall 2016 11 / 32

  23. Universal Hash Family Universal: H such that Pr[h(x) = h(y)] = 1 / m . All functions H : Set of all possible functions h : U → { 0 , . . . , m − 1 } . Universal. |H| = m |U| representing h requires |U| log m – Not O(1) ! Chandra & Ruta (UIUC) CS473 11 Fall 2016 11 / 32

  24. Universal Hash Family Universal: H such that Pr[h(x) = h(y)] = 1 / m . All functions H : Set of all possible functions h : U → { 0 , . . . , m − 1 } . Universal. |H| = m |U| representing h requires |U| log m – Not O(1) ! We need compactly representable universal family. Chandra & Ruta (UIUC) CS473 11 Fall 2016 11 / 32

  25. Compact Universal Hash Family Parameters: N = |U| , m = | T | , n = | S | Choose a prime number p ≥ N . Z p = { 0 , 1 , . . . , p − 1 } is a 1 field. For a , b ∈ Z p , a � = 0 , define the hash function h a , b as 2 h a , b (x) = ((ax + b) mod p) mod m . Let H = { h a , b | a , b ∈ Z p , a � = 0 } . Note that 3 |H| = p(p − 1) . Chandra & Ruta (UIUC) CS473 12 Fall 2016 12 / 32
