Crystalline Nanoporous Metal Organic Frameworks (Material Research Laboratory) Major: Biochemistry Antoin Douglawi Mentor: Prashant Jain Advisor: Anthony K. Cheetham Industrial Funding by Uniliver Coordination Polymers Extended

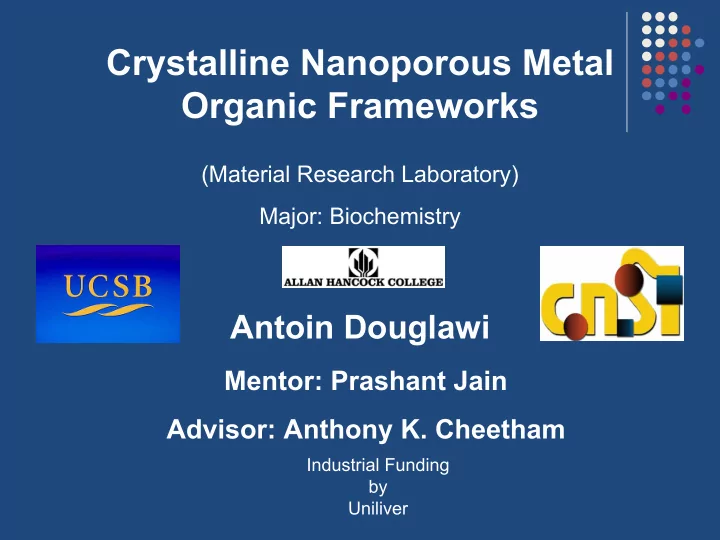

  1. Crystalline Nanoporous Metal Organic Frameworks (Material Research Laboratory) Major: Biochemistry Antoin Douglawi Mentor: Prashant Jain Advisor: Anthony K. Cheetham Industrial Funding by Uniliver

  2. Coordination Polymers • Extended Crystalline Organic-Inorganic Materials • 1D, 2D, or 3D

  3. 2D Frame

  4. 3D Frame

  5. Porous Structures

  6. Size of Pores Can Be Varied

  7. Multiple Pore Sizes

  8. Applications Gas storage and separation � � Hydrogen storage Optical applications � � Photoluminescence for sensors and displays Electronic applications � � Computer memory � Magnetic Materials � Single molecular magnets

  9. Multiferroics � Electric and Magnetic Phases Coexist. � Magnetoelectric (ME) Effect.

  10. Previous Work

  11. ABX 3 - [(CH 3 ) 2 NH 2 ] Zn(HCOO) 3

  12. Project Goals • Synthesize New Multiferroic Metal Organic Frameworks (MOFs) • Observe Effects of Different Central Cations on Multiferroic Properties • Create New Multivalence MOFs

  13. Our Approach � Trying Different Cations: • Trimethylamine • N-ethyl N-methyl amine � Mixed Valence Iron Formates

  14. Hydrothermal Synthesis Temperatures range from 125 – 200 o C Metal salt (Zn, Ni, Mn, Fe, Cu, Co) � Ammonium Cation (Trimethylamine, Organic Solvent � (Non)Aqueous Dimethylamine, N-ethyl N-methyl amine) Organic Ligand Solution Ammonium Cation Ligand (Formic acid, Acetic acid, � Carbodiimide acid) Metal Salt Organic Solvent (Dimethylformamide, � Diethyleformamide, water) Hydrothermal Bomb

  15. Compounds Created • New compound synthesized using: Nickel � � Trimethylamine (CH 3 ) 3 N � Formic Acid (HCOOH) � Dimethylformamide DMF � Does not match any compound in the database � Multiphase compound: Phases vary as temperatures change

  16. 15000 T 17 125 ° C 10000 Intensity 5000 0 10 20 30 40 Position [ ° 2Theta] X-ray Diffraction Data 15000 T 17 10000 150 ° C Intensity 5000 0 10 20 30 40 Position [°2Theta]

  17. Crystals Synthesized � MOF synthesized using: � Iron (III) � Copper (II) � Dimethylamine ( CH 3 ) 2 N � Formic Acid (HCOOH) � Two crystals � Green crystals � CO 2 templated Fe (III) formate � Black crystals � Unknown. Possibility of mixed valance iron compound

  18. T36 Crystals

  19. N-Ethyl N-Methyl Amine Cobalt (Co 2+ )

  20. Trimethylamine (TMA) Iron (Fe 2+ )

  21. Trimethylamine (TMA) Cobalt (Co 2+ )

  22. Acknowledgements Mentor: Prashant Jain Faculty Advisor: Prof. Anthony K. Cheetham Inset Staff: Nicholas Arnold, Liu-Yen Kramer, and Luke Bawazer Inset Director: Samantha Freeman Everyone at Inset for their support and efforts
