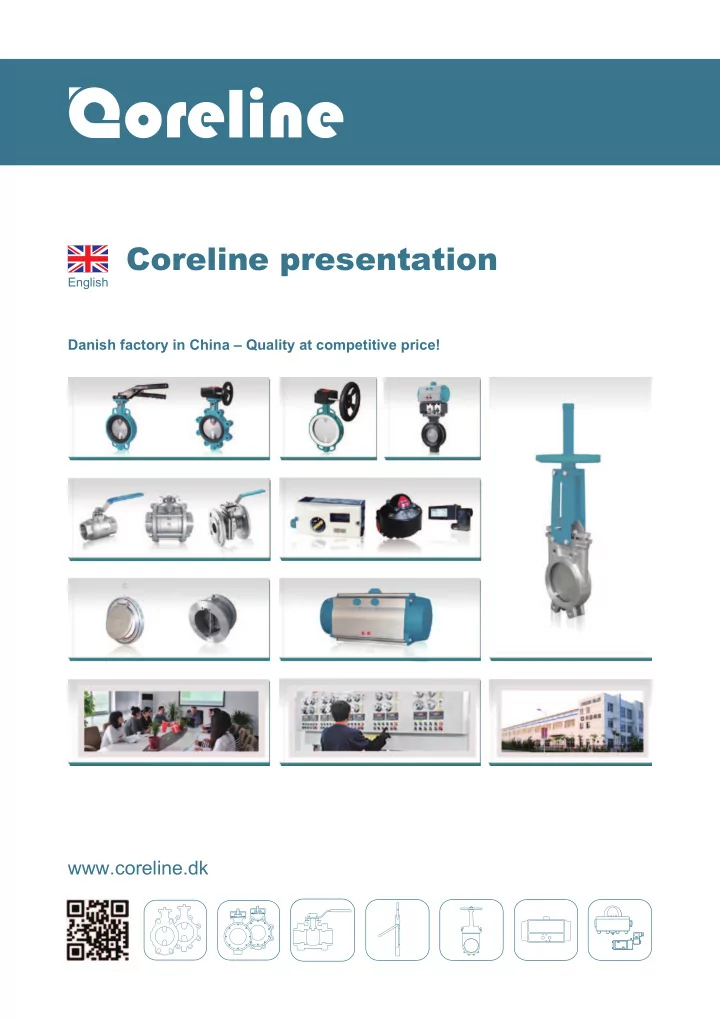

Coreline presentation English Danish factory in China Quality at - PDF document

Coreline presentation English Danish factory in China Quality at competitive price! www.coreline.dk INDEX page 3 Welcome to our Valve World page 4 About us page 5


  1. Coreline presentation English Danish factory in China – Quality at competitive price! www.coreline.dk

  2. INDEX page 3 ………………… Welcome to our Valve World page 4 ………………… About us page 5 ………………… Fig.120/125/160 Ball valves page 6 ………………… Fig.130 Ball valves page 7 ………………… Fig.131 Ball valves page 8 ………………… Fig.135/150/170 Ball valves page 9 ………………… Fig. 211/223/224 Butterfly valves page 10 ………………… Fig.225/226/263/264 Butterfly valves page 11 ………………… Fig.411 Knife gate valve, Fig.450 Y-angle valve page 12 ………………… Operation page 13+14 ……………. Accessories page 15 ………………… Fig.611/612/617 Check valves page 16 ………………… Fig.614 Thin wafer check valves www.coreline.dk 2/16

  3. Welcome to our Valve World… Dear reader, Coreline Wuxi is a 100% Danish factory with a lot of knowhow, quality production and low cost. Coreline Wuxi in China was founded in 2007 as a manufacturer of butterfly valves and check valves. By focusing on the production of quality valves, the company gradually achieved international clientele. Besides butterfly valves and check valves, we have developed high performance ball valves. In addition, the program has expanded to include complementary products supplied by other manufacturers, under the specifications and quality control of Coreline . High quality is consistently throughout the product range. Coreline will always provide quality products at a competitive price. Our technical knowledge result in innovative solutions to the advantage for our customers. We complement this with professional advice and service. We are aware that human resources are important and prioritize good conditions for staff, so the mood, motivation and service is top notch to benefit all of us. Continuously focus on high quality and highly trained staff, makes Coreline an attractive partner. You are always welcome to visit us at the factory in Wuxi, to explore our production, quality and organization. Many friendly greetings Ole Bjørn Jensen www.coreline.dk 3/16

  4. About us Efficient ERP Coreline has implemented an efficient German ERP system to manage inquiries, quotations, orders, purchase, warehouse and production. Barcodes in warehouse, production and quality control, ensure strictly organized flow, reliable delivery time and quality. Warehouse Coreline has many shelves, which are of great importance for expanding stock of components and finished goods, to improve delivery time and ensure better time for quality control. Together with new ERP with barcode system, this investment make the whole flow from purchase to order sufficient and lead to better service. QA To avoid time consuming and expensive claims, Coreline focus continuously on quality. We want to have an outstanding reputation and we can only achieve this by delivering error-free products and good service. INCOMMING INSPECTION Besides visual, functional and dimensional examinations, we also inspect the rubber shore hardness, rubber thickness, and analyze the metal and rubber chemical composition. PRODUCTION INSPECTION In the production line, educated and qualified staffs follow the instructions to ensure quality is according to requirements. Quality assurance employees support the operators. Painting thickness is measured for every layer. ASSEMBLY INSPECTION All mounted valves have to pass the pressure test. We also make 100% torque test and have records, which are saved in our company documentation for more than 10 years. FINAL INSPECTION All valves pass the final inspection. In the final inspection section, the finished valves are inspected for conformity to the customers’ requirements. Hereafter the valves are approved and released for the shipping section. Certificates Coreline quality is strictly certified by CQC ISO9001, CE/PED certified by DNV. Design and production are according to API, ASME, EN/DIN, BS and JIS standard. Professional painting equipment in house produces surface quality according to requirement, for instance NORSOK marine. Valve rubbers have approval of DVGW, KTW, WRAS and FDA. KTW EU 1935 www.coreline.dk 4/16

  5. Fig.120 2PC ball valve Connection: Thread ends BSPP - ISO228/1. Alternative NPT, BSPT Size range: ¼” to 2”. Alternative 2 ½” to 3” Pressure rating: PN63 Face to face : DIN3202 M3 Body: Stainless steel 316 Seat: PTFE. Alternative RPTFE Operation: Hand lever, with or without safety lock □ For general industrial and chemical applications, provides safe, economical performance . □ 2-piece compact design of body. □ Full bore for better Kv/Cv value. □ Solid ball for high performance tasks. □ Anti-blow out stem design. □ Face to face dimension confirms to DIN3202 M3. □ Other materials available on request. Fig.125 2PC ball valve with ISO mounting pad Connection: Thread ends BSPP - ISO228/1. Alternative NPT, BSPT Size range: ½” to 3”. Pressure rating: PN63 Face to face : DIN3202 M3 Body: Stainless steel 316. Carbon steel as option Seat: PTFE. Alternative RPTFE Operation: Hand lever, pneumatic actuator, electric actuator □ For general industrial and chemical applications, provides safe, economical performance □ Full bore for better Kv value. □ Anti-static devices for ball - stem - body. □ Solid ball for high performance tasks. □ Blow-out proof stem. □ Pressure relief hole in ball slot. □ ISO5211 direct mounting pad for easy automation. □ Face to face dimension confirms to DIN3202 M3. □ Other materials available on request. Fig.160 3 way ball valve with ISO mounting pad Connection: Thread ends Size range: ¼” to 2”. Pressure rating: PN63 Body: Stainless steel 316 , carbon steel Seat: PTFE, RPTFE Operation: Hand lever, pneumatic actuator, electric actuator □ L port / T port. □ Investment casting. □ Full bore for better Kv value. □ Anti-static devices for option. □ Blow-out proof stem. □ Pressure relief hole in ball slot for option. □ ISO5211 direct mounting pad for easy automation. www.coreline.dk 5/16

  6. Fig.130 3PC heavy duty ball valve - Wax casted Connection: Thread ends BSPP - ISO228/1 Butt weld ends (CS) - EN12627 Butt weld ends (SS) - DIN2463 / ISO1127 / SMS3008 Size range: Full bore: ¼” to 2” Reduce bore: ½” to 2 ½” Pressure rating: ¼” - 1”: 2000psi 1 ¼” - 2 ½”: 1500psi Body: Carbon steel, stainless steel 316 End caps: Carbon steel, stainless steel 316L Ball/stem: Stainless steel 316 Seat: PTFE with 25% carbon, RPTFE Operation: Hand lever, pneumatic actuator, electric actuator Stem constructions Fire safe type Fire safe with approval - API607 and EN ISO10497. Belleville washers provide dynamic life Contact Coreline if required. loaded stem sealing, even with temperature fluctuations. Chevron V-shape packing as secondary sealing by stem is dynamic and safe sealing for both pressure and vacuum. Specially designed 45° slope of stem together with packing made of PTFE+25% carbon, ensuring very long life time of primary sealing. Stardard cap Fire safe cap Design features Groove on the stem show the direction of ball. Stem is square which is good for automation, having four driving points to absorb strength. Lock cap for nut, ensure life loaded sealing. Chevron shape packing in Belleville washers provide dynamic highly wear-resistant life loaded stem sealing, even with PTFE+25% carbon material, temperature fluctuations. provide optimum stem packing box and long cycle life. Fully machined ISO5211 mounting pad. FPM O-ring provides excellent sealing by air and vacuum Precisely machined and mirror applications. polished ball surface for bubble tight shutoff with low operating torque. Specially designed 45° slope of stem together with packing Anti-static device for ball-stem-body. made of PTFE+25% carbon, ensuring very long life time of Relief hole in stem slot of ball to primary sealing. balance the pressure in the body cavity. Tracks in seat to relieve pressure, reducing wear and SS316 ball valves with welding ends operating torque. CF3M material as standard, which reduces inter-granular corrosion by welding. Fully encapsulated body sealing up to 2” provide safe sealing and directly welding in line without disassembly. Same bolt circle diameter and body face to face dimension as many wellknown brands, makes the valve easy interchangeable. www.coreline.dk 6/16
