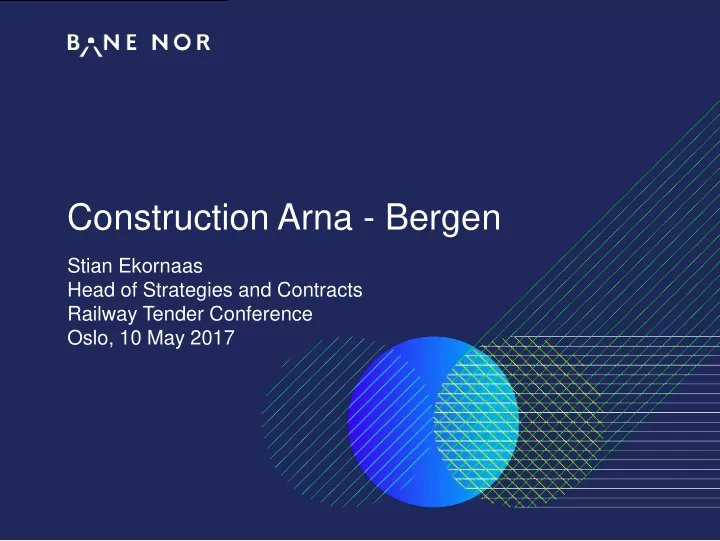

Construction Arna - Bergen Stian Ekornaas Head of Strategies and Contracts Railway Tender Conference Oslo, 10 May 2017

Construction Arna - Bergen • 2 projects: ‒ Arna – Fløen ‒ Bergen – Fløen • Approx. 50 employees in Client organisation • Offices in Arna and the city centre of Bergen 2 Information is correct as of 10 May 2017, but may be subject to change.

Arna – Fløen – Bergen 3

Arna - Fløen • Production from 2014 • Completed 2022 • New parallel tunnel Arna – Fløen (Ulriken tunnel) ‒ TBM ‒ Breakthrough autumn 2017 • Arna station ‒ Start-up August 2017 • UUT 31 Railway-technical contract 4 Information is correct as of 10 May 2017, but may be subject to change.

TBM - New Ulriken tunnel 5 Information is correct as of 10 May 2017, but may be subject to change.

Arna station 2022 6 Information is correct as of 10 May 2017, but may be subject to change.

UUT 31 Railway-technical contract - p.1 • Interdisciplinary railway-technical contract ‒ Track/superstructure ‒ Catenary system ‒ Low-voltage system ‒ High-voltage system ‒ Telecommunications • New tunnel (7,8 km) • Updating old tunnel • Arna station area 7 Information is correct as of 10 May 2017, but may be subject to change.

Railway-technical work at Arna station 8 Information is correct as of 10 May 2017, but may be subject to change.

UUT 31 Railway-technical contract - p.2 • Tendered autumn 2017 • Contract summer 2018 • Planned start-up 1. quarter 2019 • Completion 3. quarter 2022 • Detailed design delivered by Bane NOR • Contractor will be responsible for design of the slab track part of the tunnel (7 km) • Estimated cost MNOK 500 9 Information is correct as of 10 May 2017, but may be subject to change.

The New Ulriken Tunnel  Arna Bergen  10 Information is correct as of 10 May 2017, but may be subject to change.

Bergen - Fløen • Double-tracking Bergen – Fløen (1,3 km) • Renewal of existing systems • Project underway for several years • High complexity due to location (city centre), limited space and old infrastructure • Bane NOR needs to take into consideration several other projects ‒ Bergen light rail ‒ Freight terminal ‒ Railway projects • Bane NOR will review the scope of the project • Working on a new project progress plan. This will be settled in the near future 11 Information is correct as of 10 May 2017, but may be subject to change.
