Connecting declarative software tools Declarative tools [for] connecting software Salvador Lucas Dep. de Sistemas Informticos y Computacin Universidad Politcnica de Valencia slucas@dsic.upv.es Summary Connecting declarative software

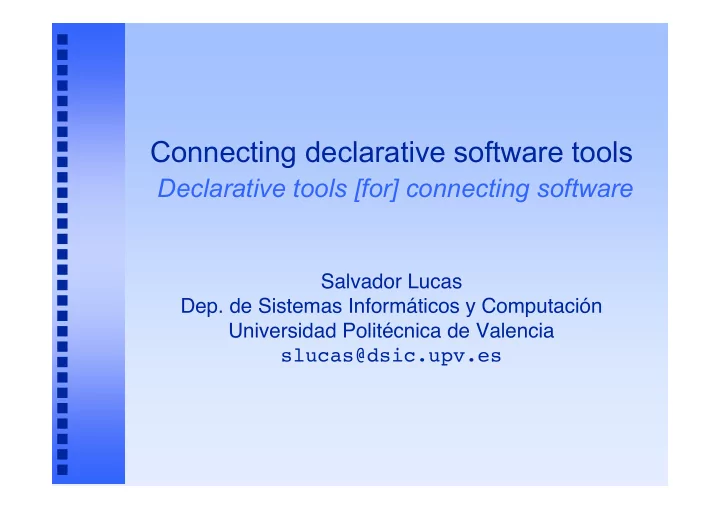

  1. Connecting declarative software tools Declarative tools [for] connecting software Salvador Lucas Dep. de Sistemas Informáticos y Computación Universidad Politécnica de Valencia slucas@dsic.upv.es

  2. Summary  Connecting declarative software tools:  The verifying compiler project  Concrete problems  Interoperability for declarative tools and languages  Declarative tools for connecting software:  Models and logics for Web analysis and development  Declarative models for security protocols  Conclusions and future work

  3. Connecting declarative software tools

  4. Connecting declarative tools  As part of the 50th anniversary of the Journal of the ACM, an special issue of the journal by highly renowned researchers was published ( Journal of the ACM vol 50, issue 1, January 2003 )  The aim was to establish the most important challenges in Informatics and Computer Science for the XXI century

  5. Connecting declarative tools  The verifying compiler: a grand (although classic!) challenge revisited by T. Hoare  Program verification, program debugging, and program analysis will be essential components of such a tool  Its effective development will require an incremental and cooperative effort from different work teams all around the world

  6. Motivation: declarative languages Maude Interpreter Report of proof User’s program MU-TERM Constraints Solution (coeff) CiME

  7. Motivation: declarative languages How to connect these tools for automatically proving termination of such programs?

  8. Connecting software tools: concrete problems

  9. Connecting tools: concrete problems Maude Interpreter No connection MU-TERM Exchange file CiME

  10. Connecting tools: concrete problems Data structures : Maude C++ Interpreter Although they could be linked as object modules, the data representations should be (made) compatible for exchanging data through Haskell MU-TERM primary memory OCaml CiME

  11. Connecting tools: concrete problems Distributed : Maude Concrete syntax Interpreter Proofs of termination of Programs involve different kinds of knowledge and expertise. Combining different tools to prove termination MU-TERM CS restrictions is often necessary Constraint solving CiME

  12. Connecting tools: concrete problems Efficiency : Maude Laptop Interpreter Proofs of termination involve search problems which are costly. Having specialized servers devoted to prove termination can be useful Laptop MU-TERM Server CiME (Intra/Inter Net)

  13. Connecting tools: concrete problems International : Maude USA Interpreter Maude is developed and maintained (mainly) by the UIUC and SRI at USA; MU-TERM has been made at the UPV (Spain) Spain CiME is being developed at MU-TERM the U. Paris VII (France) France CiME

  14. Connecting applications: interoperability

  15. Connecting applications  Interoperability: making possible for a program on one system to get access to programs and data on another system  Solutions: Middleware systems, e.g.,  COM  .NET  XML WWW Services

  16. Connecting applications  Example: .NET:  A core language (CLR) provides an abstract machine to implement more sophisticated languages:  C++ (or C#),  Java (or Java#)  ML,  Haskell (Mondrian), etc.  The implementations can use a number of libraries (for GUIs, remote access ,…)

  17. Connecting applications  .NET Remoting: Client Server Stub Proxy Stub Proxy Frontier of AppDomain Frontier of AppDomain AppDomains represent local or remote applications

  18. Connecting applications  Joining .NET through COM: Haskell COM Component Example.idl ExampleProxy.hs EXAMPLE.hs HDirect Com.lhs (lib) RTS RCW

  19. Connecting applications  WWW services: Client Server XML SOAP SOAP XML UDDI / WSDL UDDI / WSDL

  20. Connecting applications  Common problems  Exchanging data  Defining remote services  Finding external applications / servers  Implementing remote calls  Receiving results of remote calls

  21. Connecting software tools: concrete actions

  22. Connecting applications: actions  TPDB  Recent common format for TRSs and termination problems:  Conditional equations / rules  Strategies  Type of problem (TRS, SRS, LP, …)

  23. Connecting applications: actions  Add information for specifying proofs  Simple / C ε / DP-Simple termination  Constraint solving  Modular structure  Heuristics (and its combinations)  Ad-hoc partial / external proofs  Use of XML for producing input / output information on proofs (e.g., for certification purposes)

  24. Connecting applications: actions This is an ambitious project which should eventually be agreed / addressed by the interested community. Coordination with some technical groups (e.g., IFIP WG 1.6 or 1.3,…) would be interesting / desirable

  25. Declarative tools for connecting software

  26. Declarative tools for connectivity  Web site: a collection of connected Web pages  Dynamic modeling: focus on the transitions between Web pages

  27. p 4 Rewriting model p 2 p 3 p 1 href= href= href= p 5

  28. p 4 Rewriting model p 2 p 3 p 1 (U) → p 2 (U) p 1 (U) → p 3 (U) p 1 (U) → p 5 (U) p 5

  29. p 4 Rewriting model p 3 p 1 (U) → p 2 (U) p 1 (U) → p 3 (U) p 1 (U) → p 5 (U) p 5

  30. p 4 Rewriting model p 1 (U) → p 2 (U) p 3 ( u ) → p 4 ( u ) p 1 (U) → p 3 (U) p 3 ( u’ ) → p 5 ( u’ ) p 1 (U) → p 5 (U) p 5

  31. Rewriting model  Term Rewriting System (TRS): p 1 (U) → p 2 (U) p 3 ( u ) → p 4 ( u ) p 1 (U) → p 3 (U) p 3 ( u’ ) → p 5 ( u’ ) p 1 (U) → p 5 (U)  Rewriting theories: first order logic (with variables ranging on terms) together with a binary predicate R(x,y) associated to a TRS R:  R(x,y) = x → y : one-step rewriting theory  R(x,y) = x → ∗ y : rewriting theory

  32. Rewriting model and logics  Example: there is no ‘disconnected’ page: ™ y ∃ x ((x ≠ y) ∧ ((x → y) ∨ (y → x))) where ‘=‘ is the predicate R(x,y) associated to the empty TRS  Example: there is no unreachable page (from the ‘main’ page): ™ x (main → ∗ x) ™ x ∃ u (main(u) → ∗ x)

  33. Rewriting model and logics  Example: “ there is no ‘disconnected’ page” : ™ y ∃ x ((x ≠ y) ∧ ((x → y) ∨ (y → x))) where ‘=‘ is the predicate R(x,y) associated to the empty TRS  Example: “ there is no unreachable page (from the ‘main’ page) ”: ™ x (main → ∗ x) ™ x ∃ u (main(u) → ∗ x) ™ x (main(u 1 ) → ∗ x) ∨ … ∨ (main(u n ) → ∗ x))

  34. Rewriting model: improvements  Example: “ no ‘unsafe’ access is possible” : ™ p ™ q ™ u ™ v ((p(u) → ∗ q(v)) ⇒ (u=v))  This is a higher-order sentence which does not belong to any rewriting theory!

  35. Rewriting model: improvements  This can be solved by introducing a new binary symbol to put together web pages and users as constant symbols: e.g., browse(p,u) ™ p ™ q ™ u ™ v ((browse(p,u) → ∗ browse( q,v)) ⇒ (u=v))  Problem: no decidability results are available!!

  36. Rewriting model: in practice  Rewriting-based specification languages like Maude are well-suited to express dynamic models of Web sites  In Maude a small query language is available (see the proceedings for some examples)  Some existential queries are even possible on the basis of traversing the (finite) state space by using a breadth-first search strategy

  37. Rewriting model: network protocols  The NRL Protocol Analyzer (NPA) is a well-known tool for the formal specification and analysis of cryptographic protocols  For the first time a precise formal specification of its grammar-based techniques for invariant generation, one of the main features of the NPA inference system, has been given  This formal specification is given within the well-known framework of the rewriting logic

  38. Conclusions / future work

  39. Conclusions  We are approaching the use of software tools with more complex systems (e.g., interpreters of programming languages)  The combination of different tools with different expertise domain is required here

  40. Conclusions  Interoperability issues should be systematically considered when developing termination tools  Rewriting-based logics are useful to model and analyze network systems and Web sites

  41. Future work  Which are the appropriate (fragments of) logics which are useful to specify (and reason about) the dynamic behavior of Web sites?  How types , strategies , conditions , etc. can help to get a more expressive model or to improve its power from a logic point of view (e.g., recovering decidability of the theories)
