Concentration Units Salts & other solutes dissolved in water - PowerPoint PPT Presentation

Concentration Units Salts & other solutes dissolved in water must be specified with respect to their concentration Oceanographers generally agree on proper units However you will still see every possible unit under the sun being used ppm,

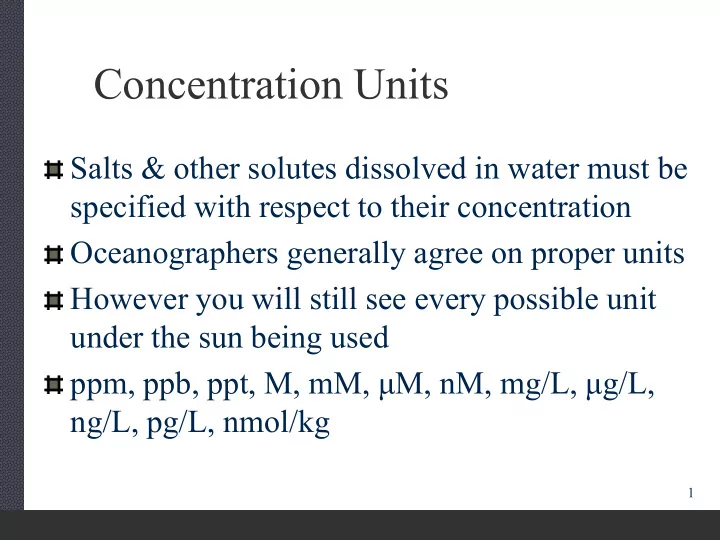

  1. Concentration Units Salts & other solutes dissolved in water must be specified with respect to their concentration Oceanographers generally agree on proper units However you will still see every possible unit under the sun being used ppm, ppb, ppt, M, mM, μ M, nM, mg/L, μ g/L, ng/L, pg/L, nmol/kg 1

  2. Important Points (see handout posted for last class) Use SI units whenever possible Chemical Oceanographers should use mol/kg with a prefix due to compressibility You must know whether the unit refers to solvent alone or solution as a whole (i.e., molarity vs. molality; ppm as mg/L or mg/kg) 2

  3. Discussing Structure Changes in H 2 O as Solutes are Added Millero Fig 4.13 Models to Explain Ion-Water Interactions p 135 3

  4. Electrostriction occurs as an ion orients or reorders water molecules causing them to be arranged tightly around the charge center Libes (1992) 4

  5. Electrostriction - occurs when adding salt to H 2 O Add 35 g of NaCl to 965 g H 2 O = 1000g total Density - NaCl 2.165 g/cm 3 ; H 2 O 0.997 g/cm 3 Volumes = 16.2 cm 3 + 967.9 cm 3 = 984.1 cm 3 Actual Volume = 977.3 cm 3 Volume me r redu duce ced 5

  6. Colligative Properties Physicochemical Properties that vary with number of species in solution not their chemical nature Vapor Pressure Lowering Boiling Point Elevation ( Δ T b ) Freezing Point Depression ( Δ T f ) Osmotic Pressure (π ) 6

  7. Water molecules attracted by hydrogen bonds Explanation of Colligative Properties No Based on Changes in hydrogen Phase Equilibria bonds Simple Phase Diagram of Water (Wiley 1999) 7

  8. Vapor Pressure Lowering Magnitude of vapor pressure (v.p.) lowering can be expressed in terms of solute mole fraction Δ P/P o = X where X = mole fraction (i.e., ratio of moles solute to total moles P o = v.p. of pure solvent Δ P = change in v.p. 8

  9. Boiling Point Elevation Boiling point (b.p.) of solution changes Δ T b = ν K b m where m = molality K b = constant for solvent 0.512 o C/m for H 2 O ν = van’t Hoff factor Ions/molecule Δ T b = change in b.p. 9

  10. Freezing Point Depression Freezing point (m.p.) of solution changes Δ T f = - ν K f m where m = molality K f = constant for solvent 1.86 = o C/m for H 2 O ν = van’t Hoff factor Δ T f = change in m.p. 10

  11. Osmotic Pressure (π ) Nollet (1748) used pig bladder membrane (Pilson, 1998) 11

  12. Osmotic Pressure (π ) From the Gas Law (PV = nRT) π V = ν R T where T = absolute temp. R = gas constant ν = van’t Hoff factor V = volume π = osmotic pressure 12

  13. Important Properties Electrostriction influences density, water structure & mobility of ions in solution It also results in pressure effects for solubility Freezing Point Depression lowers freezing point of natural waters especially seawater Vapor Pressure Lowering reduces evaporation Osmotic Pressure strongly influences diffusion across biological membranes 13

  14. Ion-Ion Interactions Many types – non-specific, bonding, contact, solvent shared, solvent separated Non-specific i.e., long range interactions and the concepts of ionic strength, activity & activity coefficient Specific interactions e.g. complexation, ion pairing (strong or weak) Millero cartoons http://fig.cox.miami.edu/~lfarmer/MSC215/MSC215.HTM 14

  15. Long Range (Non-Specific) Attraction δ – Non-specific Oriented Outward Interactions - electrostatic in nature & limit Long Range effectiveness (Non-Specific) Repulsion of the ion δ + Oriented Outward 15

  16. Non-specific Interaction Electrostatic in nature Limits effectiveness of ion in solution Use concept of activity to quantify effect (activity = effective concentration, accounts for non-ideal behavior) a i = [i] F γ F (i) where a i = activity of ion i [i] F = free ion conc. (m) γ F (i) = activity coefficient of ion i a = [i] γ In short 16

  17. Activity of Individual Ion Influenced by Other Ions Ionic Strength of solution I = 0.5 Σ Z 2 m where I = ionic strength Z = charge on ion m = molal conc. (molarity or molinity a = [i] γ can also be used) 17

  18. Activity Coefficient (γ ) Debye-Huckel Theory is starting point (Primarily for very low ionic strength) ln γ + = - A Z 2 I 0.5 original D.H. or ln γ + = - S f I 0.5 /(1 + A f a I 0.5 ) extended Where γ + is the mean ion activity coefficient S f , A & A f are constants related to temperature I is ionic strength & a is the ion size parameter in Ǻ Z is the charge on the ion 18

  19. Activity Coefficient (γ ) Guntelberg Approximation ln γ + = - A Z 2 [I 0.5 / (1 + I 0.5 )] Where γ + is the mean ion activity coefficient A is a constant Useful for I is ionic strength I > 0.1 Z is the charge on the ion 19

  20. Activity Coefficient (γ ) Davies Equation ln γ + = - A Z 2 [I 0.5 / (1 + I 0.5 ) – 0.2 I] Where γ + is the mean ion activity coefficient A is a constant (= 1.17) Useful for I is ionic strength I ~ 0.5 Z is the charge on the ion 20

  21. Activity Coefficient (γ ) Bronsted-Guggenheim ln γ + = ln γ DH + Σ B ij [j] + Σ Σ C ijk [j][k] + … j j k Where γ + is the mean ion activity coefficient γ DH is the γ from Debye -Huckel B ij is a virial coefficient for ion pairs Useful at any I C ijk is a virial coefficient for three ions 21

  22. Comparison of Davies Equation & Extended Debye-Huckel for monovalent Ions Morel & Hering 1993 22

  23. Activity Coefficient vs. Conc., Monovalent & Divalent Systems 23

  24. Activity Coefficient vs. Conc., Ideal, Monovalent & Divalent Systems (Kennedy 1990) γ 24

  25. Activity vs. Conc., Ideal, Monovalent & Divalent Systems (Kennedy 1990) 25

  26. Putting It All Together Calculate ionic strength from concentrations of all ions in solution using I = 0.5 Σ Z 2 m Use Davies Equation to calculate activity coefficients for all ions of interest (Z = 1,2,3,4) ln γ + = - A Z 2 [I 0.5 /(1 + I 0.5 ) – 0.2 I] Calculate activity of the ions of interest using their concentrations and activity coefficients a = [i] γ 26

  27. Example: pH of SW pH is defined as the negative logarithm of the hydrogen ion activity pH = -log a H+ At a typical ionic strength of seawater I = 0.7 From Davies Equation H + activity coefficient ln γ = - A Z 2 [I 0.5 /(1 + I 0.5 ) – 0.2 I] If Z = 1 & A = 1.17 then ln γ = -0.37 & γ = 0.69 27

  28. Example: pH (cont.) If a typical seawater pH is 8.2 Then H + activity is 1 x 10 -8.2 or 6.31 x 10 -9 M From a = [i]γ or a H+ = [H + ]γ H+ & calculated γ = 0.69 6.31 x 10 -9 M = [H + ] x 0.69 [H + ] = 9.14 x 10 -9 M Activity of H + is 31% lower than it’s concentration Effectiveness of H + is 31% lower due to crowding This phenomenon is greater for divalent ions 28
