Combined analysis method: from sample to texture Aline Dellicour 1,2 - PowerPoint PPT Presentation

Sep 19, 2023 •140 likes •472 views

Combined analysis method: from sample to texture Aline Dellicour 1,2 , Bndicte Vertruyen 2 , Mark Rikel 3 , Luca Lutterotti 4 , rotti 4 , Bachir Ouladdiaf 5, Daniel Chateigner 1 1 CRISMAT, University of Caen 4 University of trento 2 LCIS,

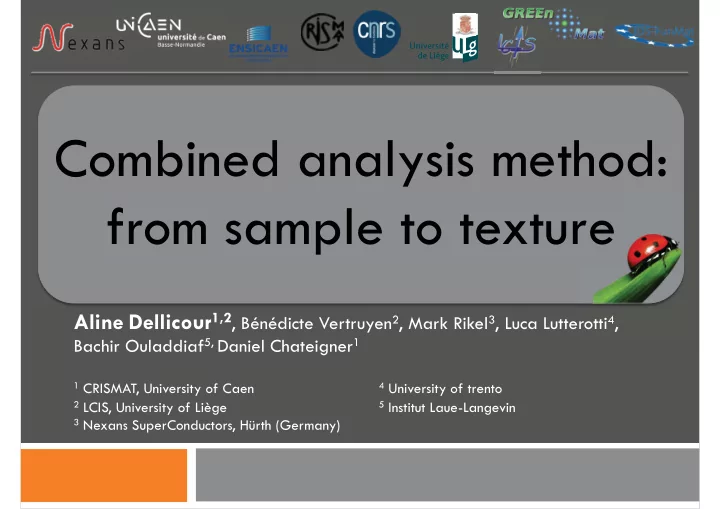

Combined analysis method: from sample to texture � Aline Dellicour 1,2 , Bénédicte Vertruyen 2 , Mark Rikel 3 , Luca Lutterotti 4 , rotti 4 , Bachir Ouladdiaf 5, Daniel Chateigner 1 1 CRISMAT, University of Caen 4 University of trento 2 LCIS, University of Liège 5 Institut Laue-Langevin 3 Nexans SuperConductors, Hürth (Germany)
High temperature superconductors T (K) Normal T c Critical temperature (Tc) Superconductor Critical current (Ic) H (Am -1 ) Critical magnetic field (Hc) 0 H c J c J (Am -2 )
Bi 2 Sr 2 Ca n-1 Cu n 2O 2n+4 phase Bi-2201 Bi-2212 Bi-2223 Formula Bi 2 Sr 2 CuO 6 Bi 2 Sr 2 CaCu 2 O 8 Bi 2 Sr 2 Ca 2 Cu 3 O 10 Discovery Michel, C. et al. Z. Maeda, H. et al. Jpn. J. Maeda, H. et al. Jpn. J. Phys. B 68, 421–423 Appl. Phys. 27, Appl. Phys. 27, (1987) L209(1988) L209(1988) Structure T c 20K 85K 110K Remarks Non stable in air
Bi 2 Sr 2 CaCu 2 O 8 phase O Sr Bi Ca Cu c b a
Bi 2 Sr 2 CaCu 2 O 8 phase O Sr Bi Ca Cu c b a
Superconducting fault current limiter I<Ic I<Ic I>Ic R≈0 R>0 R � 0
Superconducting fault current limiter I<Ic I<Ic I<Ic I>Ic R≈0 R≈0 R>0 R � 0
Superconducting fault current limiter I<Ic I<Ic I>Ic I>Ic R≈0 R>0 R>0 R � 0
Superconducting fault current limiter Autonomously Automatically I<Ic I<Ic I>Ic I<Ic R≈0 R>0 R � 0 R � 0
Bulk samples are synthesized by the melt cast process Metallic oxides SrSO 4 T �
Bulk samples are synthesized by the melt cast process Metallic oxides SrSO 4 T � Preheated
Bulk samples are synthesized by the melt cast process Metallic oxides SrSO 4 T � Preheated Annealing
High Jc values are reached Electric field ( µ V/cm) 30 J c (77K) = 1200 A/cm 2 20 10 J (A/cm 2 ) 0 0 500 1.000 1.500
Combined analysis method X-Rays (near-surface) Electrons Neutrons (microscopic) (macroscopic) Combined analysis
Combined analysis method X-Rays (near-surface) Electrons Neutrons (microscopic) (macroscopic) Combined analysis
Electron backscatter diffraction (EBSD)
Combined analysis method X-Rays (near-surface) Electrons Neutrons (microscopic) (macroscopic) Combined analysis
INEL-CRISMAT
Combined analysis method X-Rays (near-surface) Electrons Neutrons (microscopic) (macroscopic) Combined analysis
From sample to data Neutron beam 2 � Rietveld refinement with Maud
Inner region Resin ��
Center region � � Resin ��
Outer region � � Resin � ��
Porous region � � Resin � ��
Higher supercurrents flow through the center part � � Resin � ��
� � X Y Z Untextured Partially c textured b a
i X Y Z c Untextured Partially c textured c
i X Y Z c X Untextured Partially c textured c
Conclusions � Melt casting is easy to implement � Combine analysis is applicable to our samples � Two main orientations for texture Untextured Partially textured
Prospects Varying: � Sample shape � Synthesis parameters � Oxygen content
Prospects Varying: � Sample shape � Synthesis parameters � Oxygen content � Improving Jc
Thank you for your attention Contact: a.dellicour@ulg.ac.be
