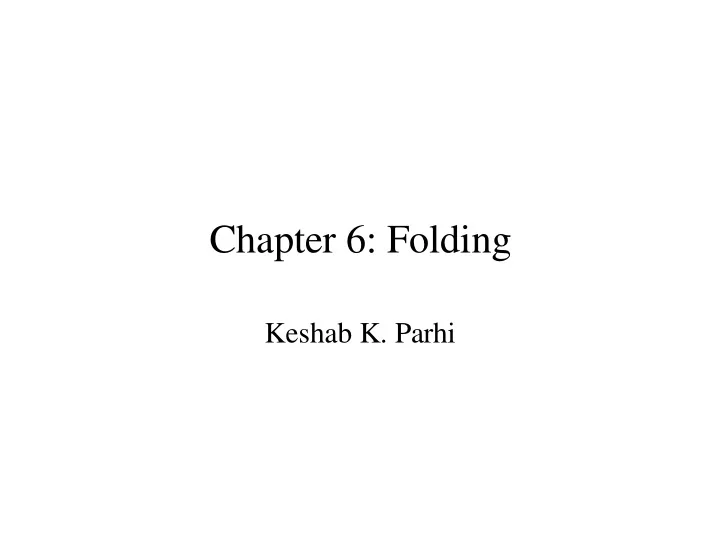

Chapter 6: Folding Keshab K. Parhi Folding is a t echnique t o - PowerPoint PPT Presentation

Chapter 6: Folding Keshab K. Parhi Folding is a t echnique t o reduce t he silicon area by t ime- mult iplexing many algorit hm operat ions int o single f unct ional unit s (such as adders and mult ipliers) Fig(a) shows a DSP program


  1. Chapter 6: Folding Keshab K. Parhi

  2. • Folding is a t echnique t o reduce t he silicon area by t ime- mult iplexing many algorit hm operat ions int o single f unct ional unit s (such as adders and mult ipliers) • Fig(a) shows a DSP program : y(n) = a(n) + b(n) + c(n) . • Fig(b) shows a f olded archit ect ure where 2 addit ions are f olded or t ime-mult iplexed t o a single pipelined adder One out put sample is produced every 2 clock cycles ⇒ input should be valid f or 2 clock cycles. • I n general, t he dat a on t he input of a f olded realizat ion is assumed t o be valid f or N cycles bef ore changing, where N is t he number of algorit hm operat ions execut ed on a single f unct ional unit in hardware. 2

  3. Folding Transf ormat ion : •N l + u and N l + v are respect ively t he t ime unit s at which l-t h it erat ion of t he nodes U and V are scheduled. • u and v are called f olding orders (t ime part it ion at which t he node is scheduled t o be execut ed) and sat isf y 0 ≤ u,v ≤ N-1. • N is t he f olding f act or i.e., t he number of operat ions f olded t o a single f unct ional unit . • H u and H v are f unct ional unit s t hat execut e u and v respect ively. • H u is pipelined by P u st ages and it s out put is available at N l + u + P u . • Edge U → V has w(e) delays ⇒ t he l -t h it erat ion of U is used by ( l + w(e)) t h it erat ion of node V, which is execut ed at N( l + w(e)) + v. So, t he result should be st ored f or : D F (U → V) = [N( l + w(e)) + v] – [N l + P u + u] ⇒ D F (U → V) = Nw(e) - P u + v – u ( independent of l ) Chap. 6 3

  4. • Folding Set : An ordered set of N operat ions execut ed by t he same f unct ional unit . The operat ions are ordered f rom 0 t o N- 1. Some of t he operat ions may be null. For example, Folding set S 1 ={A 1 ,0,A 2 } is f or f olding order N=3. A 1 has a f olding order of 0 and A 2 of 2 and are respect ively denot ed by (S 1 |0) and (S 2 | 2). • Example: Folding a ret imed biquad f ilt er by N = 4. Addit ion t ime = 1u.t ., Mult iplicat ion t ime = 2u.t ., 1 st age pipelined adder and 2 st age pipelined mult iplier(i.e., P A =1 and P M =2) The f olding set s are S 1 = {4, 2, 3, 1} and S 2 = {5, 8, 6, 7} Chap. 6 4

  5. Folding equat ions f or each of t he 11 edges are as f ollows: D F (1 → 2) = 4(1) – 1 + 1 – 3 = 1 D F (1 → 5) = 4(1) – 1 + 0 – 3 = 0 D F (1 → 6) = 4(1) – 1 + 2 – 3 = 2 D F (1 → 7) = 4(1) – 1 + 3 – 3 = 3 D F (1 → 8) = 4(2) – 1 + 1 – 3 = 5 D F (3 → 1) = 4(0) – 1 + 3 – 2 = 0 D F (4 → 2) = 4(0) – 1 + 1 – 0 = 0 D F (5 → 3) = 4(0) – 2 + 2 – 0 = 0 D F (6 → 4) = 4(1) – 2 + 0 – 2 = 0 D F (7 → 3) = 4(1) – 2 + 2 – 3 = 1 D F (8 → 4) = 4(1) – 2 + 0 – 1 = 1 Chap. 6 5

  6. • Ret iming f or Folding : – For a f olded syst em t o be realizable D F (U � V) ≥ 0 f or all edges. – I f D’ F (U � V) is t he f olded delays in t he edge U � V f or t he ret imed graph t hen D’ F (U � V) ≥ 0. So, U + v – u ≥ 0 … Nw r (e) – P where w r (e) = w(e) + r(V) - r(U) U + v – u ≥ 0 ⇒ N(w(e) + r(V) – r (U) ) - P ⇒ r(U) – r(V) ≤ D F (U � V) / N ⇒ r(U) – r(V) ≤  D F (U � V) / N  (since ret iming values are int egers) Chap. 6 6

  7. • Regist er Minimizat ion Technique : Lif et ime analysis is used f or regist er minimizat ion t echniques in a DSP hardware. • A ‘dat a sample or variable’ is live f rom t he t ime it is produced t hrough t he t ime it is consumed. Af t er t hat it is dead. • Linear lif et ime chart : Represent s t he lif et ime of t he variables in a linear f ashion. • Example : Not e : Linear lif et ime chart uses t he convent ion t hat t he variable is not live during t he clock cycle when it is produced but live during t he clock cycle when it is consumed. 7

  8. • Due t o t he periodic nat ure of DSP programs t he lif et ime chart can be drawn f or only one it erat ion t o give an indicat ion of t he # of regist ers t hat are needed. This is done as f ollows : � Let N be t he it erat ion period � Let t he # of live variables at t ime part it ions n ≥ N be t he # of live variables due t o 0-t h it erat ion at cycles n-kN f or k ≥ 0. I n t he example, # of live variables at cycle 7 ≥ N (=6) is t he sum of t he # of live variables due t o t he 0-t h it erat ion at cycles 7 and (7 - 1 × 6) = 1, which is 2 + 1 = 3. • Mat rix t ranspose example : i | f | c | h | e | b | g | d | a i | h | g | f | e | d | c | b | a Mat r ix Tr ansposer Chap. 6 8

  9. Sample T in T zlout T dif f T out Lif e 0 � 4 a 0 0 0 4 1 � 7 b 1 3 2 7 2 � 10 c 2 6 4 10 3 � 5 d 3 1 - 2 5 4 � 8 e 4 4 0 8 5 � 11 f 5 7 2 11 6 � 6 g 6 2 - 4 6 7 � 9 h 7 5 - 2 9 8 � 12 i 8 8 0 12 � To make t he syst em causal a lat ency of 4 is added t o t he dif f erence so t hat T out is t he act ual out put t ime. Chap. 6

  10. • Circular lif et ime chart : Usef ul t o represent t he periodic nat ure of t he DSP programs. • I n a circular lif et ime chart of periodicit y N, t he point marked i (0 ≤ i ≤ N - 1) represent s t he t ime part it ion i and all t ime inst ances {(N l + i)} where l is any non-negat ive int eger. • For example : I f N = 8, t hen t ime part it ion i = 3 represent s t ime inst ances {3, 11, 19, … }. • Not e : Variable produced during t ime unit j and consumed during t ime unit k is shown t o be alive f rom ‘j + 1’ t o ‘k’. • The numbers in t he bracket in t he adj acent f igure correspond t o t he # of live variables at each t ime part it ion. Chap. 6 10

  11. Forward Backward Regist er Allocat ion Technique : Not e : Hashing is done t o avoid conf lict during backward allocat ion. Chap. 6 11

  12. St eps f or Forward-Backward Regist er allocat ion : • Det ermine t he minimum number of regist ers using lif et ime analysis. • I nput each variable at t he t ime st ep corresponding t o t he beginning of it s lif et ime. I f mult iple variables are input in a given cycle, t hese are allocat ed t o mult iple regist ers wit h pref erence given t o t he variable wit h t he longest lif et ime. • Each variable is allocat ed in a f orward manner unt il it is dead or it reaches t he last regist er. I n f orward allocat ion, if t he regist er i holds t he variable in t he current cycle, t hen regist er i + 1 holds t he same variable in t he next cycle. I f (i + 1)-t h regist er is not f ree t hen use t he f irst available f orward regist er. • Being periodic t he allocat ion repeat s in each it erat ion. So hash out t he regist er R j f or t he cycle l + N if it holds a variable during cycle l . • For variables t hat reach t he last regist er and are st ill alive, t hey are allocat ed in a backward manner on a f irst come f irst serve basis. • Repeat st eps 4 and 5 unt il t he allocat ion is complet e. Chap. 6 12

  13. • Example : Forward backward Regist er Allocat ion Chap. 6 13

  14. • Folded archit ect ure f or mat rix t ranposer : Chap. 6 14

  15. • Regist er minimizat ion in f olded archit ect ures : � P erf orm ret iming f or f olding � Writ e t he f olding equat ions � Use t he f olding equat ions t o const ruct a lif et ime t able � Draw t he lif et ime chart and det ermine t he required number of regist ers � P erf orm f orward-backward regist er allocat ion � Draw t he f olded archit ect ure t hat uses t he minimum number of regist ers. T in � T out Node 4 � 9 •Example : Biquad Filt er 1 � St eps 1 & 2 have already been done. 2 -- 3 � 3 3 � St ep 3:The lif et ime t able is t hen 1 � 1 4 const ruct ed. The 2 nd row is empt y as 2 � 2 5 D F (2 � U) is not present . 4 � 4 6 Not e : As ret iming f or f olding ensures 5 � 6 7 causalit y, we need not add any lat ency. 3 � 4 15 8

  16. � St ep 4 : Lif et ime chart is const ruct ed and regist ers det ermined. � St ep 5 : Forward-backward regist er allocat ion Chap. 6 16

  17. � Folded archit ect ure is drawn wit h minimum # of regist ers. Chap. 6 17
