Chapter 2 Section 6 MA1032 Data, Functions & Graphs Sidney - PowerPoint PPT Presentation

Chapter 2 Section 6 MA1032 Data, Functions & Graphs Sidney Butler Michigan Technological University October 2, 2006 S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 1 / 8 A Familiar Quadratic S Butler (Michigan Tech)

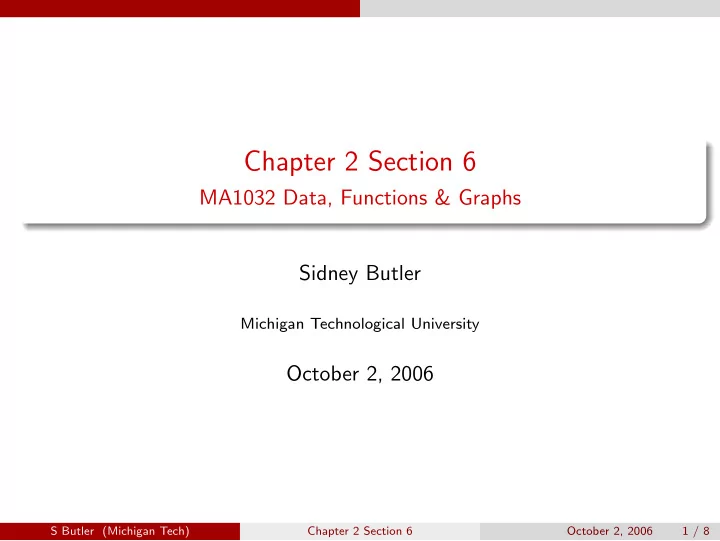

  1. Chapter 2 Section 6 MA1032 Data, Functions & Graphs Sidney Butler Michigan Technological University October 2, 2006 S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 1 / 8

  2. A Familiar Quadratic S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 2 / 8

  3. General Form y = f ( x ) = ax 2 + bx + c S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 3 / 8

  4. An Interesting Characteristic Definition The zeros of a quadratic function are the input values which make the output zero. S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 4 / 8

  5. Examples Find the zeros of x = f ( y ) = 3 y 2 + 5 y − 2 . Find the zeros of Q ( x ) = 5 x − x 2 + 3 . S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 5 / 8

  6. Examples in Physics Consider a ball which is thrown upward from a bridge and is allowed to fall past the bridge all the way to the ground. For example, let h ( t ) = − 16 t 2 + 48 t + 120 denote the height of the ball in feet above the ground t seconds after being released. 1 How high is the ball when it is released? How high is the bridge? 2 When does the ball hit the ground? There are two answers. Are they both valid? 3 Sketch a graph of the function h , showing the domain and range. Find a window on your graphing calculator that shows the height of the ball from the time it is thrown until it hits the ground. S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 6 / 8

  7. An important Feature Consider an object falling under the influence of gravity. Let d ( t ) = 16 t 2 be the distance in feet that an object has fallen after t seconds. Compute the average speed of the object over each of the time intervals 0 ≤ t ≤ 1, 1 ≤ t ≤ 2, 2 ≤ t ≤ 3, and 3 ≤ t ≤ 4. S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 7 / 8

  8. Summary 1 General formula for quadratic functions 2 Zeros 3 Applications 4 Concavity S Butler (Michigan Tech) Chapter 2 Section 6 October 2, 2006 8 / 8
