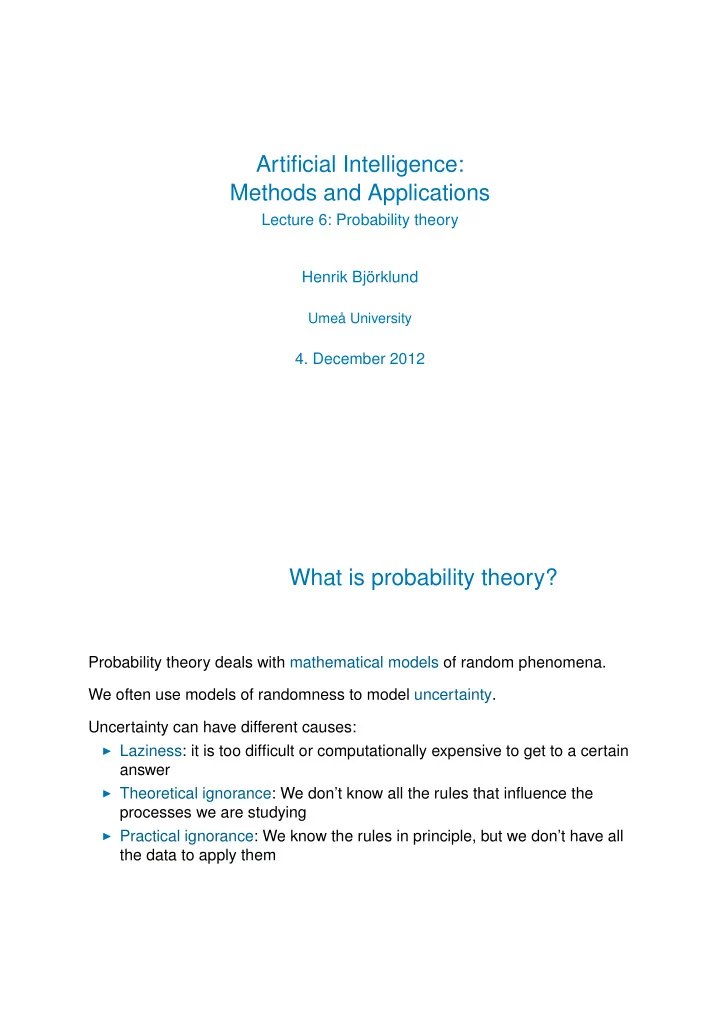

Artificial Intelligence: Methods and Applications Lecture 6: Probability theory Henrik Björklund Umeå University 4. December 2012 What is probability theory? Probability theory deals with mathematical models of random phenomena. We often use models of randomness to model uncertainty. Uncertainty can have different causes: ◮ Laziness: it is too difficult or computationally expensive to get to a certain answer ◮ Theoretical ignorance: We don’t know all the rules that influence the processes we are studying ◮ Practical ignorance: We know the rules in principle, but we don’t have all the data to apply them

Random experiments Mathematical models of randomness are based on the concept of random experiments. Such experiments should have two important properties: 1. The experiment must be repeatable 2. Future outcomes cannot be exactly predicted based on previous outcomes, even if we can controll all aspects of the experiment Examples: ◮ Coin tossing ◮ Quality control ◮ Genetics Deterministic vs. random models Deterministic models often give a macroscopic view of random phenomena. They describe an average behavior but ignore local random variations. Examples: ◮ Water molecules in a river ◮ Gas molecules in a heated container Lesson to be learned: Model on the right level of detail!

Key observation Consider a random experiment for which outcome A sometimes occurs and sometimes doesn’t occur. ◮ Repeat the experiment a large number of times and note, for each repetition, whether A occurs or not ◮ Let f n ( A ) be the number of times A occured in the first n experiments ◮ Let r n ( A ) = f n ( A ) be the relative frequency of A in the first n experiments n Key observation: As n → ∞ , the relative frequency r n ( A ) converges to a real number . Kolmogorov The concequences of the key obeservation were axiomatized by the russian mathematician Andrey Kolmogorov (1903-1987) in his book Grundbegriffe der Wahrscheinlichkeitsberechnung (1933).

Intuitions about probability i Since 0 ≤ f n ( A ) ≤ n we have 0 ≤ r n ( A ) ≤ 1. Thus the probability of A should be in [ 0 , 1 ] . ii f n ( ∅ ) = 0 and f n ( Everything ) = n . Thus the probability of ∅ should be 0 and the probability of Everything should be 1. iii Let B be Everything except A . Then f n ( A ) + f n ( B ) = n and r n ( A ) + r n ( B ) = 1. Thus the probability of A plus the probability of B should be 1. iv Let A ⊆ B . Then r n ( A ) ≤ r n ( B ) and thus the probability of A should be no bigger than that of B . v Let A ∩ B = ∅ and C = A ∪ B . Then r n ( C ) = r n ( A ) + r n ( B ) . Thus the probability of C should be the probability of A plus the probability of B . vi Let C = A ∪ B . Then f n ( C ) ≤ f n ( A ) + f n ( B ) and r n ( C ) ≤ r n ( A ) + r n ( B ) . Thus the probability of C should be at most the sum of the probabilities of A and B . vii Let C = A ∪ B and D = A ∩ B . Then f n ( C ) = f n ( A ) + f n ( B ) − f n ( D ) and thus the probability of C should be the probability of A plus the probability of B minus the probability of D . The probability space Definition A probability space is a tuple ( Ω , F , P ) where ◮ Ω is the sample space or set of all elementary events ◮ F is the set of events (for our purposes, we can consider F = P ( Ω ) ) ◮ P : F → R is the probability function Note: We often use logical formulas to describe events: Sunny ∧ ¬ Freezing

Kolmogorov’s axioms Kolmogorov formulated three axioms that the probability function P must satisfy. The rest of probability theory can be built from these axioms. A1 For any A ∈ F , there is a nonnegative real number P ( A ) A2 P ( Ω ) = 1 A3 Let { A n | 1 ≤ n } be a collection of pairwise disjoint events. Let A = � ∞ n = 1 A n be their union. Then P ( A ) = Σ ∞ n = 1 P ( A n ) Intuition i : ∀ A : P ( A ) ∈ [ 0 , 1 ] P ( A ) ≥ 0 A1 Let B = Ω \ A P ( B ) ≥ 0 A1 P ( A ∪ B ) = P ( A ) + P ( B ) A3 P ( A ∪ B ) = P ( Ω ) = 1 A2 P ( A ) ≤ 1

Intuition ii : P ( ∅ ) = 0 and P ( Ω ) = 1 P ( Ω ) = 1 A2 P ( ∅ ∪ Ω ) = P ( ∅ ) + P ( Ω ) A3 0 ≤ P ( ∅ ∪ Ω ) ≤ 1 i P ( ∅ ) = 0 Let C = A ∪ B . Then Intuition iv : P ( C ) ≤ P ( A ) + P ( B ) . Let A ′ = A \ B , B ′ = B \ A , D = A ∩ B 0 ≤ P ( A ′ ) , P ( B ′ ) , P ( D ) ≤ 1 i P ( A ) = P ( A ′ ∪ D ) = P ( A ′ ) + P ( D ) A3 P ( B ) = P ( B ′ ∪ D ) = P ( B ′ ) + P ( D ) A3 P ( A ) + P ( B ) = P ( A ′ ) + P ( B ′ ) + 2 · P ( D ) P ( C ) = P ( A ′ ∪ B ′ ∪ D ) = P ( A ′ ) + P ( B ′ ) + P ( D ) A3 P ( C ) ≤ P ( A ) + P ( B )

Flipping coins Example Consider the random experiment of flipping a coin two times, one after the other. We have Ω = { HH , HT , TH , TT } and P ( { HH } ) = P ( { HT } ) = P ( { TH } ) = P ( { TT } ) = 1 / 4 . ◮ Let H 1 = { HH , HT } = the first flip results in a head ◮ Let H 2 = { HH , TH } = the second flip results in a head We have ◮ P ( H 1 ) = P ( { HH } ) + P ( { HT } ) = 1 / 2 ◮ P ( H 2 ) = P ( { HH } ) + P ( { TH } ) = 1 / 2 ◮ P ( H 1 ∩ H 2 ) = P ( { HH } ) = 1 / 4 = P ( H 1 ) · P ( H 2 ) Drawing from an urn Example Consider the random experiment of drawing two balls, one after the other, from an urn that contains a red, a blue, and a green ball. We have Ω = { RB , RG , BR , BG , GR , GB } and P ( { RB } ) = P ( { RG } ) = P ( { BR } ) = P ( { BG } ) = P ( { GR } ) = P ( { GB } ) = 1 / 6 . ◮ Let R 1 = { RB , RG } = the first ball is red ◮ Let B 2 = { RB , GB } = the second ball is blue We have ◮ P ( R 1 ) = P ( { RB } ) + P ( { RG } ) = 1 / 3 ◮ P ( B 2 ) = P ( { RB } ) + P ( { GB } ) = 1 / 3 ◮ P ( R 1 ∩ B 2 ) = P ( { RB } ) = 1 / 6 � = P ( R 1 ) · P ( B 2 ) = 1 / 9

Independent events The difference between the two examples is that in the first one, the two events are independent while in the second they are not. Definition Events A and B are independent if P ( A ∩ B ) = P ( A ) · P ( B ) . Conditional probability Definition Let A and B be events, with P ( B ) > 0. The conditional probability P ( A | B ) of A given B is given by P ( A | B ) = P ( A ∩ B ) . P ( B ) Notice: If B = Ω , then P ( A | B ) = P ( A ∩ Ω ) = P ( A ) P ( Ω ) = P ( A ) = P ( A ) . P ( Ω ) 1 Notice: If A and B are independent, then P ( A | B ) = P ( A ∩ B ) = P ( A ) · P ( B ) = P ( A ) . P ( B ) P ( B )

Flipping coins Example What is the probability of the second throw resulting in a head given that the first one results in a head? P ( H 2 | H 1 ) = P ( H 2 ∩ H 1 ) P ( { HH , HT } ) = 1 / 4 P ( { HH } ) = 1 / 2 = 1 / 2 = P ( H 2 ) P ( H 1 ) Drawing from an urn Example What is the probability of the second ball being blue given that the first one is red? P ( B 2 | R 1 ) = P ( B 2 ∩ R 1 ) P ( { RB , RG } ) = 1 / 6 P ( { RB } ) = 1 / 3 = 1 / 2 � = P ( B 2 ) = 1 / 3 P ( R 1 )

The product rule If we rewrite the definition of conditional probability, we get the product rule. Conditional probability: P ( A | B ) = P ( A ∩ B ) P ( B ) Product rule: P ( A ∩ B ) = P ( A | B ) · P ( B ) Bayes’ rule The product rule can be written in two different ways: P ( A ∩ B ) = P ( A | B ) · P ( B ) P ( A ∩ B ) = P ( B | A ) · P ( A ) Equating the two right-hand sides we get P ( B | A ) · P ( A ) = P ( A | B ) · P ( B ) . By dividing with P ( A ) we get Bayes’ rule: P ( B | A ) = P ( A | B ) · P ( B ) P ( A )

Thomas Bayes Thomas Bayes (1701-1761) was an English mathematician and presbyterian minister. His most important results were published after his death. Example Consider the random experiment of throwing three dice. We have 6 3 = 216 elementary events: Ω = { 1 , . . . , 6 } × { 1 , . . . , 6 } × { 1 , . . . , 6 } One benefit of this sample space is that the elementary events all have the same probability: P ( { ( 1 , 3 , 5 ) } ) = P ( { ( 2 , 2 , 6 ) } ) = 1 / 216 We may, however, be more interested in the number of eyes than the precise result of each die. There are 16 such outcomes (3 being the lowest and 18 being the highest). These outcompes are not, however, equally probable. ◮ The probability of having 3 eyes showing is P ( { ( 1 , 1 , 1 ) } ) = 1 / 216 ◮ The probability of having 4 eyes showing is P ( { ( 1 , 1 , 2 ) , ( 1 , 2 , 1 ) , ( 2 , 1 , 1 ) } ) = 3 / 216 = 1 / 72

Example For the number of eyes, we introduce the random variable Eyes . Eyes can take values from the domain { 3 , . . . , 18 } . We can now talk about the probability of Eyes taking on certain values: ◮ P ( Eyes = 3 ) = P ( { ( 1 , 1 , 1 ) } ) = 1 / 216 ◮ P ( Eyes = 4 ) = P ( { ( 1 , 1 , 2 ) , ( 1 , 2 , 1 ) , ( 2 , 1 , 1 ) } ) = 1 / 72 ◮ P ( Eyes = 5 ) = 1 / 36 Example Consider our urn example again. ◮ Let B 1 be a random variable that takes values from { red , blue , green } and represents the color of the first ball ◮ Let B 2 represent the color of the second ball P ( B 2 = blue | B 1 = red ) = P ( { RB , GB }|{ RB | RG } ) = P ( { RB , RG } ) = 1 / 6 P ( { RB } ) = 1 / 3 = 1 / 2

Probability distributions For random variables with finite domains, the probability distribution simply defines the probability of the variable taking on each of the different values: P ( Eyes ) = < 1 / 216 , 1 / 72 , 1 / 36 , . . . , 1 / 36 , 1 / 72 , 1 / 216 > We can also talk about the probability distribution of conditional probabilities:   0 1 / 2 1 / 2 P ( B 2 | B 1 ) = 1 / 2 0 1 / 2   1 / 2 1 / 2 0 Continuous distributions For random variables with continuous domains, we cannot simply list the probabilities of all outcomes. Instead, we use probability density functions: P ( x ) = lim dx → 0 P ( x ≤ X ≤ x + dx ) / dx
