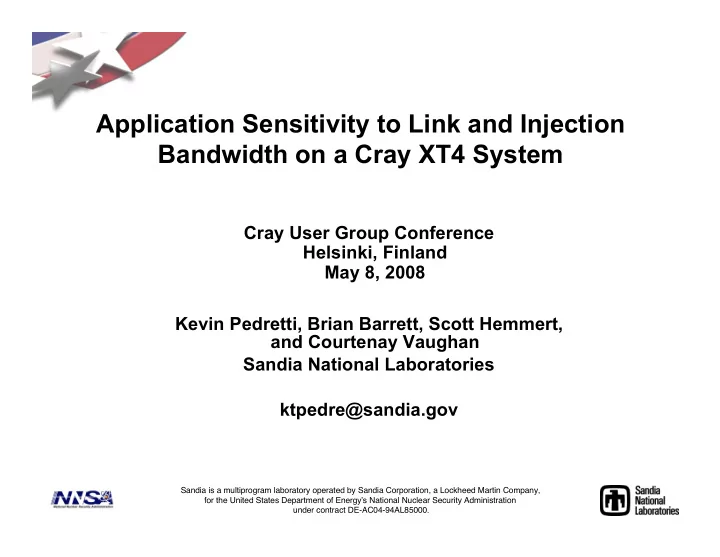

Application Sensitivity to Link and Injection Bandwidth on a Cray XT4 System Cray User Group Conference Helsinki, Finland May 8, 2008 Kevin Pedretti, Brian Barrett, Scott Hemmert, and Courtenay Vaughan Sandia National Laboratories


slide-1
SLIDE 1

Cray User Group Conference Helsinki, Finland May 8, 2008 Kevin Pedretti, Brian Barrett, Scott Hemmert, and Courtenay Vaughan Sandia National Laboratories ktpedre@sandia.gov

Sandia is a multiprogram laboratory operated by Sandia Corporation, a Lockheed Martin Company, for the United States Department of Energyʼs National Nuclear Security Administration under contract DE-AC04-94AL85000.

Application Sensitivity to Link and Injection Bandwidth on a Cray XT4 System

slide-2
SLIDE 2

2

Outline

  • Introduction
  • Link Bandwidth Detuning
  • Injection Bandwidth Detuning
  • Application Testing on Red Storm
  • Future Work and Conclusions
slide-3
SLIDE 3

3

Challenges: Exponentially Increasing Parallelism, Decreasing Balance Due to Power Constraints

900 TF 75K cores 12 GF/core

89% per year 3 3 % p e r y e a r

2019 1 EF 1.7M cores (green) 588 GF/core

  • r

28M cores (blue) 35 GF/core

72% per year

See Key for Units

slide-4
SLIDE 4

4

Motivation

  • Many challenges ahead on path to Exa-FLOPS

– Institute of Advanced Architecture (IAA) starting up – Need tools to evaluate machine balance trade-offs

  • Hmm… wouldn’t it be great if we could vary link

bandwidth, injection bandwidth, latency, and message rate independently from one another, on a real system like Red Storm?

– Perform larger and longer experiments than possible with simulation – Validate application simulations and models – Guide future decisions

slide-5
SLIDE 5

5

Approaches

  • Application modeling

– Develop mathematical models describing applications – Sandia: http://www.sandia.gov/PMAT/

  • Simulators

– Model hardware with software, FPGA, etc. – Speed generally decreases with fidelity – Sandia: SST – Structural Simulation Toolkit

  • Processor, memory, and network models (inc. SeaStar)
  • Execution driven simulators

– Run application on real system, virtual time tracked by centralized network scheduler/simulator (possibly SST) – Sandia: Seshat

  • Empirical experiments

– This talk – Related to MPI detuning work on ASCI Red (Ron Brightwell)

slide-6
SLIDE 6

6

Outline

  • Introduction
  • Link Bandwidth Detuning
  • Injection Bandwidth Detuning
  • Application Testing on Red Storm
  • Future Work and Conclusions
slide-7
SLIDE 7

7

From the XT4 Brochure…

What is this “degraded mode” and how is it enabled?

slide-8
SLIDE 8

8

Degraded Link Mode

  • Network links consist of many parallel wires
  • What if one of the wires/drivers goes bad?

Options:

– Fix or disable link and reboot (answer today) – Reroute on-the-fly, avoiding bad link – Disable faulty wire(s), distribute traffic over remaining wires => degraded mode

  • Degraded mode can be enabled on a per link-type

basis via the rm.ini file (/opt/cray/etc/rm.ini)

slide-9
SLIDE 9

9

Proof of Concept on XT4 Development Cage

2 4 6 8 w i d t h w i d t h w i d t h d w i d t h

Point-to-point bandwidth is clearly throttled by host injection rate. No difference between ¾ and Full link bandwidth configurations. Full link bandwidth is

  • approx. 773 MB/s * 4

= 3092 MB/s in each direction.

slide-10
SLIDE 10

10

Latency Remains Unchanged

1 2 w i d t h w i d t h w i d t h u d w i d t h

slide-11
SLIDE 11

11

16-node MPI Alltoall

5 5 w i d t h w i d t h w i d t h d w i d t h

Difference <= 1% compared to full link bandwidth for message sizes: ¼ BW: <= 2 KB ½ BW: <= 4 KB ¾ BW: <= 8 KB At 4 MB msg size, compared to full link bandwidth: ¼ BW: 3.42x worse ½ BW: 1.63x worse ¾ BW: 1.22x worse

slide-12
SLIDE 12

12

Outline

  • Introduction
  • Link Bandwidth Detuning
  • Injection Bandwidth Detuning
  • Application Testing on Red Storm
  • Future Work and Conclusions
slide-13
SLIDE 13

13

HyperTransport Detuning

  • HyperTransport link between

Opteron and SeaStar setup at boot by Coldstart on Cray XT, BIOS on standard PCs

  • Anyone may query HT widths

and frequencies supported by SeaStar via the PCI config space:

– 8 or 16 bits wide – 200, 400, or 800 MHz

  • HT link config currently hard-coded in Coldstart
  • Ran into HT watchdog timeouts with 200-MHz, 8-bit

config (400 MB/s), easy fix via xtmemio

slide-14
SLIDE 14

14

HyperTransport Link Detuning: Effect on Bandwidth

5 5 t i t i t i t

slide-15
SLIDE 15

15

HyperTransport Link Detuning: Effect on Latency

t i t i t i t

slide-16
SLIDE 16

16

Outline

  • Introduction
  • Link Bandwidth Detuning
  • Injection Bandwidth Detuning
  • Application Testing on Red Storm
  • Future Work and Conclusions
slide-17
SLIDE 17

17

Single Cabinet Testing, 80-nodes

  • Used to build confidence before full Red Storm testing
  • Applications tested:

– CTH

  • Shock physics
  • Weak scaling, non-AMR

– HPCCG

  • Sparse conjugate gradient solver mini-application
  • Strong and weak scaling

– LAMMPS

  • Molecular Dynamics
  • Strong and weak scaling

– SAGE

  • Hydro-dynamics
  • Strong scaling
slide-18
SLIDE 18

18

Only Application with Significant Difference was CTH

SN mode VN mode

slide-19
SLIDE 19

19

Red Storm Jumbo Testing in Degraded Mode

  • Somehow convinced management that Red Storm would

not be harmed (Thanks! ) – Successful cabinet testing – Simple configuration file change (rm.ini) + reboot

  • Testing performed April 22-24, 2008

– First three days used for Quad-Core Catamount testing and comparison with CNL (Courtenay Vaughan’s talk on Wednesday) – One 8-hour window for degraded link bandwidth testing – Tested CTH and Partisn codes

  • Caveats

– Non-identical node layouts (MOAB vs. Interactive) – Only enough time for one trial at each data point

slide-20
SLIDE 20

20

At 8192 nodes, ¼ bandwidth config is 10.3% worse than full bandwidth. Standard Partisn test problem setup to stress latency, ~50 MB per process.

2 4 6

  • w

i d t h d w i d t h

slide-21
SLIDE 21

21

At 8192 nodes, CNL (2.0.44) is 49% worse than Catamount on this problem. Doesn’t appear to be a bandwidth issue.

5 5 2 5 5 7 5 2 5 5

  • w

i d t h d w i d t h

slide-22
SLIDE 22

22

Accelerated Portals (AP) has ~30% lower latency than Generic Portals (GP), but only improves Partisn performance 1-8%.

5 5 2 5 5 7 5 2 5 5

  • d

th d th l s (A P ) y a xi s)

slide-23
SLIDE 23

23

At 8192 nodes, ¼ bandwidth config is 32.6% worse than full bandwidth. Many ~2.5 MB nearest-neighbor messages for this problem.

5 5

  • w

i d t h d w i d t h

slide-24
SLIDE 24

24

5 5 [ l

At 8192 nodes, ¼ bandwidth config is 13% worse than full bandwidth for SN mode, 21% for VN mode. Many ~2 MB nearest-neighbor messages for this problem.

VN 21% SN 13%

slide-25
SLIDE 25

25 5 5 [ ce ss ce ss ke t ke t

Unexplained performance boost in degraded mode for <= 4 nodes (one board) in VN-mode. SN-mode behaves as expected.

slide-26
SLIDE 26

26 5 5

  • More jagged Catamount curve thought to be caused by MOAB, which

preferentially allocates 2 GB nodes on Red Storm. CNL tested using interactive mode aprun.

slide-27
SLIDE 27

27

Future Work

  • Independent control of message latency

– Leverage earlier work on Portals event timestamps – MPI library modifications – Null-entries at head of match list

  • CPU frequency and memory detuning
  • Application testing using checkpoints from

production runs

– Real problems – Run a few timesteps rather than entire problem

slide-28
SLIDE 28

28

Conclusions

  • It is possible to independently control link

bandwidth and injection bandwidth on Cray XT4 systems

  • Application testing on full Red Storm system

booted into degraded ¼ link bandwidth mode was successful

– Partisn: 10.3% worse at 8192 nodes – CTH: 13 - 36.2% worse 8192 nodes

  • Useful platform for large-scale machine balance

experiments

slide-29
SLIDE 29

29

Acknowledgements

  • Courtenay Vaughan – Red Storm testing
  • Kurt Ferreira – single cabinet testing
  • Sue Kelly and Bob Ballance – approving and

allocating Red Storm system time

  • Cray – consultation
