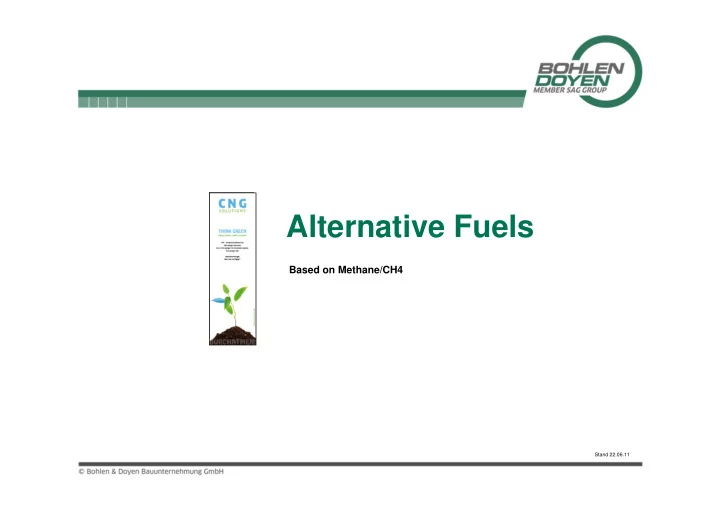

Alternative Fuels Based on Methane/CH4 Stand 22.06.11

Fueling Station Technology CH4 - Fuel overview CNG – compressed natural gas LNG – liquified natural gas Regenerative approach biomethane Regenerative approach synthetic methane Hydrogen blends `hythane` - 30%/70% Reduced CO2-, particular matter, NOx- emissions, other emissons Highest octane number 130-140 Hybrid-solutions Low accoustic emissions Bildquelle: Hersteller

Fueling Station Technology Outlook CH4 technical – well to wheel - emissions Quelle: dena

Fueling Station Technology

Fueling Station Technology CH4 as fuel – Activities of Bohlen & Doyen 2001 Start CNG-activities 2002 EWE 2004 Erdgasmobil Eon Ruhrgas 2006 Deutsche BP/ARAL 2007 Austria, Poland, Switzerland 2008 Own dispenser 2009 Netherlands, Asia 2010 Czech R., Belgium, Sweden 2010 Start LNG Our Services Turnkey solutions CNG / LNG More than 400 projects all over Europe Services and maintenance 24/7

Fueling Station Technology - CNG PID 1. Gas inlet 2. compression L&W 3. high-pressure drying molecular sieve 4. Storage 250bar 285bar 5. dispenser 200bar 15 ° C

Fueling Station Technology - CNG Compressor L&W • LW 720 VD 4, 37 kW Das Bild kann zurzeit nicht angezeigt werden. 45 - 116 m3n/h at 1,5 – 4,0 bar ü • LW 720 VD 8, 30 kW 34 - 95 m3n/h at 3,0 – 8,0 bar ü • LW 720 VD 16, 37 kW 63 - 140 m3n/h at 6,0 – 16,0 bar ü • LW 720 VD 16 WC, 55 kW 92 - 204 m3n/h at 6,0 – 16,0 bar ü • LW 720 VD 84, 30 kW 70 bis 140 m3n/h at 40 – 75 bar • LW 1300 EE 78 - 120 m3n/h at 0,02 – 1,0 bar ü • LW 1300 VD 4, 37 kW, 70 - 135 m3n/h at 1,5 – 4,0 bar ü • LW 1300 VD 4 W, 75 kW 190 - 240 m3n/h at 2,5 – 4,0 bar ü • LW 1300 VD 8, 37 kW 55 - 125 m3n/h at 3,0 – 8,0 bar ü • LW 1300 VD 4 WC, 75 kW 93 - 300 m3n/h at 3,0 – 4,0 bar ü • LW 1300 VD 8 WC, 55 kW 123 - 308 m3n/h at 3,0 – 8,0 bar ü • LW 1300 VD 16 WC, 75 kW 160 - 350 m3n/h at 6,0 – 16,0 bar ü …compressors on request; LW 3000 mid 2012 with 800-2200 m3n/h, inlet pressure up to 84bar without pressure regulation

Fueling Station Technology - CNG Compressor Storage Unit

Fueling Station Technology – Fuel Dispenser CNG Fuel Dispenser CNG Consumer-oriented design and stability Nozzle identification Internal hose system Integrated system control Service friendly and easy to maintain Coriolis measuring method C-pillars Types: BD CNG 11 / 1 measuring element - 1 nozzle BD CNG 12 / 1 measuring element - 2 nozzles BD CNG 22 / 2 measuring elements - 2 nozzles

Fueling Station Technology - CNG Compressor Storage Unit A1

Fueling Station Technology - CNG Compressor Storage Unit B1

Fueling Station Technology - CNG Compressor Storage Unit B3

Fueling Station Technology - CNG Compressor Storage Unit C2

Fueling Station Technology - CNG Compressor Storage Unit D1 including Odorisation

Fueling Station Technology - CNG Control centre service On-call duty 365 days a year, 24 h a day Numerous supporting points of the BoDo/SAG group across Germany Telematics systems Materials management Fault registration, hotline technical support Monitoring GPS-Navigation and fleet management

Fueling Station Technology - CNG Certificates Bohlen & Doyen Bauunternehmung GmbH is a well-known and reliable partner of the energy industry, the oil industry as well as the building sector and meets the high quality requirements of its customers.

Fueling Station Technology - CNG Your advantages with Bohlen & Doyen: � Systems in line with the market � Cost reduction / cost efficiency � Search for suitable locations � Turn-key / system solutions � Innovative capacity / new developments � Bundled know-how � Accreditations / certificates � Service 365/7/24
