Accelerating The Cloud with Heterogeneous Computing Sahil Suneja, - PowerPoint PPT Presentation

Accelerating The Cloud with Heterogeneous Computing Sahil Suneja, Elliott Baron, Eyal de Lara, Ryan Johnson GPGPU Computing Data Parallel Tasks Apply a fixed operation in parallel to each element of a data array Examples

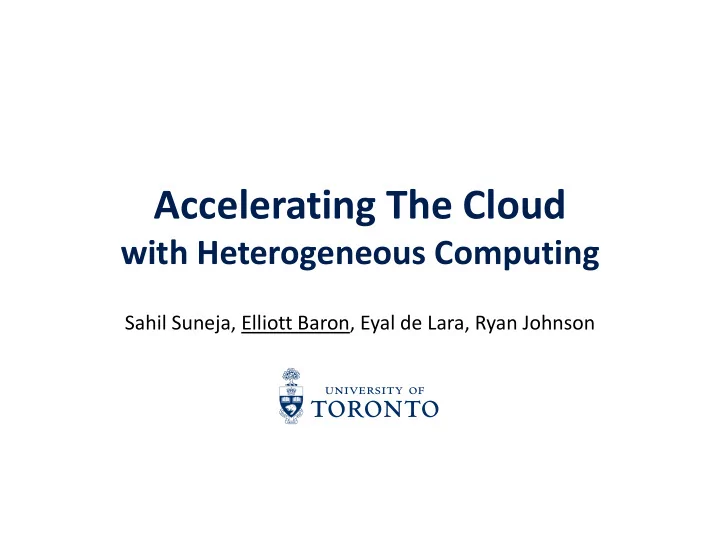

  1. Accelerating The Cloud with Heterogeneous Computing Sahil Suneja, Elliott Baron, Eyal de Lara, Ryan Johnson

  2. GPGPU Computing  Data Parallel Tasks  Apply a fixed operation in parallel to each element of a data array  Examples  Bioinformatics  Data Mining  Computational Finance  NOT Systems Tasks  High-latency memory copying 2

  3. Game Changer – On-Chip GPUs  Processors combining CPU/GPU on one die  AMD Fusion APU, Intel Sandy/Ivy Bridge  Share Main Memory  Very Low Latency  Energy Efficient 3

  4. Accelerating The Cloud  Use GPUs to accelerate Data Parallel Systems Tasks  Better Performance  Offload CPU for other tasks  No Cache Pollution  Better Energy Efficiency (Silberstein et al, SYSTOR 2011)  Cloud Environment particularly attractive  Hybrid CPU/GPU will make it to the data center  GPU cores likely underutilized  Useful for Common Hypervisor Tasks 4

  5. Data Parallel Cloud Operations  Memory Scrubbing  Batch Page Table Updates  Memory Compression  Virus Scanning  Memory Hashing 6

  6. Hardware Management  Complications  Different Privilege Levels  Multiple Users  Requirements  Performance Isolation  Memory Protection 7

  7. Hardware Management  Management Policies  VMM Only  Time Multiplexing  Space Multiplexing 8

  8. Memory Access • All Tasks mentioned assume GPU can Directly Access Main (CPU) Memory • Many require Write Access • Currently, CPU <-> GPU copying required! • Even though both share Main Memory • Makes some tasks infeasible on GPU, others less efficient 9

  9. Case Study – Page Sharing  “De-duplicate” Memory  Hashing identifies sharing candidates  Remove all, but one physical copy  Heavy on CPU  Scanning Frequency ∝ Sharing Opportunities 10

  10. Memory Hashing Evaluation Running Time (CPU vs. GPU) 16 14 12 10 Time (s) 8 6 4 2 0 CPU GPU CPU GPU Fusion Discrete 11

  11. Conclusion/Summary  Hybrid CPU/GPU Processors Are Here  Get Full Benefit in Data Centres  Accelerate and Offload Administrative Tasks  Need to Consider Effective Management and Remedy Memory Access Issues  Memory Hashing Example Shows Promise  Over Order of Magnitude Faster 22

  12. Extra Slides

  13. Memory Hashing Evaluation Running Time (Memory vs. Kernel) 500 450 400 350 Time (ms) 300 250 200 150 100 50 0 Memory Kernel Memory Kernel Fusion Discrete 17

  14. CPU Overhead  Measure performance degradation of CPU- Heavy program  Hashing via CPU = 50% Overhead  Hashing via GPU = 25% Overhead  Without Memory Transfers = 11% Overhead 21
