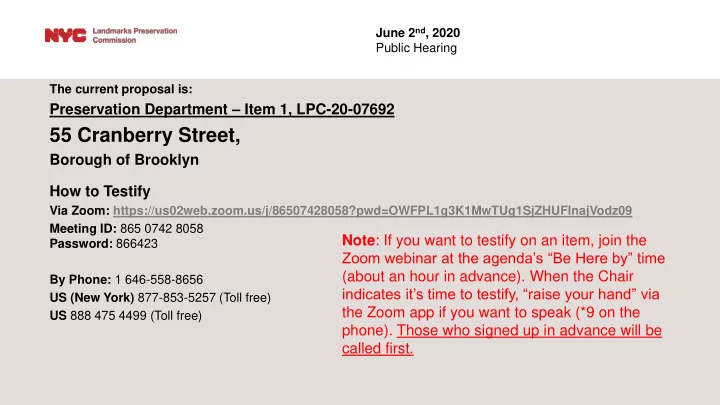

June 2 nd , 2020 Name of Landmark Building Type of Presentation Month xx, year Public Hearing The current proposal is: Preservation Department – Item 1, LPC-20-07692 55 Cranberry Street, Borough of Brooklyn How to Testify Via Zoom: https://us02web.zoom.us/j/86507428058?pwd=OWFPL1g3K1MwTUg1SjZHUFlnajVodz09 Meeting ID: 865 0742 8058 Note : If you want to testify on an item, join the Password: 866423 Zoom webinar at the agenda’s “Be Here by” time (about an hour in advance). When the Chair By Phone: 1 646-558-8656 indicates it’s time to testify, “raise your hand” via US (New York) 877-853-5257 (Toll free) the Zoom app if you want to speak (*9 on the US 888 475 4499 (Toll free) phone). Those who signed up in advance will be called first.

55 CRANBERRY STREET ASSUMPTION OF THE BLESSED VIRGIN MARY: AN ITALIAN-RENAISSANCE STYLE CHURCH BUILDING DESIGNED BY BEDE AND BURLENBACK AND BUILT IN 1908-1909. RENOVATION GUIDING PRINCIPLES AND OBJECTIVES • COMPLETE DEFERRED MAINTENANCE AND RESTORATION • INCREASE ACCESSIBILITY AND MOBILITY • IMPROVE SAFETY FOR ALL USES • ENHANCE FUNCTIONALITY AND FLEXIBILITY OF SPACE • UPDATE QUALITY OF SPACE 1940S TAX PHOTO 1 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

SITE LOCATION MAP Brooklyn Heights Historic District | LP-0099 Brooklyn Br York St Bqe Bqe Legend t S t n o Bqe Cntg Hy t r S F Historic District Boundary t Hicks St t i S t S r s c t d e e n p a o s S v r Building Footprints P E O l d Doughty St Sands St Bqe Cntg Hy F u l t o n S New York City Tax Lots t Pearl St Vine St Bqe En Sb Jay St Bqe Cntg Hy Poplar St Brooklyn Heights Historic District | LP-0099 High St Borough of Brooklyn Red Cross Pl Public Hearing: November 17, 1965 t S u Middagh St a s a s N Designated: November 23, 1965 55 CRANBERRY ST Concord St Cranberry St Chapel St Cadman Pz E O r a n g e S t Pineapple St P i n e a p p l e W k Willow St Tillary St Clark St t S y a r l l T i Columbia Hts l P Johnson St College Pl e o r n o Johnson St M A Cadman Pz W d a m Love La s S t Adams St Pierrepont St Furman St Pierrepont Pl Montague St Montague St Bqe Cntg Hy Remsen St F u l t o n S t Hunts La t S t A l G r a c e C o u r y G r a c e C t r Joralemon St n e H Livingston St A i t k e n P l Bqe En Nb Sidney Pl Garden Pl Columbia Pl Willow Pl Schermerhorn St t Boerum Pl S Court St s k Clinton St c i H State St Boerum Pl Atlantic Av [ 0.065 Pacific St Miles Pacific St Graphic Source: Map PLUTO, Edition 18v1, Author: New York City Landmarks Preservation Commission, LCR Date: 1.28.2019 2 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

1ST FLOOR PLAN PROPOSED EAST PATIO ELEV. SACRISTY STAIR CRANBERRY STREET SANCTUARY NAVE NARTHEX BRIDE’S ROOM OFFICE COMMUNITY ROOM WEST PATIO 3 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

CELLAR PLAN PROPOSED EAST PATIO STORAGE ELEV. CLERGY RECEPTION FISCAL STAIR CRANBERRY STREET SHARED HALL KITCHEN OFFICE COFFEE WOMEN OFFICE MANAGER MEN CLERGY WASHROOM BOILER STORAGE WEST PATIO 4 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

PROPOSED ELEVATOR LOCATION OCTOBER 27th. 1831 PROPOSED ELEVATOR PROPOSED ELEVATOR LOCATION 5 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

ELEVATOR DOOR- BASED ON BHA DISCUSSION Selection Applicable to Standard Package Elevators Selection Applicable to Standard Package Elevators EXTG WINDOW OPENING FILLED IN WITH MATCHING RECESSED BRICK 4" 7'-2 1/4" INFILL BRICK RECESSED 4" 3' RECESSED LIGHT FIXTURE VISIBLE SIGNAL AND FLOOR DESIGNATION G 7'-2 1/4" WHITE BRICK TO OCTOBER MATCH EXISTING 27th. 1831 CALL BUTTONS 3'-0 1/4" GRANITE TO MATCH EXISTING METAL DOOR AND TRIM PTD. TO MATCH BRICK 3'-8" RECESSED LIGHT OVER OPENING EXTG FENCE AND CALL BUTTONS GATE PTD GLOSS BLACK ELEVATOR CALL BUTTONS AND VISIBLE SIGNAL 24x24" CAST CONCRETE DYED REVISED DESIGN 2 24x24" CAST CONCRETE DYED TO BLUESTONE COLOR TO BLUESTONE COLOR ELEVATOR DOOR PROPOSED ELEVATOR SHAFT AND DOOR SECTION 6 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

EXISTING ELEMENTS SACRISTY DOOR: TO BE REMOVED AND STAINED GLASS INSTALLED IN OPENING. EXISTING STAINED GLASS WINDOW TO BE RELOCATED EXISTING CORNERSTONE: FROM ORIGINAL CHURCH. CORNERSTONE TO BE REMOVED AND PLACED INSIDE FOR PUBLIC VIEWING AND REPLICA INSTALLED IN ITS PLACE 7 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

EAST SIDE YARD LOCATION FOR RELOCATED STAINED GLASS WINDOW LOCATION FOR AREA OF EXCAVATION PROPOSED ELEVATOR FOR PROPOSED WALK DOOR OUT PATIO EXISTING EAST SIDE YARD: PROPOSED EAST SIDE YARD LOCATION OF NEW ELEMENTS SHOWN IN RED PERMIT 06-2850 FOR NON HISTORIC BLUESTONE PAVERS APPROVED OCTOBER 7, 2005 8 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

1 MATERIAL KEY 1 - INFILLED WHITE BRICK 2 - MATCH EXTG LIMESTONE HEADER 3 - MATCH EXTG GRANITE BASE 4 - NEW BLUESTONE LOOK CONCRETE 5 - PTD BLACK STEEL RAILINGS 6 - RELOCATED STAINED GLASS WINDOW 1 2 6 5 3 4 9 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

2 MATERIAL KEY 1 - INFILLED WHITE BRICK 2 - MATCH EXTG LIMESTONE HEADER 3 - MATCH EXTG GRANITE BASE 4 - NEW BLUESTONE LOOK CONCRETE 5 - PTD BLACK STEEL RAILINGS 6 - RELOCATED STAINED GLASS WINDOW 7 - INFILLED RED BRICK 8 - NEW ALUMINUM DOORS AND WINDOWS 7 7 8 8 10 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

NEW SIDE YARD PAVING 2%+ SL SLOPE SLOPE 2%+ SL NEW CONCRETE TO MATCH LEVEL OF SIDEWALK ST-1 L S + % 2 MATERIAL SCHEDULE DESIG. DESCRIPTION FINISH ST-1 CAST CONCRETE DYED TO MATCH BLUESTONE ST-2 CONCRETE PAVER DYED TO MATCH BLUESTONE NOTE: SAMPLE TO BE PROVIDED FOR REVIEW AND APPROVAL PRIOR TO CONSTRUCTION. DYED CONCRETE COLOR CHART CAST DYED CONCRETE EXAMPLE ELEVATOR LANDING PLAN 4 3 2 FINAL COLORS TO BE CHOSEN FROM SAMPLES IN THE FIELD Scale: 3/8" = 1'-0" SLOPE SLOPE SLOPE ST-1 ST-2 ST-1 ST-2 ST-2 ST-1 ST-2 ST-1 2%+ SL 2%+ SL ST-2 ST-1 2 ST-1 ST-2 ST-1 ST-2 ST-2 ST-1 ST-2 ST-1 SIDE YARD PAVING PLANS 1 Scale: 3/16" = 1'-0" 11 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

PHOTO KEY PLAN 1 4 2 3 5 2 1 10 9 12 7 8 6 11 12 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

1 2 13 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

3 4 14 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

5 NON HISTORIC BLUESTONE PAVERS. REF: PERMIT FOR MINOR WORK 06-2850 ISSUED ON OCTOBER 7, 2005 FOR THE REPLACEMENT OF CONCRETE PAVERS WITH NEW BLUESTONE FLAGS AT THE AREAWAYS 15 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

6 7 16 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

8 17 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

9 10 18 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

11 12 19 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

SCOPE VISIBLILTY FROM CRANBERRY STREET LEGEND OUT OF SIGHT IN VIEW 6' TALL LINE OF SIGHT EAST ELEVATION MIRRORED EAST ELEVATION MIRRORED 3 Scale: 1/8" = 1'-0" VIEW LINE 63 CRANBERRY STREET 68 MIDDAGH STREET EXISTING FENCE FIELD OF VISION EXISTING SIDE YARD 3 VISIBLE AREA 0 CRANBERRY STREET ° FROM PUBLIC RIGHT-OF-WAY IN VIEW FIELD OF VISION BELOW VIEW LINE BLOCKED FROM VIEW BLOCKED FROM VIEW 55 CRANBERRY STREET 55 CRANBERRY STREET BLOCKED FROM VIEW BLOCKED FROM VIEW FIELD OF VISION BELOW VISIBLE AREA IN VIEW VIEW LINE FROM PUBLIC RIGHT-OF-WAY 30° EXISTING SIDE YARD FIELD OF VISION EXISTING FENCE 58 MIDDAGH STREET 53 CRANBERRY STREET PARTIAL SITE PLAN SIDE YARD PLANS VIEW LINE 2 Scale: 1/8" = 1'-0" 6' TALL LINE OF SIGHT WEST ELEVATION WEST ELEVATION 20 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

CELLAR HALL INTERIOR VIEW TO EAST PATIO HALL- VIEW TO EAST YARD EXISTING HALL- VIEW TO EAST YARD PROPOSED 21 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH

EAST DEMOLITION ELEVATION EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ 8'-5 1/2" OCTOBER 1ST FLOOR FF 27th. 1831 13' 5-1/2" 1'-10" 1'-10" GRADE 3'-8" 4 " 4 " 3 ' - 3 ' - R R R6' R6' 8' 8' 5'-4" 5'-4" CELLAR FF 0' 0" 3'-4" 3'-4" 6' 6' 3'-4" 3'-4" 6' 6' 10" 6'-8" 2' 4'-8" 12' 4'-8" 2' 6'-8" 2' 4'-8" 12' 10" 22 55 CRANBERRY STREET 06/02/20 ASSUMPTION OF THE BLESSED VIRGIN MARY CHURCH
