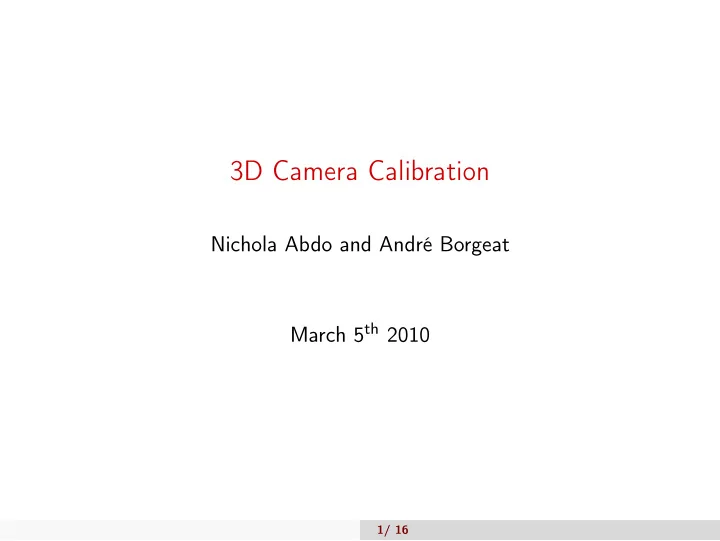

3D Camera Calibration Nichola Abdo and André Borgeat March 5 th 2010 1/ 16
Motivation 3D Imaging • Acquisition of 3D information is important for many computer vision and robotics applications. • Stereo vision cameras combine several images to obtain depth measurements. This is computationally demanding and prone to errors. • Laser scanners are expensive and require a mechanism for scanning a laser beam to cover the entire scene. 2/ 16
The Photonic Mixer Device (PMD) PMD Cameras Source: Ringbeck and Hagebeuker • PMD cameras operate by time of flight (TOF), providing both intensity and distance measurements. • Distance is related to the phase shift between the reference and received signals. • Measurements are obtained by all pixels simultaneously (no need for scanning), resulting in high frame rates. 3/ 16
Sources for Erroneous Depth Measurements Numerous sources that affect the measurements • Distance The distance calculation assumes a perfect sinusoidal modulation, which is practically not given, leading to a distance-dependent oscillating error. • Location of the pixel in the image The individual sensors need time to propagate the signal depending on their location in the sensor array. • Intensity The brighter the image, the more it is shifted towards the camera. • Other sources Temperature, shutter time, multiple reflections, ambient light, edges, over-/ undersaturation 4/ 16
Related Work • Lindner and Kolb: B-splines approximation for the distance-related error and the intensity-related error (2006, 2007). • Kahlmann et al. accounted for the distance and shutter-time related errors using a look-up table approach (2006). • Fuchs and May modeled the distance-related error and the pixel-location-related error as polynomials (2007). Calibration also involved computing the transformation between the camera and end-effector. 5/ 16
Depth Calibration Setup • PMD camera attached to the end effector of a robotic arm. • The arm is moved to different configurations and images are taken of a wall from different view-angles. • The pose of the robot is accurately given by the robot control. • A laser range finder provides the location of the wall in the world coordinate system. PMD-[vision] O3 camera attached to the robotic arm 6/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
3D Projection of the Depth Images v of a pixel v = ( r , c ) of the i th image: 3D coordinate x i x i v = w T tt T s A ( v , D i v − E i v ) D i v : Distance measurement E i v : Error in the distance measurement A : Projection accounts for lens distortion etc. t T s : Sensor-to-TCP transformation sensor origin relative to robot arm w T t : End-effector pose location of the robot arm 7/ 16
Modeling the Depth Error Baseline, Fuchs and May (2006) • Used as basis for our work • Similar setup (camera attached to a robotic arm) • Explicit representation of the different error sources • Error Model consisting of: • Distance-related error D modeled as polynomial m � D ( D i d k [ D i v ] k v ) = k = 0 • Pixel-location-related error P modeled as function linear in row and column P 1 ( v ) = p 0 + p 1 r + p 2 c ⇒ Baseline error model: • E 0 = D ( D i v ) + P 1 ( v ) 8/ 16
Modeling the Depth Error Extensions (I) – Pixel-Location-Related Error 1 Function for pixel-location-related error doesn’t seem to fit Error (in cm) vs. Row Error (in cm) vs. Column ⇒ Different error term: P 2 ( v ) = p 0 + p 1 ( r − r 0 ) 2 + p 2 ( c − c 0 ) 2 9/ 16
Modeling the Depth Error Extensions (II) – Intensity-Related Error 2 Intensity-related error: visible with the naked eye , data available Two candidates: • Plain Intensities I 1 ( I i v ) = i 0 + i 1 [ I i v ] + i 2 [ I i v ] 2 • Normalized Intensitites N i v = i n · I i v · [ D i v ] 2 I 2 ( I i v , D i v ) = i 0 + i 1 [ N i v ] + i 2 [ N i v ] 2 ⇒ Two extended error models: • E A = D ( D i v ) + P 2 ( v ) + I 1 ( I i v ) • E B = D ( D i v ) + P 2 ( v ) + I 2 ( I i v , D i v ) 10/ 16
Calibration • Find a parameterization a ⋆ of E and t T s that minimizes the error • Assume a fixed, plane wall with known location ( n , d ) , the error of the distance measurement of a pixel is given by f i v ( a ) = n T � x i � ( x i + d v : 3D Projection of a pixel) v • Using a number of images i taken from different locations, the calibration task can be formulated as a ⋆ = argmin a � � f i v ( a ) 2 v i • Can be solved using techniques for nonlinear Least Square Estimation (e.g. Levenberg-Marquardt ) 11/ 16
Experiments Setup • 42 images from different locations • 20 images of the plain white wall • 22 images of a checkerboard pattern • Training and testing done using 6-fold cross validation Results • All techniques significantly reduced the error • Both our techniques outperformed the baseline • No significant difference between our two candidates 0 E 0 E A E B Mean 26 . 54 15 . 14 10 . 90 11 . 68 2 . 57 SE ± 6 . 48 ± 4 . 26 ± 4 . 13 ± 3 . 44 Average error in millimeters 12/ 16
Qualitative Results Sensor-to-Tool-Center-Point Transformation Plane after applying the sensor-to-TCP Uncorrected plane transformation 13/ 16
Qualitative Results Intensity Correction Error without intensity correction Error with intensity correction 14/ 16
Conclusions • Our extended model outperforms the baseline model. • Accounting for the intensity-related error clearly improves the accuracy of the distance measurement. • There are different approaches considering the intensity-related error that we did not have the time to compare against (e.g. Lindner and Kolb (2007)). • Room for improvement: • Unexplained high variance in the individual results and some strange measurements • There are probably other important error sources not accounted for, but one has to be cautious when extending the model as a larger number of parameters could lead to overfitting. 15/ 16
Questions 16/ 16
