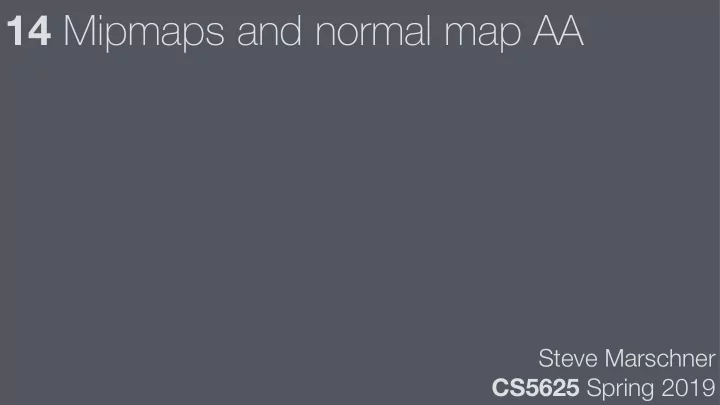

14 Mipmaps and normal map AA Steve Marschner CS5625 Spring 2019 - PowerPoint PPT Presentation

14 Mipmaps and normal map AA Steve Marschner CS5625 Spring 2019 Overview Basic sampling problem Texture mapping defines a signal in image space That signal needs to be filtered: convolved with a filter Approximating this drives all


  1. 14 Mipmaps and normal map AA Steve Marschner CS5625 Spring 2019

  2. Overview Basic sampling problem • Texture mapping defines a signal in image space • That signal needs to be filtered: convolved with a filter • Approximating this drives all the basic algorithms Antialiasing nonlinear shading • Basic sampling su ffi ces only if pixel and texture are linearly related • Normal mapping is the most important nonlinearity

  3. Texture mapping from 0 to infinity When you go close…

  4. Texture mapping from 0 to infinity When you go far…

  5. Solution: pixel filtering Problem: Perspective produces very high image frequencies Solution • Would like to render textures with one (few) samples/pixel • Need to filter first!

  6. Solution: pixel filtering point sampling area averaging

  7. Pixel filtering in texture space Sampling is happening in image space • therefore the sampling filter is defined in image space • sample is a weighted average over a pixel-sized area • uniform, predictable, friendly problem! Signal is defined in texture space • mapping between image and texture is nonuniform • each sample is a weighted average over a di ff erent sized and shaped area • irregular, unpredictable, unfriendly! This is a change of variable • integrate over texture coordinates rather than image coordinates

  8. Pixel footprints image space texture space

  9. How does area map over distance? At optimal viewing distance: • One-to-one mapping between pixel area and texel area When closer • Each pixel is a small part of the texel • magnification When farther • Each pixel could include many texels • “minification” upsampling downsampling magnification minification

  10. How to get a handle on pixel footprint We have a nonlinear mapping to deal with R 2 : u 7! x ( u ) R 2 ! I • image position as a function of texture coordinates: I • but that is too hard Instead use a local linear approximation • hinges on the derivative of u = (u,v) wrt. x = (x,y) u ( x + ∆ x ) ≈ u ( x ) + ∂ u ∂ x ∆ x " ∂ u ∂ u # ∂ u Matrix derivative, ∂ x ∂ y ∂ x = or Jacobian ∂ v ∂ v ∂ x ∂ y

  11. Sizing up the situation with the Jacobian image space texture space � ∂ u � ∂ y , ∂ v � ∂ u � ∂ x , ∂ v ∂ y ∂ x ( 0 , 1 ) ( 1 , 0 ) y v x ψ ( x ) x u

  12. How to tell minification from magnification Di ff erence is the size of the derivative • but what is “size”? � � ∂ u • area: determinant of Jacobian: � � � � ∂ x � � • max-stretch: 2-norm of Jacobian (requires a singular-value computation) • Frobenius norm of matrix (RMS of 4 entries, easy to compute) • max dimension of bounding box of quadrilateral footprint: max-abs of 4 entries (conservative) Take your pick; magnification is when size is more than about 1

  13. Solutions for Minification For magnification, use a good image interpolation method • bilinear (usual) or bicubic filter (fancier, smoother) are good picks • nearest neighbor (box filter) will give you Minecraft-style blockies For minification, use a good sampling filter to average • box (simple, though not usually easier) • gaussian (good choice) Challenge is to approximate the integral e ffi ciently! • mipmaps • multi-sample anisotropic filtering (based on mipmap)

  14. Mipmap image pyramid MIP Maps • Multum in Parvo: Much in little, many in small places • Proposed by Lance Williams Stores pre-filtered versions
 of texture Supports very fast lookup • but only of circular filters
 at certain scales [Akenine-Möller & Haines 2002]

  15. Filtering by Averaging Each pixel in a level corresponds to 4 pixels in lower level • Average • Gaussian filtering

  16. <latexit sha1_base64="EOhaTlnq84sPc1CEnsnq2xc0kI=">ACkHichVHLSsNAFJ3Ed31VXboZLIqrkrQRIygqbsSVglWhKWUyvamDk0mYmRLyPf4P+78Cz/Baepb0QsDh3PuPXM5N0w5U9pxnix7YnJqemZ2rjK/sLi0XF1ZvVJim0aMITeRMSBZwJaGmOdykEkgcrgO705G+vUApGKJuNTDFDox6QsWMUq0obrVhyCEPhN5GBMt2X1RCSJaB6kRGpGOM6KD3xf4C38hz4sgoFKCYXcS3URBN+9Bv94Db54VQIQvfe9utWaU/d3HFP4J3DrTlm1w2dU1nm3+hj0EprFIDTlRKm26S6k4/sKQfjnikwu96RPrQNFCQG1cnLQAu8aZgejhJpntC4ZD9P5CRWahiHptPsd6u+ayPyN62d6cjv5EykmQZBx9FGc6waPr4B6TQDUfGkCoZGZXTG+JSUmbG1bKELxGw/eaeAya7hvw30O4atRdr7534dWOTsdpoFm0jbQNnLRLjpCp+gctRC1Fq2mtW8d2Ku2bx/ax+NW23qdWUNfyj57AW6uzOc=</latexit> Using the MIP Map Find the MIP Map level where the pixel has a 1-to-1 mapping • How to do this? Find size of pixel footprint in texture space • Pick level where that size corresponds to a texel " ∂ u ∂ u # • How to measure “size?” ∂ x ∂ y Compute derivatives to find pixel footprint • How does (u,v) change as (x,y) changes? ∂ v ∂ v • 2x2 derivative matrix ∂ x ∂ y

  17. <latexit sha1_base64="Ed/S/lmVK3C8svdBGmcHY4buFsE=">ACtHichVFNa9tAEF2pH0nVtHaYy9LTSGhYCTHSdxDSaAXH12o4DXdVfrkb1ktVJ2RyZG6Bfm1lv+RX5C13K/65IHC483b2aWN3GupMUwvPX8Bw8fPd7afhI83Xn2fLex9+LcZoURMBCZysxFzC0oqWGAEhVc5AZ4GisYxpcfVvXhAoyVmf6EyxzGKZ9pmUjB0UmTxo2i7ylT2YzZK4NlwBQkuM8Sw0XJcm5QckWL6he/rpiRszkefG7Tt3Szf/E/3jl/fbF5vtQTVpNMNW9yh0oP+SqBXWaJ7ekRr9SeMrm2aiSEGjUNzaURTmOC5Xs4WCKmCFhZyLSz6DkaOap2DHZR16Rd84ZUqTzLinkdbq7x0lT61dprFzphzn9u/aStxUGxWYdMel1HmBoMV6UVIoihldXZBOpQGBaukIF0a6v1Ix5y4idHcO6hA67Xa3c0jX5D6Qbo/Qzhvt6JO693HTvOst06DbJNX5DXZJxE5IWekR/pkQIQXeUPvi8f9Y5/5woe1fe+97wkf8DX3wB0wNhN</latexit> <latexit sha1_base64="Lkf9jmjtz0lYWX0ispQDjwxun1Q=">ACwniclVFNT9tAEF27tFD3K6VHLiuiSlSqIjsEkR4QSOXAkUoEkGIrWm/GyZb1rtkdIyInf7I3/kV/Qjd2y1e5MNJqnt68mVm9SQspLIbhje/WHn5anXtdfDm7bv3H1of10+tLg2HAdSm/OUWZBCwQAFSjgvDLA8lXCWXnxf1s+uwFih1QnOCkhyNlEiE5yho0atG0n3aCz1JaQ4TDO2XWNtoI6zePMF7FBTMomKTl4g5fL2IjJlOcf6VPi6+eI74/efacybfioMlfmpSMWu2w098JXdD/QdQJ62jv/yZ1HI9av+Kx5mUOCrlk1g6jsMCkWq7hEhZBXFoGL9gExg6qFgONqnqEyzoZ8eMaNewpzd7vqFhu7SxPnTJnOLWPa0vyqdqwxKyfVEIVJYLizaKslBQ1Xd6TjoUBjnLmAONGuL9SPmXOLXRXD2oTet1uv7dNG7Ad/QP9WxNOu52o1/n2o9c+OGrcIGtkg2ySLRKRXJAjsgxGRDu7XvgKU/7h/5P/9K3jdT3/vZ8Ig/Cn/8BcFLhpw=</latexit> Given derivatives: what is level? Need to reduce the matrix to a single number • aka. choosing a matrix norm; several choices available with di ff erent tradeo ff s • elementwise max partial derivative: ✓� � � � � � � �  ◆� ∂ u ∂ v ∂ u ∂ v � � � � � � � � l = log max � , � , � , � � � � � � � � ∂ x ∂ x ∂ y ∂ y � � � � � • root-mean-square of partial derivatives: s✓ ∂ u ◆ 2 ◆ 2 ◆ 2 ◆ 2 ✓ ∂ v ✓ ∂ u ✓ ∂ v l = log + + + ∂ x ∂ x ∂ y ∂ y • either way, you get a non-integer level at which to look up

  18. Using the MIP Map In level, find texel and • Return the texture value: point sampling (but still better)! • Bilinear interpolation • Trilinear interpolation Level k Level ( k + 1)

  19. Memory Usage What happens to size of texture? • level 1 takes 1/4 the
 memory of level 0 • level 2 takes 1/16, etc. • in total, adds 1/3 to the
 storage requirements

  20. MIPMAP Multi-resolution image pyramid • Pre-sampled computation of MIPMAP • 1/3 more memory Bilinear or Trilinear interpolation

  21. Point sampling point sampled mini fj cation mipmap mini fj cation

  22. Point sampling point sampled mini fj cation mipmap mini fj cation

  23. Reference: gaussian sampling by point sampled 512x supersampling mini fj cation mipmap mini fj cation

  24. Reference: gaussian sampling by point sampled 512x supersampling mini fj cation mipmap mini fj cation

  25. Texture minification with a mipmap

  26. Texture minification with a mipmap

  27. Texture minification: supersampling vs. mipmap

  28. Texture minification: supersampling vs. mipmap

  29. How to do better? RIP maps and summed-area tables • can look up axis-aligned rectangular areas • diagonals still a big problem! Elliptical Weighted Average (EWA) filter • perform multiple lookups • accumulate using filtering weights • MIP map pyramid still helps!
