Quick, efficient, dynamic and smart, thats what VERAUT GmbH is about. With the most modern technologies and innovative methods we guarantee, that the increasing demands in the area of meter reading / smart metering are met. You cant

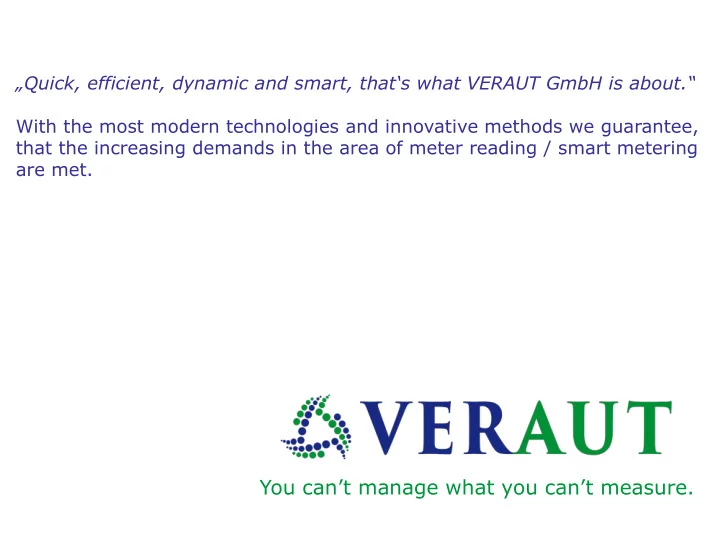

  1. „Quick, efficient, dynamic and smart, that‘s what VERAUT GmbH is about.“ With the most modern technologies and innovative methods we guarantee, that the increasing demands in the area of meter reading / smart metering are met. You can’t manage what you can’t measure. Verfahrens- und Automationstechnik GmbH

  2. About us. 30 years of successful Wireless Quick, smart & partnerschip Data- independent with our communication customers. Meter- Innovative End-to-End Worldwide turn-key independent and customer- customers- solutions and specific satisfaction interoperable solutions for metering. Customer Wireless 100% Satisfaction in communications Data combination with Know-How reliability high quality standards Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  3. Products – Automatic Meter Reading (AMR) Schnell, smart & Datalogger with integrated mobile unabhängig communication (LTE, UMTS, GPRS) (TÜV-A 04 ATEX 0001X,Ex II 2 G) • ATEX ExZone1 certified (hazardeous area) • Data reading of various measuring instruments (meters with: pulse, serial interface, encoder, volume corrector) and storing of readings in a in non- volatile memory. Dimension: 190 x 135 x 55 mm • Transmission via LTE-4G/UMTS-3G/ GPRS-2G to IT system. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  4. Products – Smart Metering Flexible, proven, fast and interoperable Smart Metering Solution (Sub 1Ghz) with bi-directional VERICOM RF-modules and VERICOM data-concentrator for data- communication to IT-headquarter. VERICOM Datenkonzentrator Dimension: 105 x 75 x 25 mm Neutral against external hardware • (lots of interfaces for read-out) Fully automatic transmission of load • profiles of various household meters Automatic UMTS-transfer to IT system • VERICOM radio nodes automatically VERICOM Funkknoten establish a self-healing Mesh-Network. Dimension: 36 x 27 x 5 mm Each radio node (meter) is automatically a bi-directional router for alle radio nodes within same radio network. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  5. Products – MDM Evaluation Platform VERILOG software solution for "real- time reports", analyses and graphical evaluations Data-Collection and Evaluation • Graphical processing of meter data • integrated alarm management to be • able to react immediately to "problems” with in network Energy Reports and Analysis • applicable for VERIBOX-MINI and VERICOM solution Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  6. Products – Energy Report VERISMART Energy Report reports the entire consumption analysis over the specified period of time. 1 x per year • Display of optimization and savings • potential for multi-year use: overview of the • achievement of the targets set in the previous year Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  7. Products – AM.COM Automatic traffic light "green signal" - control for emergency vehicles and/or public transport. Timely “influencing” of traffic light • controls for emergency vehicles and/or public traffic in order to be able to pass the traffic light at "green". 30% quicker access to the site of • operation Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  8. Products – Mobile Silo Online silo level measurement and remote transmission Measurement of the filling level in • silos Transmission of filling data to an IT • system efficient refill logistics In operation on de-icing silos, • building material silos, LPG tank silos, etc. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  9. ATEX Data-Logger with integrated 4G [LTE] - Engine ATEX TÜV – Austria PTB zertifiziert zertifiziert PTB-1.42-4029030 TÜV-A 04ATEX0001X Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  10. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  11. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  12. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  13. Description. VERIBOX-MINI is an ATEX ExZone1 certified, battery-powered automatic meter reading unit, which logs data at user-defined intervals and sends data via GSM/GPRS/UMTS/LTE to the headquarter at user-defined time intervals for wireless data retrieval and data-analysis. VERIBOX-MINI is equipped with 4 dig. Inputs ( e.g. pulses/reed contact, switch), 3 analoge inputs (e.g. pressure - / temperature sensors) as well as RS232/485 to collect data from different types of volume correctors. (Optional interface for reading M-BUS, Absolute Encoder SCR/SCR+, GrayCode, Multiplexer Board for up to 4 serial communications available) Dimension: approx. 190 x 135 x 55 mm Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  14. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  15. Benefit. • No manual meter reading on site. • No post-processing due to type errors when reading the meters manually. • Actual Meter Value / Index. • Easy & quick accounting. • Easy and automatic load profiles, according to EU-regulations. • Base for „new rate models“. • Base for e-business services. • Variable metering intervals. • Battery-powered (up to 12 years based on daily mobile transmission) – no mains power needed. • Fast & easy detection of leakage. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  16. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  17. Interfaces. 4 digital Inputs (e.g. Pulse / Reed, switch) and 3 analogue Inputs (0-20 mA or 0-3V/0-10 V) and 2 digital Outputs (Open collector, max. 100mA) and Serial Interface RS232/RS485/TTL (e.g. different types of EVCs) and Optional: - M-BUS / SCR / SCR+ (Absolute-/GrayCode Encoder) Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  18. Interfaces. Serial Interface RS232/RS485/TTL Electronic Volume Correctors: - ACTARIS/ITRON CORUS PTZ - KAMSTRUP UNIGAS 300 / E61 /D61 - SICK FLOWSICK 500 - INSTROMET 999/900/444 - ELSTER 88, EK90/260 - PLUM MACBAT - ELGAS ELCOR - DRESSER / DRESSER MICROSERIES - REYNOLDS EVC - MERCURY EVC - AMERICAN METER PTZ - FLONIDAN UniFlo - BARTON EVC - Proser EVC - TRITSCHLER - etc. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  19. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  20. Mobile Transmission. GPRS/UMTS/LTE – General Packet Radio Service (FTP-File Transfer Protokoll, Email, XML, etc.) and/or SMS – Short Message Service and/or HTTP-Stream Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  21. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  22. Power Supply. 3,6 VDC Li-Battery (optional 8-pack-Battery) and/or 230 VAC Mains Power Backup-Battery ALL ATEX EX ZONE 1 CERTIFIED !!! ALL HAZARDOUS AREA CERTIFIED !!! Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  23. Overview. Description Benefit Interfaces Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  24. Exportfile-Format. * FTP-Transmission – CSV-File: <SerNr>;<Date>;<Timestamp>;<Name Value1>,<Value1>; …etc. 17045;20.02.2014;08:00:00;MW1;564,5;Druck;2,6;…GSM;47;BATT;3561 17045;20.02.2014;09:00:00;MW1;565,8;Druck;2,8;…GSM;47;BATT;3556 17045;20.02.2014;10:00:00;MW1;566,2;Druck;2,5;…GSM;47;BATT;3558 17045;20.02.2014;11:00:00;MW1;566,9;Druck;2,6;…GSM;47;BATT;3556 17045;20.02.2014;12:00:00;MW1;567,3;Druck;2,6;…GSM;47;BATT;3560 * SMS – plain text: 17045;20.02.2014;08:00:00;MW1;564,5;565,8;566,20; * SMS – decrypted: 2 924 qT_K0089c0 01oo Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  25. Overview. Description Benefit Interfaces GSM/GPRS Transmission Power Supply Exportfile Installations Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  26. . Installations. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  27. . Installations. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  28. Installations. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH

  29. Installations. Verfahrens- und Automationstechnik GmbH - Verfahrens- und Automationstechnik GmbH
