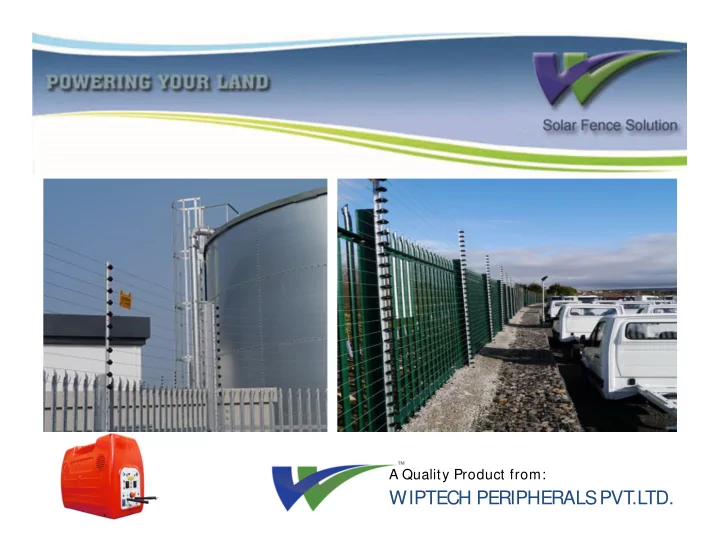

A Quality Product from: WIPTECH PERIPHERALS PVT .L TD.

A Quality Product from: WIPTECH PERIPHERALS PVT .L TD.

• WIPTECH, a pioneer in its field, has become the benchmark for the security electric fencing industry. The Wiptech manufactures with vimox a full range of energizers and fencing hardware and has become a globally known and respected company. • WIPTECH products have become a household name and are now being specified by many governments, local authorities and industries as the product of choice to protect their utilities, correctional facilities and defense infrastructures. This has been achieved by continuous innovation, fast response to the changing dynamics experienced in the security field, the reliability of their products and the continuous support and close working relationship with their clients.

WHAT IS WIPTECH SOLAR FENCING? WIPTECH SOLAR FENCING solution is today’s alternative to the conventional type of perimeter protection. These are active fences and punish the unwanted intruder the moment they touches the fence or try to tamper the fence. Wiptech fencing gives a Sharp, Short, Painful, Regulated but Safe Electric Shock and creates psychological fear. WIPTECH SOLAR FENCING is a barrier that uses Solar Based electric shocks to deter animals or people from crossing a boundary. The voltage of the shock may have effects ranging from uncomfortable to painful but not lethal/ Fatal. The charge of pulse for 3 M icrosecond is sent through the fence in 1 second intervals and gets energized to 9900 volts.

WHY WIPTECH SOLAR FENCE SOLUTION? Reduction of Damage through use of WIPTECH SOLAR FENCING 1. For animal & People control Keep animals & People, including wild and vermin, away. M any People puts direct current 11000V/ 230V live wire in fence & many animals as well as people died. They have right to live. WIPTECH SOLAR FENCING keeps them away by psychological fear. 2. For profit Substantial increase in the pasture production. The return of valuable animal & Human (People) manure more evenly over the grazing area than having it concentrated in specific areas. Better protection of Company or Land from animals & People

• We have installed Solar Power Fence S ystem for Domestic and Commercial places • We has installed Solar Power Fence S ystem for Agriculture Farm Lands in various parts of India for the protection of farm lands from the animal menace like wild boar, buffalo, sheep, etc. For last 7 years we had not only protected the agricultural sector from animal menace but with its advanced and sophisticated technology is protecting properties of various Private, Central and State Govt. organizations. • We have installed Solar Power Fence S ystem for various VIP Guest Houses, Industries, Godowns, Residential Bungalows, Group Houses, Resorts and Apartments for the protection from the intruders. • We have installed Solar Power Fence S ystem for a nursery plant & vegetable farm land in All over state for the protection of villagers and their crops from Elephants and wild life.

ADVANTAGES OVER CONVENTIONAL FENCES The major advantages of Electric Fences over traditional fences are: • No barbed wires are used. Only plain High tensile (Strong) wire is used. • A long life as the fence is not subjected to physical pressures of wear and tear. • Selective barriers possible. For example, Elephant barriers can be designed to allow smaller animals like cattle to move in and or out. • It is used in more than 165 countries all over the world. • It is the most effective method of fencing, and is safe to all kinds of animals and to human beings. • It is long lasting and can be modified, extended, shifted and re-erected from one place to another, without loss of materials and waste of labor. • This is the only method of fencing, which can effectively keep all kinds of wild animals out. • It is not dependent on regular electricity supply as it operates on battery.

HOUSE/ BANGLOW SOLAR ELECTRIC FENCING

WILDLIFE/ ZOO SOLAR ELECTRIC FENCING

INDUSTRIAL PERIM ETER SOLAR ELECTRIC FENCING

IS IT SAFE TO INSTALL WIPTECH SOLAR FENCE? The voltage pulses emitted every second last only 3 microsecond. Hence the shock is completely safe. The fence wires are not live wires causing no lethal/ fatal damage to human beings and animals. Safety Standards Referred parameters: BIS 302-2-76 IEC 60335-2-76 It is important to emphasize that our systems are designed to be safe even under abnormal circumstances

WIPTECH SOLAR FENCE SYSTEM COM PONENTS :  Solar Fence Energizer  Tubular LA/ LM Battery with Connector Cable  Solar M odule with Connector Cable  Stand For Solar M odule & S ystem  External Alarm  High Grade Insulators for Fencing  Fence Wire S ystem (Single or M ultistrand)  Fence Pole ( As per requirement)  Insulators, Wire Tightners,Tension Springs,  Jointning Clamps, etc.  Double Insulated Cable from system to Fencing  Proper Earthing  Warning Sign Boards and other accessories

WIPTECH SYSTEM WORKING PRINCIPLE : The Solar module generates the DC energy and charges the Battery. The output of the battery is connected to Energizer. The energizer produce a short, high voltage pulse at regular rate of one pulse per second.

WIPTECH SOLAR FENCE DETAILS : ENERGIZER: The heart of WIPTECH SOLAR FENCE is the Energizer. M ain function of the energizer is to produce short and sharp pulses of about 5000-9000 volts at regular intervals. The power input is from the DC energy from battery. The energizer should be protected mechanical damage and away from inflammable material. Solar PV M odule converts sun shine into Electrical Energy and send to energizer through battery back-up Energizers convert it into high voltage pulse in the range of 5 KV to 9 KV. Pulses travel through fencing wires at regular interval of 1.2 second. Duration of pulse is 3 microsecond. It gives sharp shock to intruders. Audio alarm will alert any kind of intrusion

WIPTECH SOLAR FENCE DETAILS : EARTHING SYSTEM : The earth or ground system of the Energizer is like the antenna or aerial of a radio. A large radio requires a large antenna to effectively collect sound waves and a high powered Energizer requires a large number of electrons from the soil. The earth or ground system must be perfect to enable the pulse to complete its circuit and give the animal an effective shock. Soil is not a good conductor so the electrons spread out and travel over a wide area, inclining towards moist mineral soils. If possible, select an area for the energizer earth site which is damp all the year. Best Grounding S ystem effective in best results.

WIPTECH SOLAR FENCE DETAILS : FENCE WIRE SYSTEM S: Earth or ground Wire Return S ystem. The earth or ground wires return system should be used for overall fence system Incase of there is low rainfall stony and dry soil condition most of the year. The system runs effectively with sufficient current to flow through the animal's feet back to the energizer. The fence should have both live and ground wires. By touching the live and ground wires on the fence, the animal gets the shock.

WIPTECH SOLAR FENCE DETAILS : Fence wire: 12 Gauge G.I. wire is recommended for electric fence systems because of its advantages: It retains its tension far longer than soft wire. It conducts sufficient current for most applications. It is reasonable visible. Precautions: Never use household electrical cable. Never use copper wire under-grade cable because electrolysis problems occur where it is joined to the galvanized fencing wire. Never electrify barbed wire. It is dangerous, has the potential to cause faults.

WIPTECH SOLAR FENCE APPLICATIONS : • Wide range of Applications - People began to use electric fence in agriculture & Commercial and wildlife management since 1930s. In nowadays, Energized fences are widely used to protect the Land area and to manage the animals & People, but the continuing development of energizer technology and new developmen t has resulted in solar fence solutions for a rising number of agricultural and domestic & Commercial applications. Now, WIPTECH solar fencing is not only used by farmers and Landowners to protect crops and livestock, but also by a growing number of non-agricultural users. M ore and more people like to use WIPTECH solar fence system to protect their gardens, ponds, vegetable plots, Cropland, Grassland, Shrubs, Landscape, Tress, Orchards other plantings or to contain and protect pets and poultry. Whether you’re trying to keep animals in, or pests out, an electric fencing system might just be the choice.

WIPTECH SOLAR FENCE CONCLUSION: • Easy to install • Absolutely low cost - Low cost security and management, cost effective operation – short pay back period • Reliable and Durable - Round the clock Vigilance – 24/ 7 x 365 days • Trouble Free Performance S ystem - Uses Indigenous Latest Digital Signal Processing real-time Technology Customized compact design, quality and rugged system. • Very Low M aintenance - Zero Downtime - Works on SOLAR POWER • Ideal for Remote areas.

WIPTECH SOLAR FENCE SOLUTION CONTACT : WIPTECH PERIPHERALS PVT. L TD. 101, DWARKADHISH COM PLEX, TAGORE ROAD, RAJ KOT GUJ ARAT – 360002. INDIA PH: 0281-2464443 M OB: 9099098798 Email: nimesh.patel@wiptech.com www.wiptech.co.in

Powering Y our Land ao Bindass!! Ho J THANK YOU
