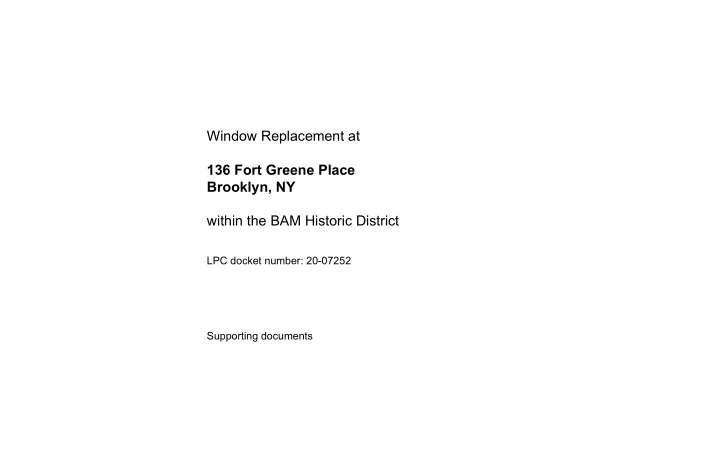

Window Replacement at 136 Fort Greene Place Brooklyn, NY within the BAM Historic District LPC docket number: 20-07252 Supporting documents
F u l t o n A v e n u e e u n e v A e t t Brooklyn Academy of e y a f a L Music Historic District St Felix Street 136 Fort Greene Place Flatbush Avenue e c a P l n o s n a H Fort Greene Place Atlantic Atlantic A t l a Terminal n Center t i c A v e 4th Avenue Barclays Center February 11, 2020 136 Fort Greene Place, Brooklyn, NY Location Map Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 1 of 14
1940’s tax photo 2019 photo February 11, 2020 136 Fort Greene Place, Brooklyn, NY Front Facade Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 2 of 14
Existing single pane, double hung New Marvin ‘Ultimate wood double hung wood windows to be replaced windows’ - wood exterior painted black. - typical for 2nd and 3rd floors. - typical for 2nd and 3rd floors. Existing wood brick-molding 3rd Floor to be replaced - typical for 2nd and 3rd floors. 2nd Floor New Marvin ‘Ultimate wood double hung windows’ - wood exterior painted black. Existing single pane, double hung replacement windows muntin to align with interior shutters 3’-5” 2/5 . 4’-3” EQ . to be replaced. Check Rail positioned to align with original interiorwood shutters - as per Aluminum window surround 2005 LPC approval. See page 10. to be removed. 5’-1” 4’-3” New hard wood brick molding at EQ . 3/5 Existing wood brick molding under Parlor Floor windows. the aluminum cover to be replaced. Parlor Floor New Marvin ‘Ultimate wood double hung Existing single pane wood windows’ - center mullion to match windows to replaced existing width - wood exterior painted black. Existing wood brick-molding and sills to be replaced. Basement Existing Front Elevation Proposed Front Elevation 3/16” = 1’-0” 3/16” = 1’-0” February 11, 2020 136 Fort Greene Place, Brooklyn, NY Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 3 of 14
New Marvin ‘Ultimate wood double hung Existing aluminum, double hung windows’ - wood exterior painted black. windows to be replaced - typical for 2nd and 3rd floors. - typical for 2nd and 3rd Floors. New hardwood brick-molding Aluminum window surround painted black - typ. 2nd & 3rd Floors. to be removed - typical 2nd 3rd Floor and 3rd Floors All wood brick-moldings (currently covered with aluminum) to be replaced - typical for 2nd and 3rd Floors. Existing rotted wood brick-moldings Top of Parapet to be replaced Roof at extension Roof at extension 2nd Floor New Marvin ‘Ultimate wood double hung Existing aluminum, double hung windows’ - wood exterior stained and varnished to match existing wood molding. windows to be replaced. Existing oak brick moldings Horizontal muntin raised to match front to remain windows Top of Deck Parlor Floor No change to basement level wood windows. Basement Existing Rear Elevation Proposed Rear Elevation 3/16” = 1’-0” 3/16” = 1’-0” February 11, 2020 136 Fort Greene Place, Brooklyn, NY Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 4 of 14
Existing Parlor Floor Windows at the Rear Wall Extention Existing 2nd & 3rd Floor Windows at the Rear Wall Existing rear windows are double hung aluminum windows in bad condition. The existing Existing rear windows are double hung aluminum windows in a bad state of repair. Aluminum exterior wood moldings and frame are to remain. Panning over the wood brick molding will be removed. The existing wood moldings are assumed to be in poor condition and will need to be replaced. The exposed wood moldings and frame for the two left-hand windows on the 2nd Floor are exposed and in very bad condition. February 11, 2020 136 Fort Greene Place, Brooklyn, NY Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 5 of 14
136 Fort Greene Place Upper fmoors of rear facade are visible from Hanson Place February 11, 2020 136 Fort Greene Place, Brooklyn, NY View from Hanson Place Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement Rear windows at upper fmoors are visible 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 6 of 14
1-3/4" 1-7/32" 4-9/16" 2" 2" 2-1/4" 2-7/32" 1-1/8" 2-11/32" 3-9/16" 4-1/4" 4-25/32" 1-1/4" 1-3/32" Existing Head and Sill Detail - Basement, 2nd and 3rd Floors at Front Facade Proposed Head and Sill Detail - All windows (all other windows are newer replacements) February 11, 2020 136 Fort Greene Place, Brooklyn, NY Window Head and Sill details Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 7 of 14
2" 2" 2-1/4" 2-1/2" Center mullions on front windows only. 7/8" 7/8" 2-1/4" 2-1/2" 2" 2" Existing Jamb Detail - Basement, 2nd and 3rd Floors on the Front Facade Proposed Jamb Detail - All windows (all other windows are newer replacements) February 11, 2020 136 Fort Greene Place, Brooklyn, NY Window Jamb Detail Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 8 of 14
2/5 3’-5” 2/5 3/5 5’-1” 3/5 120 Fort Greene Place, circa 2005 5 Panel Shutters Windows on the parlor fmoor will be one over one windows pro - From 2005 Landmarks application for windows replacement 136 Fort Greene Place - diagram showing proposed proportions February 11, 2020 136 Fort Greene Place, Brooklyn, NY Raised Check Rail precedent Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 9 of 14 Page 7
February 11, 2020 136 Fort Greene Place, Brooklyn, NY 2005 LPC approved drawings for front parlor windows Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement with check rail positioned to align with interior shutters. 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 10 of 14
1/4” 2” Oringinal brick molding as they appear at the basement, Center Mullion is 2” wood, plus the glazing putty second and third fmoor windows on the front facade. February 11, 2020 136 Fort Greene Place, Brooklyn, NY Basement Window Details Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 11 of 14
EQ. 25.5” 25.5” 26.5” 27” EQ. February 11, 2020 136 Fort Greene Place, Brooklyn, NY Basement Window Proportions Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement Shutters designed to align with check-rail 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 12 of 14
40.5” 38.5” Rectangular nail heads 22.5” Wood dowel fasteners at corners Rectangular nails head (face) Exposed rectangular nail (rear) February 11, 2020 136 Fort Greene Place, Brooklyn, NY Parlor Window Shutters - estimated original to the house Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 13 of 14
120 Fort Greene Place 130 Fort Greene Place 132 Fort Greene Place 134 Fort Greene Place Almost all houses had one-over-one windows by 1940 But many houses still had 5-Panel shutters in 1940 tax photos February 11, 2020 136 Fort Greene Place, Brooklyn, NY Neighboring windows circa 1939 - 41 Drawings prepared by Urban Matrix Architecture and Planning, PC Window Replacement 136 Fort Greene Place, Brooklyn, NY 11217 T: (646) 468 0467 page 14 of 14
