WHP WHP SOUTHERN CA GAS TRANSCANADA/ALLIANCE WESTERN HUB - PowerPoint PPT Presentation

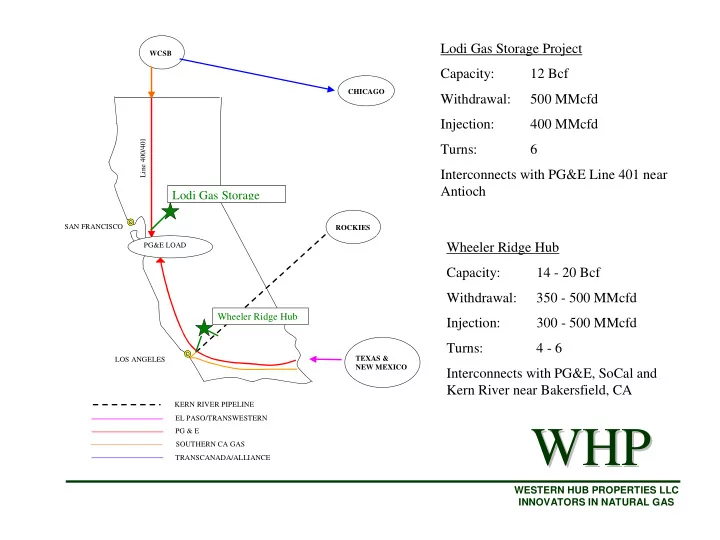

Lodi Gas Storage Project WCSB Capacity: 12 Bcf CHICAGO Withdrawal: 500 MMcfd Injection: 400 MMcfd Line 400/401 Turns: 6 Interconnects with PG&E Line 401 near Antioch Lodi Gas Storage SAN FRANCISCO ROCKIES Wheeler Ridge Hub


  1. Lodi Gas Storage Project WCSB Capacity: 12 Bcf CHICAGO Withdrawal: 500 MMcfd Injection: 400 MMcfd Line 400/401 Turns: 6 Interconnects with PG&E Line 401 near Antioch Lodi Gas Storage SAN FRANCISCO ROCKIES Wheeler Ridge Hub PG&E LOAD Capacity: 14 - 20 Bcf Withdrawal: 350 - 500 MMcfd Wheeler Ridge Hub Injection: 300 - 500 MMcfd Turns: 4 - 6 TEXAS & LOS ANGELES NEW MEXICO Interconnects with PG&E, SoCal and Kern River near Bakersfield, CA KERN RIVER PIPELINE EL PASO/TRANSWESTERN PG & E WHP WHP SOUTHERN CA GAS TRANSCANADA/ALLIANCE WESTERN HUB PROPERTIES LLC INNOVATORS IN NATURAL GAS

  2. 2 2

  3. High Performance Storage Traditional Storage Inventory Cycled 4 to 6 Inventory Cycled up times annually to 1.5 times annually Withdrawal: Withdrawal: 80 - 150 MMcf/d 300 - 500 MMcf/d 80 - 150 Days to Empty 24 – 40 Days to Empty 12,000 MMcf 12,000 MMcf Injection: Injection: 60 – 80 MMcf/d 200 - 400 MMcf/d 150 - 200 Days to Fill 30 – 60 Days to Fill

  4. Market Area Storage Allows Consumers to: • Purchase the optimal amount of firm transportation or use interruptible transportation to transport their gas. • Purchase gas at the best times and not when they consume the gas. • Increase reliability by having a “standby” supply available in the market area instead of in the producing basins. • Services include short and long term firm and interruptible storage service as well as monthly, weekly, daily and hourly parking and lending. WHP WHP WESTERN HUB PROPERTIES LLC INNOVATORS IN NATURAL GAS
