Welcome Application example Problem Solution - Time - Time - Safety - Safety The specialist for power distribution systems Low Low Inductance Inductance Comb Busbars Comb Busbars Multi- Multi -layer Busbars layer

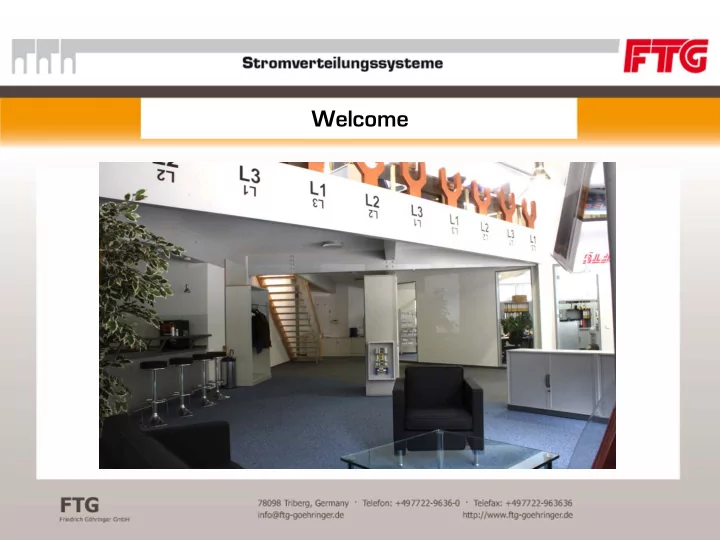

  1. Welcome

  2. Application example Problem Solution - Time - Time - Safety - Safety

  3. „ The specialist for power distribution systems“ Low Low Inductance Inductance Comb Busbars Comb Busbars Multi- Multi -layer Busbars layer Busbars Plugable Busbars Plugable Busbars AUXEL AUXEL FTG FTG SERAME SERAME Gondecourt Gondecourt Triberg Triberg Montpellier Montpellier France France Germany France Germany France All types of power distribution from one hand

  4. Facts Facts • 27 Years Experience of MCB Power Distribution Systems • A Member of AUXEL Group from 1980 • ISO Certified

  5. Development Division / Tool Manufacture Specialist Product Development: - - Electrical Parts Development Divison - Metal Working (Copper, Brass, etc) - Plastic Moulded & Extruded Parts Tool Manufacturing Our own Toolmaking Department with the most modern machines. Customized Product development begins here.

  6. Production • Large Vertical Manufacturing Range. • Order-Linked Manufacturing. • Fully Integrated Quality Control Within the Production Processes.

  7. ECB - Easy Connection Box • Available in Grey, Blue, Green & Blue. • 35mm DIN-Rail or Base-Mountable. • Plug-able connection: - 0.5mm² - 6.0mm² (single-wire) • Screw-able connection: - 1.5mm² - 25mm² (single-wire) • Plug-able connection: - 0.5mm² - 4.0mm² (multi-wire) • Screw-able connection: - 1.5mm² - 16mm² (multi-wire) • Protection Class: IP20

  8. Application Products Application Products Busbar Systems Wiring Systems Busbar Systems Wiring Systems Earthing / Earthing / VSM Easy VSM Easy Terminals Terminals Grounding Grounding

  9. Busbar Systems Busbar Systems • More than 3,500 different versions. • From 4 – 50 mm². • Open Extruded or Closed Moulded Design. • Busbars for the main Standards (IEC / UL / CSA) • Busbars for a range of applications: - • Breakers/Fuses • Neozed • Motor Protective Switches • Disconnectors

  10. Busbar Systems Busbar Systems

  11. Feeding Terminals Feeding Terminals Use when...... • The Circuit Breaker Terminals are too small. • Side Feeding is required Gangable 50mm² Terminals when Centre Feeding is required.

  12. Busbars for Motor Protective Switches Standard Series: Fully Moulded Insulation / Not to be Cut / In Accordance with UL For 2 / 3 / 4 / 5 Modules w/o Auxiliary Switch or with 1 or 2 1-Metre Lengths: Open Insulation (as in the Standard Busbar) May be Cut For up to 22 Modules w/o Auxiliary Switch or with 1 or 2 Busbar Suitable for End or Centre-Feeding

  13. VSM Easy Wiring Systems - Motor Starter Combinations Wiring System for Switches - Fully Insulated Design Wiring System for: - Reversing Star-Delta Parallel up to 40A - Fully Insulated Design Parallel up to 63A EV up to 8 x 3 Modules 63A Fully Insulated Design 5 x 3 Modules Parallel Wiring For Parallel Wiring For Motor Contactor 802PV13 Motor Contactor 802PV13

  14. VSM Easy Wiring Systems – Motor Starter Combination Starter Combinations Consisting of: Wiring Systems for Switch Adapter Plates Connection Module

  15. Bow Terminals / Busbar Covers • 16 – 185 mm² (full product range) • For all 5mm or 10mm thick Copper Bars • No Swivelling with 12mm Copper Bar Other Bow & Connection Terminals Available • 12mm / 20mm / 30mm Copper Bar Covers • 20mm / 30mm - Temperature Resistant up to 110°C • Printed Versions Available

  16. Busbar for Fuse-Switch Disconnector Criteria: • For Fuse-Switch Disconnect, size 00 and 000 • Busbars with large cross sections up to 250A • 3-pole x 95mm² possible • Busbars available as 1-metre Length or Module Design • Special / Customised Versions possible • Installation Time saving about 50% • Space saving about 10%

  17. UL508 Busbar Suitable for: - • MCB Supplementary Protectors according to UL1077 • Modular Fuse Holders according to UL512 • 1, 2 & 3-Phase Version Available • Available with Auxiliary Switch Spaces • 80A/100A End-Fed as well as 160/200A Centre-Fed • Terminals & Spare Contact Protection Caps Available • 1-Metre Length Busbars may be cut to required length • Busbar Ends need to be insulated with Plastic Caps

  18. Busbar for UL 489 Suitable for: - • MCB Branch Circuit Protectors according to UL489 • 1, 2 & 3-Phase Version Available • Gang-able System • Approved for 80A End Feed • Terminals & Spare Contact Protection Caps Available • Busbars may not be cut!

  19. Cable Leads New: - Ultrasonic Compressed Cable Ends (instead of ferrules) Advantages: - • For the same CSA the O/D of the Cable End is smaller • Reduction in actual connection Impedance

  20. Accessories BA 220 easy to break inflammable high fitting accuracy BA 1000 Easy Cover

  21. FTG - The MCB Power Distribution Specialists

  22. FTG-Goehringer GmbH
