WELCOME/ SKY ENERGY(LUOYANG) CO.,LTD Organizational Structure China Airborne Missile Academy CAMA M & C Electronics Electro- Realty Sky Co. Co. mechanic Co. Energy MAIN FACTS & FIGURES - SKY ENERGY

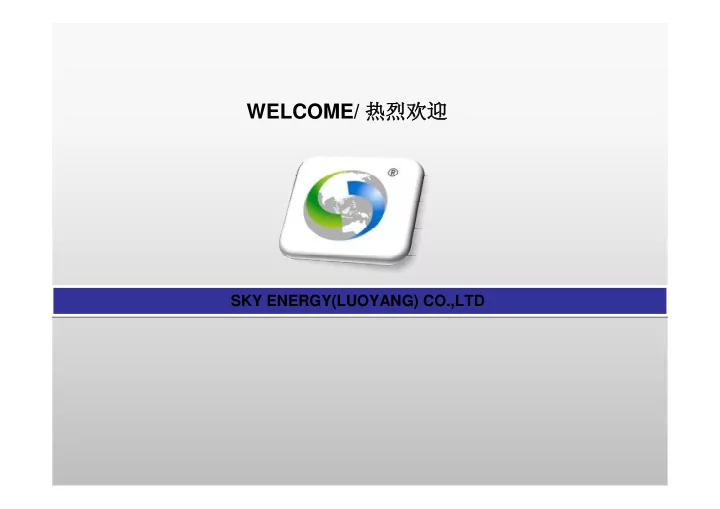

  1. WELCOME/ 热烈欢迎 烈欢迎 SKY ENERGY(LUOYANG) CO.,LTD

  2. Organizational Structure China Airborne Missile Academy CAMA M & C Electronics Electro- Realty Sky Co. Co. mechanic Co. Energy

  3. MAIN FACTS & FIGURES - SKY ENERGY 120,Million Equipment: 4280 sets Construction: 162,690 square meters Plant: 550 mu Employees: 310 500,Million 120,Million

  4. MAIN FACTS & FIGURES - SKY ENERGY 120,Million 500,Million 1000 Milo. RMB invested to the Construction 120,Million

  5. MAIN FACTS & FIGURES - SKY ENERGY 500,Million 120,Million

  6. SKY ENERGY ORGANIZATIONAL STRUCTURE Our Mission – Create a green global

  7. SKY ENERGY PRODUCTS 40AH 70AH 100AH 180AH 330AH 450AH Block Building 180AH 450AH 900AH 9000AHA

  8. Battery Management System Charger Monitor BMS

  9. PRODUCTION ADVANTAGE Comparison of Lead Acid battery and Lithium-ion battery

  10. Applications Applications models specifications SE450AHA 、 288V 、 100KW Semi EV SE330AHA SE200AHA 、 144V 、 20KW SE180AHA 、 Functional EV SE100AHA SE100AHA 、 48V 、 4KW Mini EV SE70AHA SE100AHA 、 Solar, wind 12V 、 100KW SE70AHA 、 Energy Storage SE450AHA SE900AHA 、 220V 、 500KW Start-up Power SE450AHA

  11. Charge/Discharge Chart ( 180AHA ) Charge/discharge &cycle performance testing Model : SE180AHA Nominal capacity : 180Ah 1C charge/discharge dimensions : 182 × 71 × 285 (mm) Weight : 5.5kg ± 100g Operation Voltage : 3.2V Cycle Performance ratio : 105Wh/kg Cycle life ( 80 % DOD ): >2000 次 Self-discharge ( monthly ): <3% Standard charging current : 0.3CA Max discharge current : continuous Pulse Current 960A current <4CA; impulse current<12CA

  12. Charge/Discharge Chart ( 450AHA ) Model : SE450AHA Nominal capacity : 450Ah Dimensions : 452 × 71 × 288 (mm) Weight : 13kg ± 150g Operation voltage : 3.2V Performance ratio : 110Wh/kg Charge/discharge chart ( 0.1C ) Cycle life ( 80 % DOD ): >2000 次 Self-discharge ( monthly ) : <3% Standard charge current : 0.3C (A) Max discharge current : continuous current <4CA; Impulse current<12CA

  13. Manufacturing Support Sky Energy Coating CMOS chip Filling Formality

  14. Manufacturing Support Sorting &Testing Process

  15. Marketing Analysis HEV Solar 、 UPS E-taxi Energy Storage Target Market Military Base E-Bus Mini-EV Start-up Power Functional Vehicles

  16. Global Potential Market Overview

  17. APPLICATIONS

  18. Applications CAB City Bus EV Race Car Motorcycle Electrical Heavy-duty Vehicle

  19. Solution One: Pure Electric Bus l 140cell, 450Ah batteries Max speed : 60km/h l Mile per charge : 250km l Max grabble rate : 18% l Speed acceleration : l ≦ 20s ( 0 — 50km/h ) l Operating voltage : 460v l Motor Power : 100kw l Motor model : BS100- l 2800/460 Load : 4200kg l Charging : 3.5 hours l 正在与洛阳市政府合作开发电动公交车项目 正在与洛阳市政府合 电动公交车项目 Luoyang city bus collaboration program with government

  20. Hybrid/Pure Electric Bus 1. ground charger 2. battery & BMS 3. Power Train 4. Motor 5. gear box 6. electronic air-conditioner 7. 24V DC/DC 8. AC power 9. steering integration 10. Air-compress integration

  21. Light-duty Electric Vehicle � 45 cells180Ah � Max speed : 120km/h � Mile per charge : 180km � Max grabble rate : 20% � Speed accelerate : 10s (0--- 80km/h) � Operating voltage : 144v � Motor power : 7kw � Load : 500kg � Charging : 3.5 hours

  22. Mini Electric Vehicle 1. 65cells 100Ah Max speed : 80km/h 2. Mile per charge : 320km 3. Max grabble rate : 20% 4. Speed acceleration: 10s ( 0---80km/h) 5. Operating voltage : 144v 6. Motor power : 7.5kw 7. Load : 450kg 8. Charging : 3.5 hours 9.

  23. Electric Family Sedan 1. 65 cells 180Ah Max speed : 118km/h 2. Mileage per charge : 340km 3. Grabble rate : 20% 4. Speed acceleration : 10s ( 0---100km/h) 5. Operating Voltage : 280v 6. Motor power : 20kw 7. Load : 300kg 8. Charging span : 3.5 hours 9. 与郑州现代电动车研究院合作的电动轿车

  24. Electric Vehicle • Customer: A Beijing Company • Program : Power Supply • Product : SE180AHA • Application: 2008 Beijing Olympic

  25. Electric Vehicle • Customer : Shanghai Ruihua Group • Program : EV Power • Product : SE180AHA SE450AHA • Marketing goal : Shanghai World Exhibition in 2010

  26. Electric Vehicle Customer : Finland Sanifer minicar 1. Program : EV Power 2. Product : 48V SE180AHA 3. Target Market : Europe and North America 4.

  27. Stand-by Power • Customer: China Aerospace technology group • Program : Standby power • Product : SE180AHA

  28. Stand-by Power • Customer : China Weapon Industry Group • Program : Spare Power • Product : SE180AHA

  29. Solution Two: Railroad Locomotive Lifter Brake E-train Illumination Communication Battery Box

  30. Solution Three: Military Applications Start-up power offers instant high energy

  31. SAFETY CONCERN DESIGN

  32. IPR 12 Battery Design 2 Process Technology 4 Battery Manufacturing 3 Battery Accessories 3

  33. Singular Battery Safety Testing 针 挤 刺 No explosion and No explosion 压 burning in 5 and burning minutes in 9 minutes 短 过 No explosion 路 No explosion 充 and burning and burning in 30 in 10 minutes minutes

  34. Group Battery Safety Testing 挤 No explosion 压 针 No explosion 刺 and burning and burning in 9 minutes in 5 minutes

  35. Safety Testing Pass National 863 Plan Standard Safety Testing

  36. Quality Control • ISO9001 Quality Certificate

  37. CE Certification

  38. Before and After-sales Services Pre-sales : • Providing comprehensive technology consulting • Providing battery accessories sales services • Proving agent service In the sales : • 24 hours 7 days technology services • Product instruction; feedbacks and suggestions collection • Organizing the professional training on management, equipment maintain, quality control, purchasing, marketing and customers services Post-sales: • Installation and adjustment • 24 hours technology customer services • Establishing customer data base, periodically feedback requiring and maintenance service. Meet the customer ’ s needs via overall improvement

  39. Technology Support Flow Chart Communication Program Applying After-sales Services Confirmation Product Development Testing/installation

  40. Specifications Requirement • Technology communication with customers

  41. Estimated Marketing Status in 2010 15% 15% 10.4% 10.4% Domestic: Domestic Military: E-bus, Mini EV, EV Carrier, marine spare power 5.4% 5.4% 1 6 % 1 5 % 国 内 电 动 车 市 场 车 市 场 Domestic: 国 内 军 用 市 场 市 场 Solar, wind, Energy Storage 国 内 储 能 市 场 市 场 1 2 % 1 0 . 4 0 % 国 外 欧 洲 市 场 市 场 8 % 6% 6% 6 % 5 . 4 0 % Global Market 4 % EV 0 % 国内电动车市场 内电动车市场 国内军用市场 国内 用市场 国内储能市场 储能市场 国外欧洲市场 外欧洲市场

  42. www.skyenergy.com.cn
