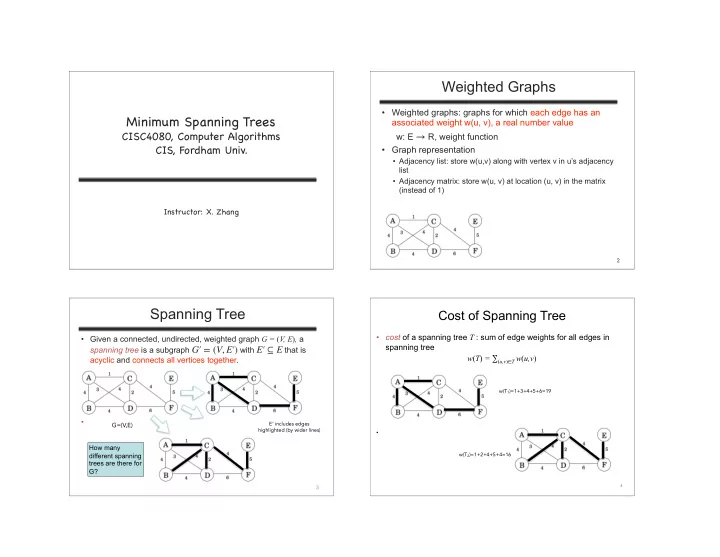

Minimum Spanning Trees

CISC4080, Computer Algorithms CIS, Fordham Univ.

Instructor: X. Zhang

Weighted Graphs

• Weighted graphs: graphs for which each edge has an

associated weight w(u, v), a real number value w: E R, weight function

• Graph representation
• Adjacency list: store w(u,v) along with vertex v in u’s adjacency

list

• Adjacency matrix: store w(u, v) at location (u, v) in the matrix

(instead of 1)

→

2

Spanning Tree

• Given a connected, undirected, weighted graph G = (V, E), a

spanning tree is a subgraph with that is acyclic and connects all vertices together.

• G′ = (V, E′

) E′ ⊆ E

3

G=(V,E) How many different spanning trees are there for G?

E’ includes edges highlighted (by wider lines)

Cost of Spanning Tree

• cost of a spanning tree T : sum of edge weights for all edges in

spanning tree w(T) = ∑(u,v)∈T w(u,v)

• 4

w(T1)=1+3+4+5+6=19 w(T2)=1+2+4+5+4=16

Cost of Spanning Tree

• A minimum spanning tree (MST) is a spanning tree of minimum

cost.

• For a given G, there might be multiple MSTs (all with same cost)

5

w(T2)=1+2+4+5+4=16 This spanning tree has cost lower than or equal to any other spanning tree of G. G

• Can you come up another MST for G?

Problem: Finding MST

• Given: Connected, undirected, weighted graph, G
• Find: Minimum spanning tree, T

Such problems are optimization problems: there are multiple viable solutions (here, spanning trees), we want to find best (lowest cost, best perf) one. Applications:

– Communication networks – Circuit design – Layout of highway systems

Acyclic subset of edges(E) that connects all vertices of G.

6

Greedy Algorithms

• A problem solving strategy
• other strategies: brute force, divide and conquer,

randomization, dynamic programming, …

• Greedy algorithms/strategies for solving optimization

problem

• build up a solution step by step
• (local optimization) in each step always choose the option that offers

best immediate benefits (a myopic approach)

• not worrying about global optimization…
• Performance of greedy algorithms:
• Sometimes yield optimal solution, sometimes yield

suboptimal (i.e., not optimal)

• Sometimes: we can bound difference from optimal…

7

MST: Pick edge with lowest cost

8

Step 2 Step 1 Step 3.1 Adding eA,D will introduce cycle, so go to next one… Step 3.2 Add EA,B Step 4 Add EA,B Step 5 Add EA,B

Minimum Spanning Trees

// G=(V,E) is connected, undirected, weighted // return Te: a subset of E that forms MST MST (V,E): N = |V| // # of nodes Te={ } // set of tree edge Order E by weights //spanning tree needs N-1 edges

for i=1 to N-1

find next lightest edge, e (next element in E) if adding e into the tree does not introduce cycle add e into Te return Te => This is Kruskal’s algorithm

9

Kruskal’s Algorithm

Implementation detail: * Maintain sets of nodes that are connected by tree edges * find(u): return the set that u belongs to * find(u)=find(v) means u, v belongs to same group (i.e., u and v are already connected)

Kruskal algorithm for MST

// G=(V,E) is connected, undirected, weighted // return Te: a subset of E that forms MST

MST (V,E): N = |V| // # of nodes Te={ } // set of tree edge Order E by weights //spanning tree needs N-1 edges for i=1 to N-1 find next lightest edge, e (next element in E) if adding e into the tree does not introduce cycle add e into Te return Te

Add one edge in each step: need to check for cycle Prim algorithm: grow the tree from one node, in each step, connect one more node into the tree.

11

// G=(V,E) is connected, undirected, weighted

// return Et: set of tree edges in MST MST_Prim (V,E):

• 1. N = |V| // # of nodes
• 2. Q = empty priority queue of nodes

3.

• 4. //start from a random node s
• 5. s

a node from V

• 6. cost[s] = 0; Q.enqueue (s)
• 7. Vt = {s}

8.

• 9. //initialize all other nodes
• 10. for each none u in V-Vt,
• 11. cost[u] = w(u,s) if (u,s)

E

• 12. =

if (u,s)

• 13. prev[u] = s if (u,s)
• 14. Q. enqueue (u)

15. 16.

← ∈ ∞ ∉ E ∈ E

Prim algorithm for MST

12

• 17. Repeat for N times
• 18. //add lowest cost node to tree
• 19. u = Q.dequeue()
• 20. add u to Vt
• 21. add edge (prev[u], u) into Et

22.

• 23. //update all other nodes cost
• 24. for each node v in V-Vt
• 25. if w(u,v) < cost[v]
• 26. cost[v] = w(u,v)
• 27. prev[v] = u
• 28. end of Repeat loop

29. 30.return Et

Prim Algorithm for MST:

start from a node

13

Step 1: pick node D (an arbitrary node)

cost=2 prev=D cost=4 prev=D cost=3 prev=D cost=6 prev=D cost=inf

cost[u]: current cost of connect u to the tree prev[u]: connect to which node in the tree // init cost, pred for each none tree node u, cost[u] = w(u,D) if (u,D) is an edge = inf if (u,D) is not an edge

Currently, min cost to connect F to the tree is 6, via connecting to D

Prim Algorithm for MST:

Connect a node with lowest cost

14

Step 2 to N: grow the tree to connect a node with lowest cost

cost=2 prev=D cost=4 prev=D cost=3 prev=D cost=6 prev=D cost=inf cost=1 prev=C cost=4 prev=D cost=4 prev=C cost=inf cost=2 prev=D Currently, min cost to connect F to the tree is 6, via connecting to D Currently, min cost to connect F to the tree is 4, via connecting to C

u = node with lowest cost to connect to tree add edge (pred(u), u) into tree //update cost and prev all each none tree node v: if w(v,u)<cost[v] cost[v]=w(v,u) prev[v]=u

Prim Algorithm:

Implementation

15

Step 2 to N: grow the tree to connect a node with lowest cost

u <- the node with lowest cost add edge (pred(u), u) into tree //update cost and prev all each none tree node v: if w(v,u)<cost[v] cost[v]=w(v,u) prev[v]=u

cost=1 prev=C cost=4 prev=D cost=4 prev=C cost=inf cost=2 prev=D Add A and (A,C) into the tree, no updates …

Discussion: How to quickly find the node with lowest cost? Recall the cost of nodes will be updated … Priority queue implemented using heap

Summary

• Minimal Spanning Tree Problem
• application: finding the lowest cost way to connect a set of

nodes

• an example of optimization problem
• Greedy algorithm
• myopic, choose what’s looks to be the best option at current

step.

• sometimes lead to optimal solution, sometimes not
• Two MST algorithms
• Kruscal: grow the tree by adding one edge a time (choose the

edge with lowest weight and does not introduce cycle)

• Prim: grow the tree by adding one node a time, choosing the

node with lowest cost to connect to current (sub)-tree

16
