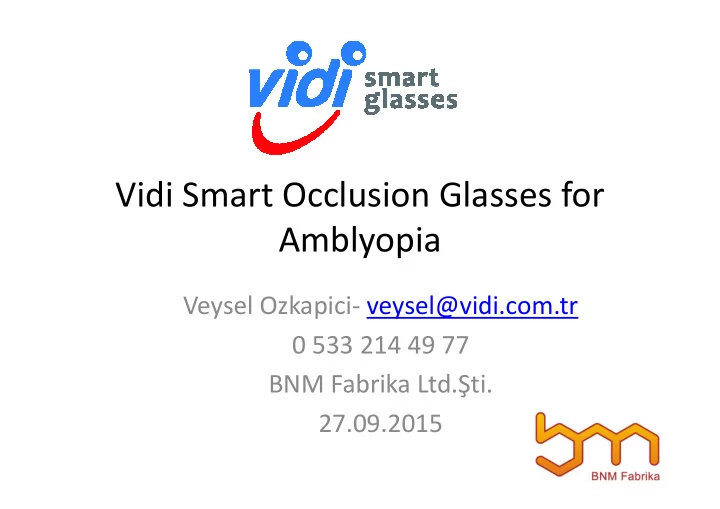

Vidi Smart Occlusion Glasses for Amblyopia Veysel Ozkapici- veysel@vidi.com.tr 0 533 214 49 77 BNM Fabrika Ltd.Şti. 27.09.2015
Content • 28 Slides, 10 Minutes approximately • Amblyopia on Children • Vidi Smart Occlusion Glasses • Technical Adventegous • Comments and Feedback • Company
Amblyopia (Lazy Eye) ? • Early diagnosis is important • Sight is improve with child • Most effective treatment for Amblyopia is OCCLUSION • Most used Occlusion method EYE PATCHING • Eye Patch = Unhappy Child ... Treatment will be tough for family and child
Ratio of Amblyopia on Children ? • %2 - %4 very high ratio • It is best to treat till 6 years old, till 9 years old treatment is possible • 68.033/ this is the official number of Child which is diagnosed as Amblyopia on Turkey during 2008-2013 at MoH , Source MoH Turkey • 1.300.000 / number of birth in Turkey at 2013 and population is 76 Million for Turkey, You could Project to your country • Market is HUGE
LC shutter for Lazy Eye (Electronic Occlusion Method) Idea to use LC for Amblyopia came from USA and Japan at 1993 At 2012 a commercial company make first clinical trials and publish that VA (Visual Acuity) is improved significantly in a period of 9 month usage Vidi became reality after this progress and design our own solution. We created best efficient and smart solution for Amblyopia Occlusion treatment for world.
Advantageous of Electronic (LC) Occlusion ADAPTATION is High, Children are Cooperative and Families are happy Eye tear circulation is continue (not like eye-patching) eye temperature is normal and safe Not any allergy around the eye due to Eye patch No need to fight or force little child to wear unwanted patched There is real problem at the field and we have a nice solution to family have trouble with Amblyopia
Working Principle ? • Dominant eye will Intermittently OCCLUDE via Vidi Electronic Glasses and Lazy side of eye will work more. Same principle to Eye patch but more effective way Both Eyesight OPEN Chosen Eyesight CLOSE/DARK or Occluded Simple and Efficient, Intermittently Occlude Strong Eye
How To use ? Not any special requirement when it use. Use as a regular glasses how to use
How long time it should be used ? • Usage TIME should absolutely define by a doctor specific to child, how many hour or day they will use it As a producer we suggest to use as long as possible to make faster improvement. Suggested, it should be minimum double time used as regular eye patching time use to get same efficiency
Can it be used together with regular prescription glasses? Can it be used together with regular prescription glasses? Suggested, it should be minimum double time used as regular eye patching time use to get same efficiency
Vidi Technical Properties? Smart Electronic Efficient Light Design Size : L120 x W130 XH40mm Weight : 32,2 gram Prescription Frame W. : 2,1 gram Nose Pad Weight : 1,8 gram Lens Type : Double Layer LCD Battery Type : Li-ion Polymer 3,7 V Battery Life : Approximately 3 days Charging time : 2 hours Current : 200 +/- 30 micro amperes
Vidi Glasses SUPERIOR Properties?
Vidi Glasses SUPERIOR Properties.. 1. Occlusion Homogeneity 2. Effective Occlusion (Or Blockage) 3. Smart/Automatic Occlusion Time Increase 4. Pulsed Mode Driver System 5. Mirror Coating 6. Light Design 7. Different Colors Option 8. User Friendly 9. Simple Left Right Selection 10.ON / OFF Button 11.Mode Option 12.Solid Software 13.Warning LEDs with 2 colors 14.Micropocessor Control 15.Internal Memory 16.Reliable Production and Design
1. Occlusion Homogeneity
1. Occlusion Homogeneity
2. Effective OCCLUSION (Or Blockage) Thanks to Vidi Special double LCD and Driver design, We are able to BLOCK or OCCLUDE % 99,7 of Visible Spectrum of Light
2. Effective OCCLUSION (Or Blockage)
3. Smart/Automatic Occlusion Time Increase Occlusion time is increases automatically by time of used. This will increase the Adaptation of Child to Electronic Occlusion and Vidi This timing could be chosen with MODE button whenever they want also. Simple and Efficient
4. Pulsed Mode Driver System With this PULSED Mode driver System Vidi Smart Glasses are DARK as same in first second when its OCCLUDED
5. Mirror Coating Child do not want take negative attention with DARK and CLEAR LC Screen We coated with Mirror like stuff and from outside not easy to see DARK or Clear
6. Light Design It is really important to have a light weight design on these ages when child nose structure is develop. 32,2 Gram Each additional GRAM is important and Heavy
7. Different Colors Option We give option to child chose. This is important for them
8. User Friendly Easy to use on daily base and activities .
9. Simple LEFT/RIGHT selection With one button you can chose which eye to Occlude In some case both eye should make exercise. 10. ON / OFF Button 11. MODE Option You can chose OCCLUSION rate with single button by yourself
12. Solid Software All device and signals are controlled by a solid software Software will help us for service and updates on Vidi Validated Robust Software control. 13. Warning LED with 2 Colours Visual Signals when Necessary Open/Close/Charging Battery Low, MODE Number… You can get Visual signal for all off them by LED
14. Microprocessor Controlled 15. Internal Memory
16. RELIABLE PRODUCTİON AND DESIGN
About US BNM FABRİKA started at 2009 with R&D projects and It has achieved to produce first Corneal Cross Link Device on market with real time optical feedback and had lots of experience in ophthalmology field. BNM Fabrika supported for its RD project by Most reputable Government organization at Turkey (TUBİTAK). Still working on projects especially on ophthalmology field Veysel Özkapıcı 1998 Ankara U BSc Electronic Eng.2006 Technical U. of Denmark DTU MSc. at Micro and Nano Electronics(with a scholarship from Danish Govt.)Work Experience at Zeiss, Shimadzu, Abbott, Allergan and TUBİTAK
Thanks for your attention for question and feedback info@vidi.com.tr
