Vetrocom Bouzludja Vetrocom Bouzludja Construction site altitude - PowerPoint PPT Presentation

Jun 01, 2023 •330 likes •547 views

Vetrocom Bouzludja Vetrocom Bouzludja Construction site altitude 1 490 meters Total capacity of installed power: 72,5 MW 20 wind turbine generators by 2,5MW in 2009 9 wind turbine generators by 2,5MW in 2011 Vetrocom

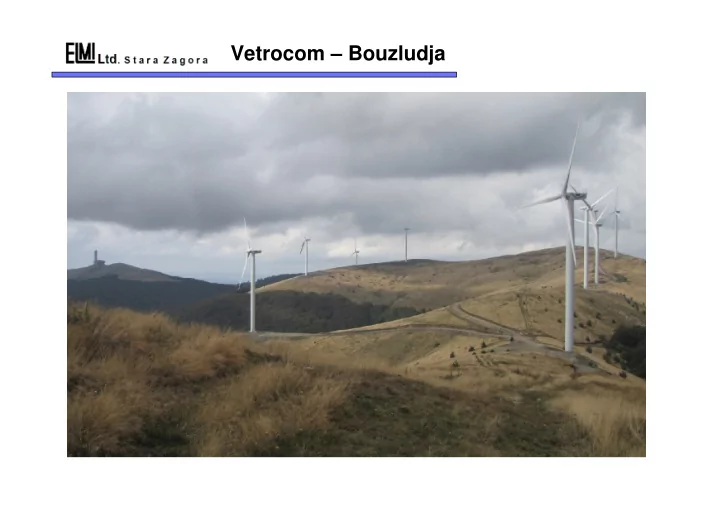

  1. Vetrocom – Bouzludja

  2. Vetrocom – Bouzludja Construction site altitude – 1 490 meters Total capacity of installed power: 72,5 MW 20 wind turbine generators by 2,5MW –in 2009 9 wind turbine generators by 2,5MW – in 2011

  3. Vetrocom – Bouzludja The making of the cuttings for the cable route 110 кV.

  4. Vetrocom – Bouzludja Construction of an external connection of 110 kV to the grid – 9 000 m Excavation by using a trencher VERMER T 755 Powered by 186 kW CAT engine, weight 30 t., excavation depth 3 meters, excavation width 360-610 mm.

  5. Vetrocom – Bouzludja Construction of an external connection of 110 kV to the grid – 9 000 m Excavation by using a trencher VERMER T 755 Powered by 186 kW CAT engine, weight 30 t., excavation depth 3 meters, excavation width 360-610 mm.

  6. Vetrocom – Bouzludja Construction of an external connection of 110 kV to the grid – 9 000 m. The laying of a cable type AXLJ 1x400/40

  7. Vetrocom – Bouzludja Construction of an external connection of 110 kV to the grid – 9 000 m. The laying of a cable type AXLJ 1x400/40

  8. Vetrocom – Bouzludja Construction of an external connection of 110 kV to the grid – 9 000 m. The laying of a cable type AXLJ 1x400/40

  9. Vetrocom – Bouzludja Construction of an optical cable network – 38 km., and 20kv internal cable network - 42 km.

  10. Vetrocom – Bouzludja Construction of an optical cable network – 38 km., and 20kv internal cable network - 42 km.

  11. Vetrocom – Bouzludja Construction of roads between the wind turbines – 22 km

  12. Vetrocom – Bouzludja Construction of roads between the wind turbines – 22 km

  13. Vetrocom – Bouzludja Construction of crane plots and compounds for the foundations – 29

  14. Vetrocom – Bouzludja Construction of crane plots and compounds for the foundations – 29

  15. Vetrocom – Bouzludja Construction of roads and crane plots – machinery used: HARTL PC 1270 Loader DOOSAN DL 400 NLC bucket capacity 4,7 m 3 , weight 24 tons Mobile Impact Crusher

  16. Vetrocom – Bouzludja Construction of roads and crane plots – machinery used: RAMMER BOMAG BW 213 D-4 Grader NEW HOLLAND F156,6 weight 13 tons 118 kW, Dimensions 10044х2550х3772

  17. Vetrocom – Bouzludja Construction of roads and crane plots – machinery used: Excavator DOOSAN DX 340 NLC KOMATSU PC 450 LC-8 bucket 2.8 m 3 , weight – 49 tons bucket 1.48 m 3 , weight 35 tons

  18. Vetrocom – Bouzludja Construction of roads and crane plots – machinery used: Bulldozer KOMATSU D 155 АХ 6 Bulldozer KAMATSU D 65 EX weight 40 tons Bulldozer SHANTUI CD 32 W weight 22 tons, 2 machines weight 41 tons

  19. Vetrocom – Bouzludja Construction of roads and crane plots – machinery used: Hydraulic hammer

  20. Vetrocom – Bouzludja Mini machinery

  21. Vetrocom – Bouzludja Construction of foundations – 29 1 450 tons of reinforcement, 11 220 m 3 of concrete
